Conceived for industrial heavy duty applications that require enhanced cooling performance and advanced ingress protection, the NF-F12 industrialPPC (Protected Performance Cooling) is a ruggedised high-speed version of the award-winning retail model. Thanks to the outstanding aerodynamic efficiency of the NF-F12 design and the use of a novel three-phase motor, the industrialPPC version provides superior airflow and pressure capacity while keeping noise levels and power consumption moderate as against comparable high-speed fans. While its fibre-glass reinforced polyamide construction and certified water and dust protection make the NF-F12 industrialPPC suitable for operation in challenging environments, the renowned SSO2 bearing technology guarantees an MTTF of over 150.000hrs. Topped off with Noctua’s trusted reliability and 6 years manufacturer’s warranty, the NF-F12 industrialPPC is an ideal choice for highly demanding applications that require superior flow rates and ultimate dependability.
- Heavy duty cooling fan, 120x120x25 mm, 12V, 4-pin PWM, max. 2000 RPM, max. 29.7 dB(A), >150,000 h MTTF
- Award-winning 120x25mm fan with Focused Flow frame for high static pressure and superior cooling efficiency
- 12V 2000rpm model (29.7dB) with 4-pin PWM connector for automatic speed control via 4-pin PWM fan headers, broad 450-2000rpm speed range
- High-speed industrialPPC version for industrial heavy-duty applications that require extreme cooling performance and advanced ingress protection

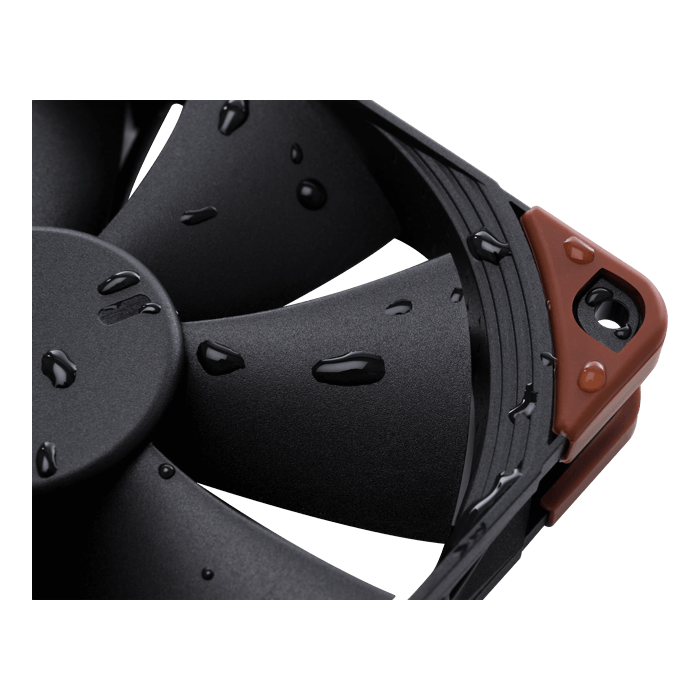

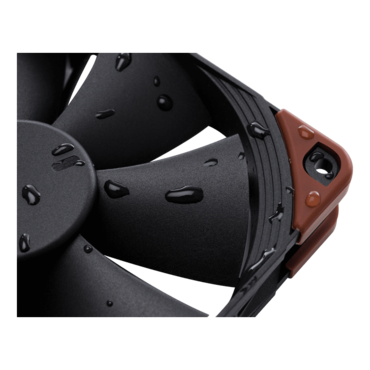

- Ruggedised fibre-glass reinforced polyamide construction and IP52 certified water and dust protection
| FAN Specification | |
| Size | 120x120x25 mm |
| Mounting hole spacing | 105x105 mm |
| Connector & pin-configuration | 4-pin PWM |
| Cable length | 40cm |
| Bearing | SSO2 |
| Blade geometry | Heptaperf™ |
| Frame technology | FocusedFlow™ |
| Material | Fibre-glass reinforced polyamide |
| Ingress protection | IP52 |
| Motor type | Three-phase |
| Rotational speed (+/- 10%) | 2000 RPM |
| Min. rotational speed (PWM, +/-20%) | 450 RPM |
| Airflow | 121,8 m³/h |
| Acoustical noise | 29,7 dB(A) |
| Static pressure | 3,94 mm H2O |
| Max. input power | 1,2 W |
| Max. input current | 0,1 A |
| Operating voltage | 12 V |
| MTTF | > 150.000 h |
| Scope of delivery |
|
| Warranty | 6 years |
