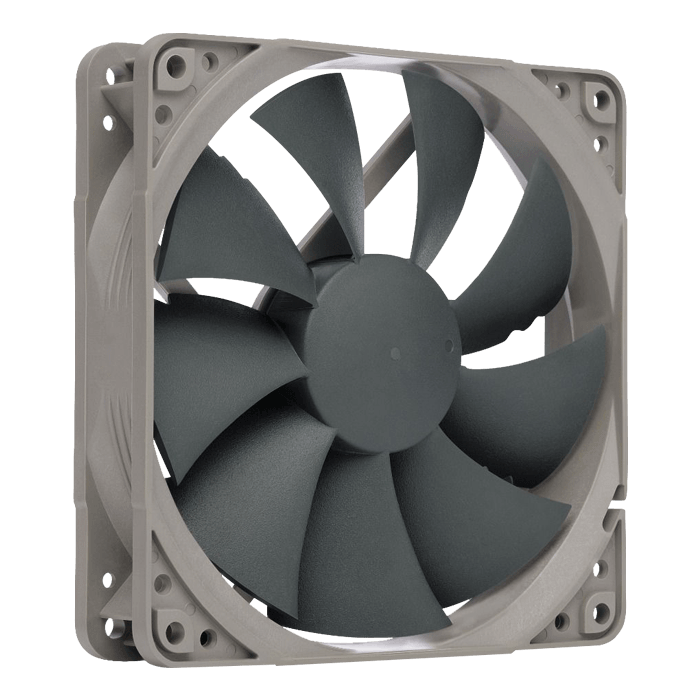

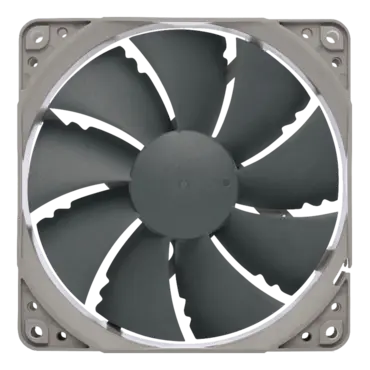

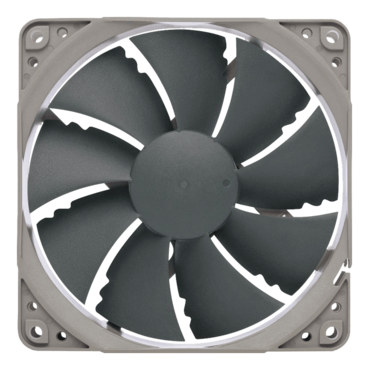

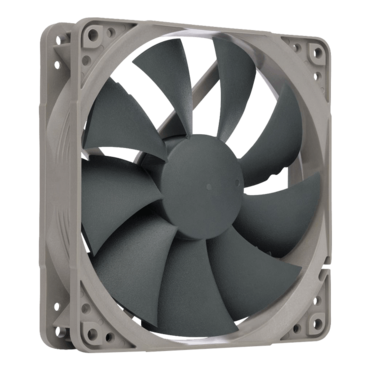

NF-P12 redux-1300 PWM 120mm, 1300 RPM, 54.3 CFM, 19.8 dBA, Cooling Fan

Quantity:
  • SKU: 14440459
  • Manufacturer: NOCTUA
  • MPN: NF-P12 redux-1300 PWM
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$25.09
Quantity:
NF-P12 redux-1300 PWM 120mm, 1300 RPM, 54.3 CFM, 19.8 dBA, Cooling Fan

Specifically designed for pressure demanding applications such as CPU or radiator cooling, the classic NF-P12 is a long-standing favourite among enthusiast users around the world and helped to found Noctua’s reputation as a top-tier manufacturer of premium quality quiet cooling components. The new redux edition reissues this award-winning model in a streamlined, accessibly priced package that has been reduced to the essential core: the NF-P12 premium fan. Its industry grade SSO bearing, over 150.000 hours MTTF rating and full 6 years manufacturer’s warranty make the NF-P12 redux a proven premium choice that provides trusted Noctua quality at an attractive price point. The 1300rpm PWM version features Noctua’s proprietary NE-FD1 PWM IC for automatic speed control, which allows to strike a perfect balance between high cooling capacity and low noise operation in each given situation.

  • Quiet fan, 120x120x25 mm, 12V, 4-pin PWM, max. 1300 RPM, max. 19.8 dB(A), >150,000 h MTTF
  • Renowned NF-P12 high-end 120x25mm 12V fan, more than 100 awards and recommendations from international computer hardware websites and magazines, hundreds of thousands of satisfied users
  • Pressure-optimised blade design with outstanding quietness of operation: high static pressure and strong CFM for air-based CPU coolers, water cooling radiators or low-noise chassis ventilation
  • 1300rpm 4-pin PWM version with excellent balance of performance and quietness, supports automatic motherboard speed control (powerful airflow when required, virtually silent at idle)
  • Streamlined redux edition: proven Noctua quality at an attractive price point, wide range of optional accessories (anti-vibration mounts, S-ATA adaptors, y-splitters, extension cables, etc.)
FAN Specification
Size 120x120x25 mm
Mounting hole spacing 105x105 mm
Connector & pin-configuration 4-pin PWM
Cable length 40cm
Bearing SSO-Bearing

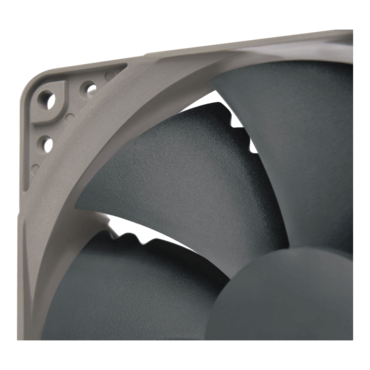

Blade geometry Pressure-optimized Nine Blade Design with Vortex-Control Notches
Rotational speed (+/- 10%) 1300 RPM
Min. rotational speed (PWM, +/-20%) 300 RPM
Airflow 92,3 m³/h
Acoustical noise 19,8 dB(A)
Static pressure 1,68 mm H2O
Max. input power 0,6 W
Max. input current 0,05 A
Operating voltage 12 V
MTTF > 150.000 h
Scope of delivery
  • Fan screws
Warranty 6 years
