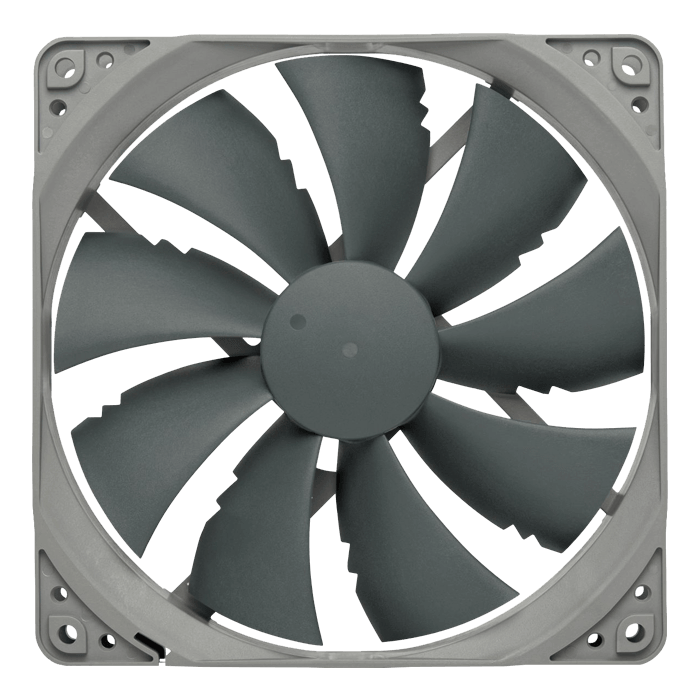

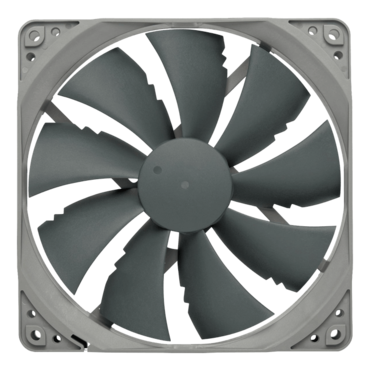

NF-P14s redux-1200 PWM 140mm, 1200 RPM, 64.9 CFM, 19.6 dBA, Cooling Fan

Quantity:
  • SKU: 14431215
  • Manufacturer: NOCTUA
  • MPN: NF-P14s redux-1200 PWM
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$27.54
Quantity:
NF-P14s redux-1200 PWM 140mm, 1200 RPM, 64.9 CFM, 19.6 dBA, Cooling Fan

Now available in a square frame version called NF-P14s (s for square frame) that lends itself to use in case and radiator cooling, the classic NF-P14 is a long-standing favourite among enthusiast users around the world and helped to found Noctua’s reputation as a top-tier manufacturer of premium quality quiet cooling components. The new redux edition reissues this award-winning model in a streamlined, accessibly priced package that has been reduced to the essential core: the NF-P14 premium fan. Its industry grade SSO-Bearing bearing, over 150.000 hours MTTF rating and full 6 years manufacturer’s warranty make the NF-P14 redux a proven premium choice that provides trusted Noctua quality at an attractive price point. The 1200rpm PWM version features Noctua’s proprietary NE-FD1 for automatic speed control, which allows to strike a perfect balance between high cooling capacity and low noise operation in each given situation.

  • Quiet fan, 140x140x25 mm, 12V, 4-pin PWM, max. 1200 RPM, max. 19.6 dB(A), >150,000 h MTTF
  • Renowned NF-P14s high-end 140x25mm 12V fan, more than 100 awards and recommendations from international computer hardware websites and magazines, hundreds of thousands of satisfied users
  • Highly optimised low-noise design provides outstanding quietness of operation, excellent static pressure and strong airflow (CFM), square frame for water cooling radiators and chassis ventilation
  • 1200rpm 4-pin PWM version with excellent balance of performance and quietness, supports automatic motherboard speed control (powerful airflow when required, virtually silent at idle)
  • Streamlined redux edition: proven Noctua quality at an attractive price point, wide range of optional accessories (anti-vibration mounts, S-ATA adaptors, y-splitters, extension cables, etc.)
FAN Specification
Size 140x140x25 mm
Mounting hole spacing 124,5x124,5 mm
Connector & pin-configuration 4-pin PWM
Cable length 40cm
Bearing SSO-Bearing
Rotational speed (+/- 10%) 1200 RPM
Min. rotational speed (PWM, +/-20%) 350 RPM
Airflow 110,3 m³/h
Acoustical noise 19,6 dB(A)
Static pressure 1,29 mm H2O
Max. input power 0,96 W
Max. input current 0,08 A
Operating voltage 12 V
MTTF > 150.000 h
Scope of delivery
  • Fan
  • 4 Fan Screws
Warranty 6 years
