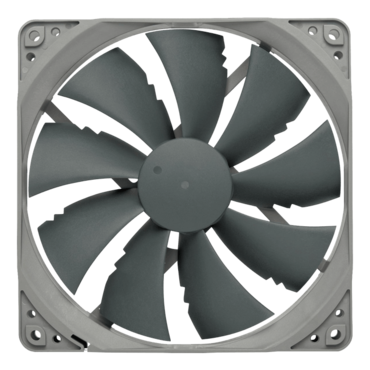

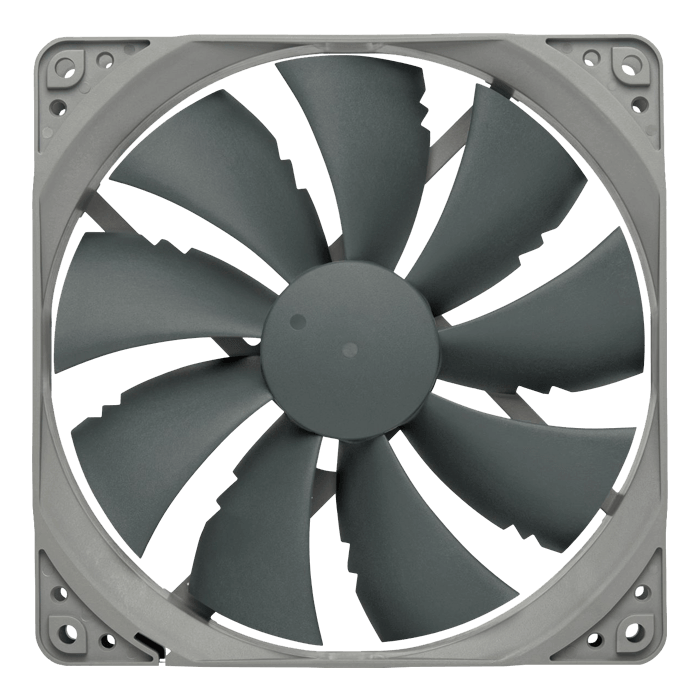

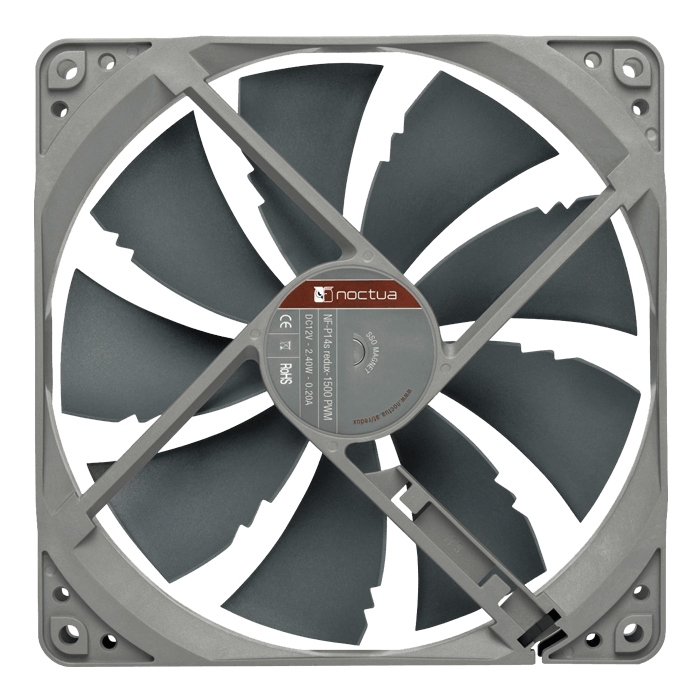

NF-P14s redux-1500 PWM 140mm, 1500 RPM, 78.7 CFM, 25.8 dBA, Cooling Fan

Quantity:
  • SKU: 14431190
  • Manufacturer: NOCTUA
  • MPN: NF-P14s redux-1500 PWM
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$27.42
Quantity:
NF-P14s redux-1500 PWM 140mm, 1500 RPM, 78.7 CFM, 25.8 dBA, Cooling Fan

Now available in a square frame version called NF-P14s (s for square frame) that lends itself to use in case and radiator cooling, the classic NF-P14 is a long-standing favourite among enthusiast users around the world and helped to found Noctua’s reputation as a top-tier manufacturer of premium quality quiet cooling components. The new redux edition reissues this award-winning model in a streamlined, accessibly priced package that has been reduced to the essential core: the NF-P14 premium fan. Its industry grade SSO-Bearing bearing, over 150.000 hours MTTF rating and full 6 years manufacturer’s warranty make the NF-P14 redux a proven premium choice that provides trusted Noctua quality at an attractive price point. The performance-oriented top speed of the 1500rpm PWM version is ideal for high efficiency case, radiator and CPU cooling as well as other applications that require both extended performance headroom and PWM for automatic speed control.

  • High performance cooling fan, 140x140x25 mm, 12V, 4-pin PWM, max. 1500 RPM, max. 25.8 dB(A), >150,000 h MTTF
  • Renowned NF-P14s high-end 140x25mm 12V fan, more than 100 awards and recommendations from international computer hardware websites and magazines, hundreds of thousands of satisfied users
  • Highly optimised low-noise design provides outstanding quietness of operation, excellent static pressure and strong airflow (CFM), square frame for water cooling radiators and chassis ventilation
  • 1500rpm 4-pin PWM version with excellent balance of performance and quietness, supports automatic motherboard speed control (powerful airflow when required, virtually silent at idle)
  • Streamlined redux edition: proven Noctua quality at an attractive price point, wide range of optional accessories (anti-vibration mounts, S-ATA adaptors, y-splitters, extension cables, etc.)
FAN Specification
Size 140x140x25 mm
Mounting hole spacing 124,5x124,5 mm
Connector & pin-configuration 4-pin PWM
Cable length 40cm
Bearing SSO-Bearing
Rotational speed (+/- 10%) 1500 RPM
Min. rotational speed (PWM, +/-20%) 450 RPM
Airflow 133,7 m³/h
Acoustical noise 25,8 dB(A)
Static pressure 1,91 mm H2O
Max. input power 2,4 W
Max. input current 0,2 A
Operating voltage 12 V
MTTF > 150.000 h
Scope of delivery
  • Fan
  • 4 Fan Screws
Warranty 6 years
