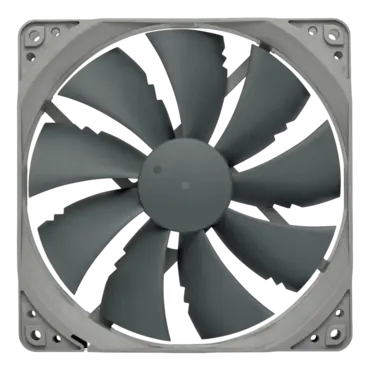

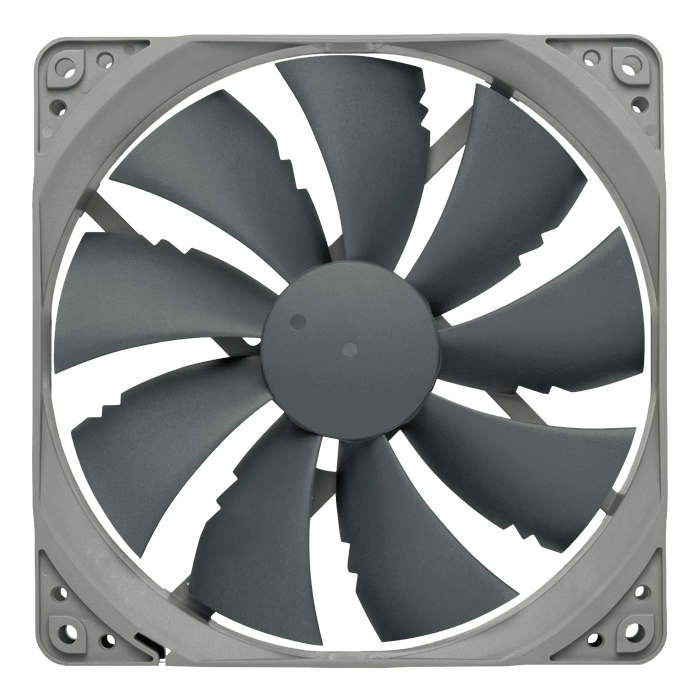

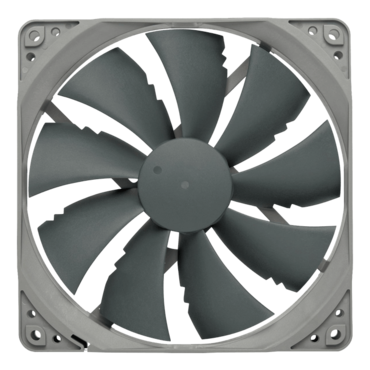

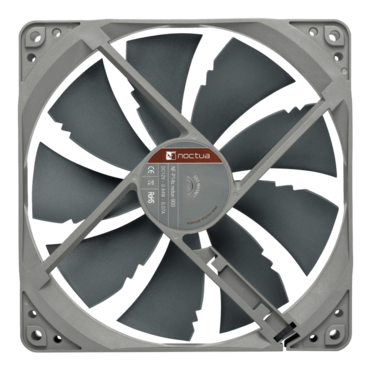

Now available in a square frame version called NF-P14s (s for square frame) that lends itself to use in case and radiator cooling, the classic NF-P14 is a long-standing favourite among enthusiast users around the world and helped to found Noctua’s reputation as a top-tier manufacturer of premium quality quiet cooling components. The new redux edition reissues this award-winning model in a streamlined, accessibly priced package that has been reduced to the essential core: the NF-P14 premium fan. Its industry grade SSO-Bearing bearing, over 150.000 hours MTTF rating and full 6 years manufacturer’s warranty make the NF-P14 redux a proven premium choice that provides trusted Noctua quality at an attractive price point. The extra slow 900rpm version is ideal for ultra-low-noise applications and highly noise sensitive users who demand near-silent operation.
FAN Specification | |
Size | 140x140x25 mm |
Mounting hole spacing | 124,5x124,5 mm |
Connector & pin-configuration | 3-pin |
Cable length | 40cm |
Bearing | SSO-Bearing |
Rotational speed (+/- 10%) | 900 RPM |
Airflow | 83,7 m³/h |
Acoustical noise | 13,2 dB(A) |
Static pressure | 0,77 mm H2O |
Max. input power | 0,84 W |
Max. input current | 0,07 A |
Operating voltage | 12 V |
MTTF | > 150.000 h |
Scope of delivery |
|
Warranty | 6 years |
