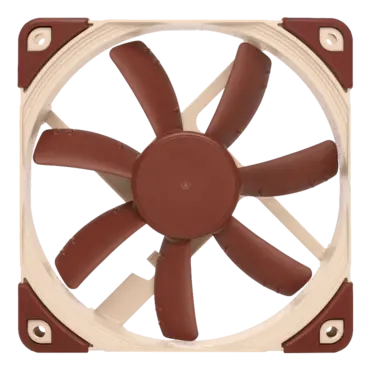

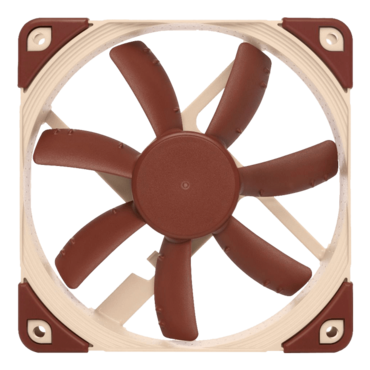

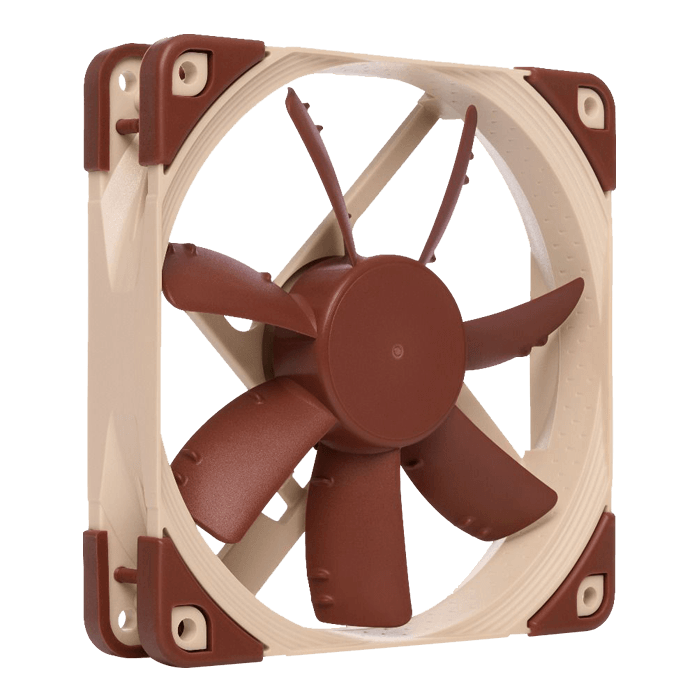

The NF-S12A marks the third generation of Noctua’s signature S12 series quiet case fans, which have received more than 250 awards and recommendations from the international press. Featuring a further refined blade design with Anti-Stall Knobs that works in tandem with the new AAO (Advanced Acoustic Optimisation) frame, the NF-S12A improves the airflow/noise efficiency of its renowned predecessor by up to 8%. The ULN version provides super-slow 800/600rpm speed settings for ultra-low-noise applications and highly noise sensitive users who demand near-silent operation. Its superb running smoothness, SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for quiet case cooling.
FAN Specification | |
Size | 120x120x25 mm |
Mounting hole spacing | 105x105 mm |
Connector & pin-configuration | 3-pin |
Cable length | 20cm + 30cm NA-EC1 extension cable |
Bearing | SSO2 |

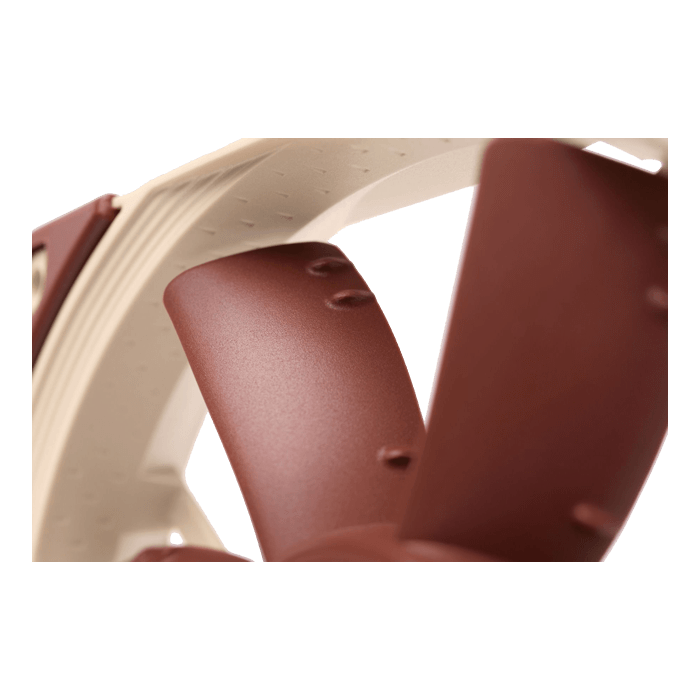

Blade geometry | S-Series with Anti-Stall Knobs |
Frame technology | AAO (Advanced Acoustic Optimisation) |
Rotational speed (+/- 10%) | 800 RPM |
Rotational speed with L.N.A. (+/- 10%) | 600 RPM |
Airflow | 74,3 m³/h |
Airflow with L.N.A. | 57,5 m³/h |
Acoustical noise | 8,6 dB(A) |
Acoustical noise with L.N.A. | 6,7 dB(A) |
Static pressure | 0,62 mm H2O |
Static pressure with L.N.A. | 0,44 mm H2O |
Max. input power | 0,72 W |
Max. input current | 0,06 A |
Operating voltage | 12 V |
MTTF | > 150.000 h |
Scope of delivery |
|
Warranty | 6 years |
