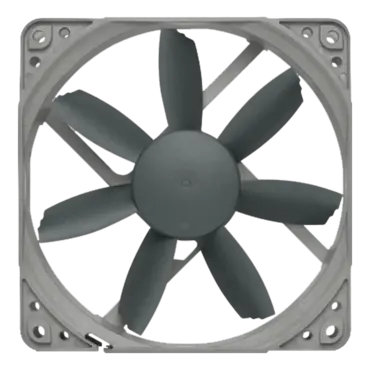

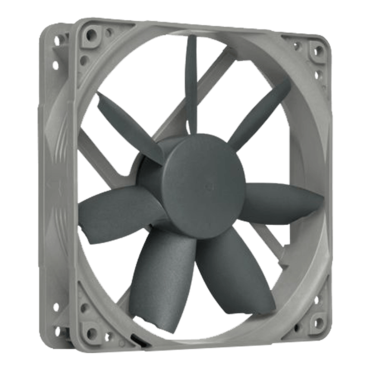

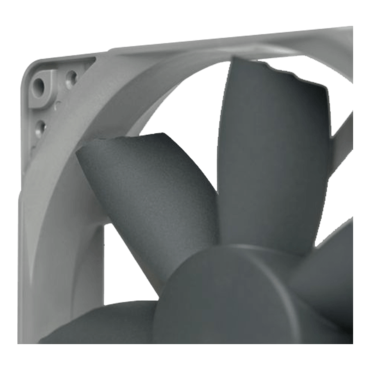

Specifically designed for low impedance case cooling applications, the classic NF-S12B is a long-standing favourite among enthusiast users around the world and helped to found Noctua’s reputation as a top-tier manufacturer of premium quality quiet cooling components. The new redux edition reissues this award-winning model in a streamlined, accessibly priced package that has been reduced to the essential core: the NF-S12B premium fan. Its industry grade SSO-Bearing bearing, over 150.000 hours MTTF rating and full 6 years manufacturer’s warranty make the NF-S12B redux a proven premium choice that provides trusted Noctua quality at an attractive price point. The 1200rpm PWM version features Noctua’s proprietary NE-FD1 for automatic speed control, which allows to strike a perfect balance between high cooling capacity and low noise operation in each given situation.
FAN Specification | |
Size | 120x120x25 mm |
Mounting hole spacing | 105x105 mm |
Connector & pin-configuration | 4-pin PWM |
Cable length | 40cm |
Bearing | SSO-Bearing |
Rotational speed (+/- 10%) | 1200 RPM |
Min. rotational speed (PWM, +/-20%) | 400 RPM |
Airflow | 100,6 m³/h |
Acoustical noise | 18,1 dB(A) |
Static pressure | 1,31 mm H2O |
Max. input power | 0,9 W |
Max. input current | 0,075 A |
Operating voltage | 12 V |
MTTF | > 150.000 h |
Scope of delivery |
|
Warranty | 6 years |
