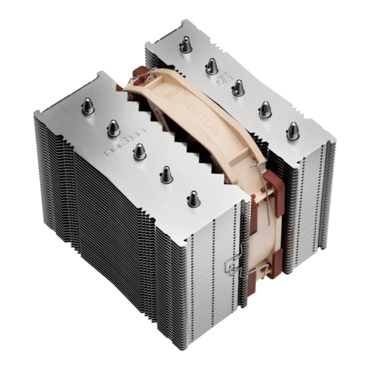

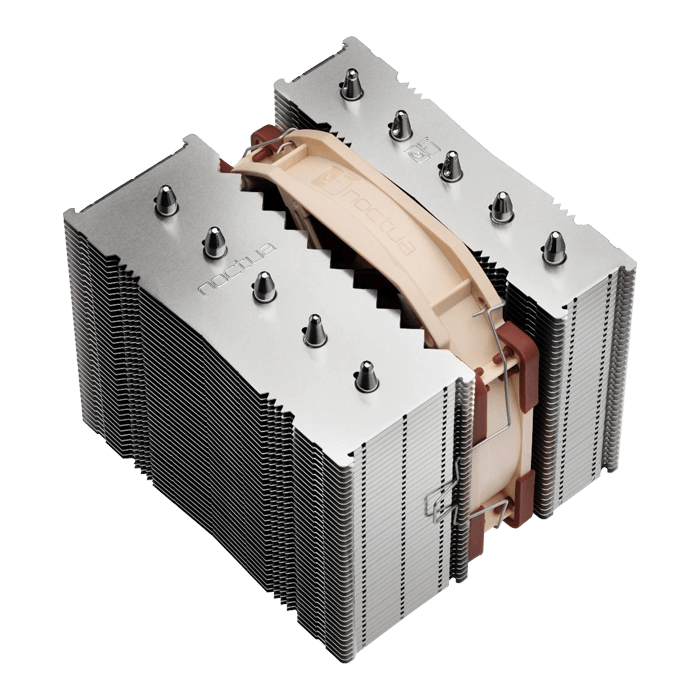

| Cooler Specification |
| Socket compatibility |
Intel LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150, LGA2011, LGA2066 and AMD AM5, AM4 |
| Height (without fan) |
145 mm |
| Width (without fan) |
125 mm |
| Depth (without fan) |
113 mm |
| Weight (without fan) |
700 g |
| Height (with fan) |
145 mm |
| Width (with fan) |
125 mm |
| Depth (with fan) |
113 mm |
| Weight (with fan) |
890 g |
| Material |
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
| NSPR |
148 |
| Max. TDP |
180W |
| Fan compatibility |
NF-A12x25r (square-frame 120mm fans not supported) |
| Scope of delivery |
- NF-A12x25r PWM premium fan
- NA-RC14 Low-Noise Adaptor (L.N.A)
- NT-H1 high-grade thermal compound
- Fan-clips for second NF-A12x25r
- SecuFirm2™ mounting kit
- Noctua metal case-badge
|
| Warranty |
6 Years |
| FAN Specification |
| Model |
Noctua NF-A12x25r PWM |
| Bearing |
SSO2 |
| Max. rotational speed (+/- 10%) |
2000 RPM |
| Max. rotational speed with L.N.A. (+/- 10%) |
1700 RPM |
| Min. rotational speed @ 20% PWM (+/-20%) |
450 RPM |
| Max. airflow |
102,1 m³/h |
| Max. airflow with L.N.A. |
84,5 m³/h |
| Max. acoustical noise |
22,6 dB(A) |
| Max. acoustical noise with L.N.A. |
18,8 dB(A) |
| Voltage range |
12 V |
| MTTF |
> 150.000 h |
