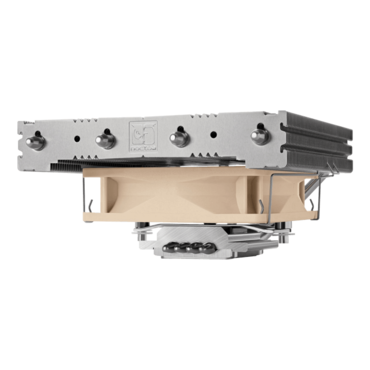

NH-L12 Ghost S1 Edition, 66mm Height, 165W TDP, Copper/Aluminum CPU Cooler

SKU: 14422253

Manufacturer: NOCTUA

MPN: NH-L12 Ghost S1 Edition

Availability: Available


Price: $70.24
or as low as $2/month
Quantity:

Noctua’s classic NH-L12 has proven to be the best air cooling solution for Louqe’s award-winning Ghost S1 enclosure. With its single&nbspNF-B9 PWM 92mm fan, the new Ghost S1 edition is tailored for use in this case and has been updated with the latest SecuFirm2™ mounting hardware for all current mainstream sockets, including Intel LGA1200, LGA115x and AMD AM4. Topped off with Noctua’s further improved, second generation NT-H2 thermal compound and a full 6-year manufacturer’s warranty, the NH-L12 Ghost S1 edition is the ideal choice for premium-grade quiet builds in the Louqe Ghost S1 chassis.

  • Award-winning Noctua NH-L12 low-profile cooler for quiet Small Form Factor (SFF) builds, special edition for the Louqe Ghost S1 case
  • Single NF-B9 92mm fan configuration for optimal fit and performance in the Ghost S1 enclosure, PWM support and Low-Noise Adaptor for ultimate quietness of operation
  • Latest, easy-to-install SecuFirm2 mounting system for Intel LGA115x (LGA1150, LGA1151, LGA1155, LGA1156), LGA1200, LGA20xx (LGA2066, LGA2011-0, LGA2011-3) & AMD AM4, AM3(+), AM2(+), FM2(+), FM1
  • Further improved second generation NT-H2 thermal compound for optimal overall cooling performance
  • Deluxe choice for CPUs with moderate heat load (see CPU compatibility list on Noctua.at website), e.g. Intel 9900K, 9700K or AMD Ryzen 2700X, 3600, 3700X, 3400G, etc.
Cooler Specification
Socket compatibility Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, FM2+ (backplate required)
Height (without fan) 66 mm
Width (without fan) 128 mm
Depth (without fan) 150 mm
Weight (without fan) 410 g
Height (with fan) 66 mm
Width (with fan) 128 mm
Depth (with fan) 150 mm
Weight (with fan) 500 g
Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR 78
Max. TDP see NSPR
Fan compatibility 92x92x25mm

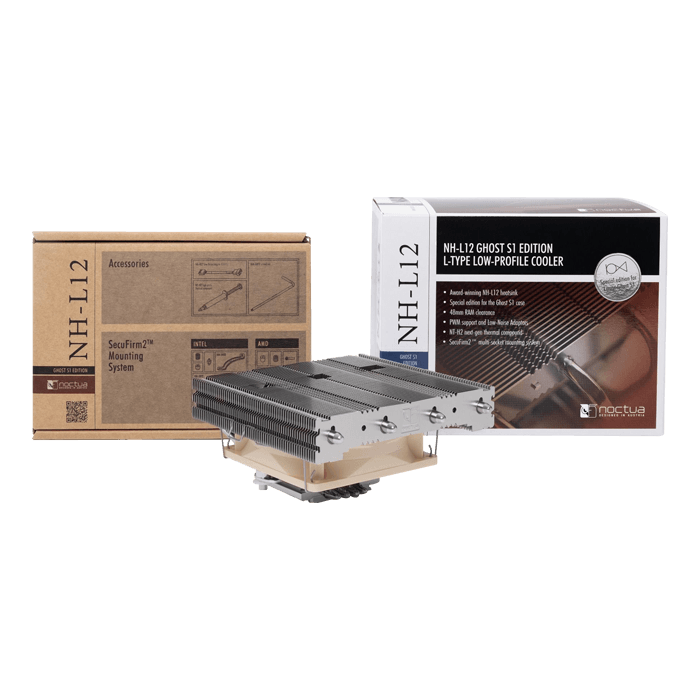

Scope of delivery
  1. NF-B9 PWM premium fan
  2. NA-RC7 Low-Noise Adaptor (L.N.A)
  3. NT-H2 high-grade thermal compound
  4. SecuFirm2™ mounting kit
  5. Metal case badge
Warranty 6 Years
FAN Specification
Model Noctua NF-B9 PWM
Bearing SSO-Bearing
Max. rotational speed (+/- 10%) 1600 RPM
Max. rotational speed with L.N.A. (+/- 10%) 1300 RPM
Min. rotational speed (PWM, +/-20%) 300 RPM
Max. airflow 64,3 m³/h
Max. airflow with L.N.A. 52,6 m³/h
Max. acoustical noise 17,6 dB(A)
Max. acoustical noise with L.N.A. 13,1 dB(A)
Input power 0,96 W
Voltage range 12 V
MTTF > 150.000 h
