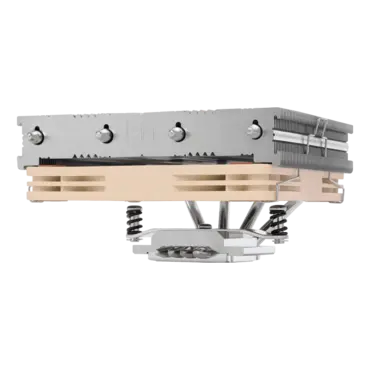

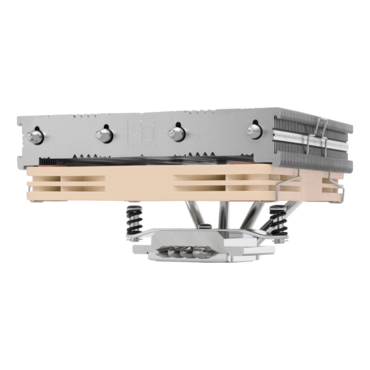

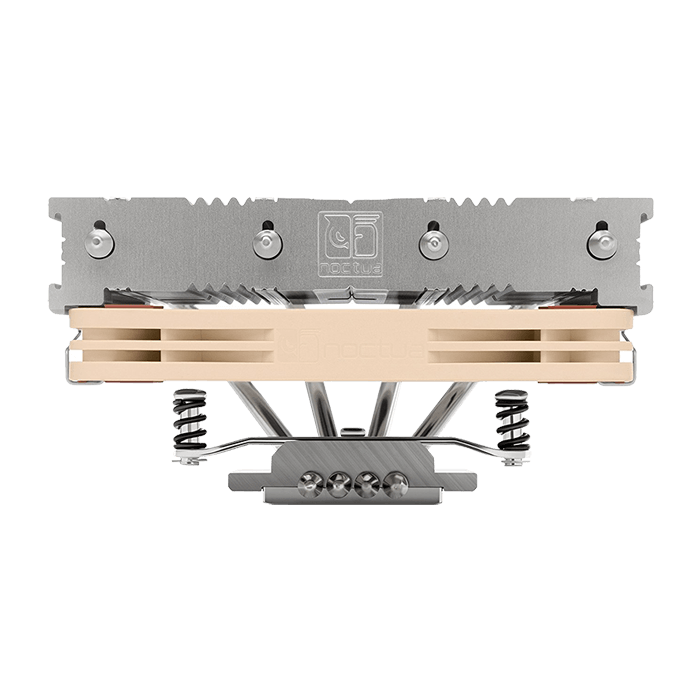

NH-L12S, 70mm Height, 110W TDP, Copper/Aluminum CPU Cooler

Quantity:
  • SKU: 12157689
  • Manufacturer: NOCTUA
  • MPN: NH-L12S
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$83.19
Quantity:
NH-L12S, 70mm Height, 110W TDP, Copper/Aluminum CPU Cooler

Successor to the award-winning NH-L12, the NH-L12S is a compact low-profile CPU cooler that combines excellent compatibility, surprising efficiency and remarkable flexibility. Thanks to its NF-A12x15 PWM, slim 120mm fan, the NH-L12S provides even better quiet cooling performance than the previous model with its 92mm fan. At the same time, the NH-L12S is highly versatile: with the fan installed on top of the fins, the cooler is compatible with RAM modules of up to 48mm in height. With the fan installed underneath the fins, the total height of the cooler is only 70mm, making it suitable for use in many HTPC and Small Form Factor cases. Topped off with the trusted, pro-grade SecuFirm2™ multi-socket mounting system, Noctua’s proven NT-H1 thermal compound and a full 6-year manufacturer’s warranty, the NH-L12S is a premium-quality low-profile solution for the highest demands.

  • Based on the award-winning NH-L12
  • Having received more than 200 awards and recommendations from leading international hardware websites and magazines, the NH-L12 has become an established reference for low-profile 120mm top-flow coolers. Equipped with the new NF-A12x15 fan, the new S-version provides more flexibility and improved performance in low-profile mode.
  • Low-profile mode
  • Run with the NF-A12x15 fan installed underneath the fin stack, the NH-L12S stands only 70mm tall. The fan can be installed blowing upwards or blowing downwards in order to match the airflow direction inside the case.
  • High-clearance mode
  • Run with the NF-A12x15 fan installed on top, the NH-L12S provides extended clearance underneath the fin stack. This way, it is fully compatible with chipset coolers and RAM modules with heat-spreaders of up to 48mm in height (vs. 35mm in low-profile mode).
  • NF-A12x15 slim 120mm premium fan
  • Featuring sophisticated aerodynamic optimisations such as Flow Acceleration Channels, the NF-A12x15 is a premium-grade slim 120mm fan. Its outstanding efficiency allows the NH-L12S to provide even better performance than the previous model with its 92mm fan.
  • 120x25mm fan support
  • The fan clips supplied with the NH-L12S work not only with the slim NF-A12x15 fan but also with 25mm thick 120mm fans. Users who have extra room inside their cases can thus boost the cooler’s performance by using a standard 120x25mm fan on top (increases total height to 95mm).
  • SecuFirm2™ mounting system
  • Noctua's SecuFirm2™ mounting systems have become synonymous with quality, safety and ease of use. Supporting Intel LGA115x (LGA1150, LGA1151, LGA1155, LGA1156), LGA2011 (LGA2011-0 & LGA2011-3), LGA2066 and AMD (AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, FM2+), the SecuFirm2™ mounting included with the NH-L12S guarantees perfect contact pressure and maximum convenience on all current sockets.
  • Compatibility with past and future sockets
  • Complying with the open SecuFirm™ standard, the cooler can be made compatible with the older LGA1366 and LGA775 sockets using the optional NM-I3 mounting kit, which is provided by Noctua free of charge. If technically possible, Noctua will also provide upgrade kits for future sockets.
  • NT-H1 thermal compound
  • Noctua's much-acclaimed NT-H1 is a pro-grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability. Chosen again and again by overclockers and enthusiast users worldwide, it has established itself as a benchmark for premium-quality thermal compounds.
  • 6-year manufacturer’s warranty
  • Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-A12x15 features an MTTF rating of more than 150,000 hours and the entire NH-L12S package comes with a full 6-year manufacturer’s warranty.
General
Notes and warnings The NH-L12S is a low-profile quiet cooler designed for use in Small Form Factor cases and HTPC environments. While it provides first-rate performance in its class, it is not suitable for overclocking and should be used with care on CPUs with more than 95W TDP (Thermal Design Power). Please consult our CPU compatibility list and TDP guidelines to find out whether the NH-L12S is recommended for your CPU.
Cooler Specification
Socket compatibility Intel , LGA2011-0 & LGA2011-3 (Square ILM), LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, FM2+ (backplate required)
Height (without fan) 70 mm
Width (without fan) 128 mm
Depth (without fan) 146 mm
Weight (without fan) 390 g
Height (with fan) 70 mm
Width (with fan) 128 mm
Depth (with fan) 146 mm
Weight (with fan) 520 g
Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Max. TDP see CPU compatibility list
Fan compatibility 120x120x15 & 120x120x25
Scope of delivery
  • 1x NF-A12x15 PWM premium fan
  • Low-Noise Adaptor (L.N.A.)
  • NT-H1 high-grade thermal compound
  • SecuFirm2™ mounting kit
  • Noctua metal case-badge
Warranty 6 Years
FAN Specification
Model 1x Noctua NF-A12x15 PWM
Bearing SSO2
Max. rotational speed (+/- 10%) 1850 RPM
Max. rotational speed with L.N.A. (+/- 10%) 1400 RPM
Min. rotational speed (PWM, +/-20%) 450 RPM
Max. airflow 94,2 m³/h
Max. airflow with L.N.A. 70,8 m³/h
Max. acoustical noise 23,9 dB(A)
Max. acoustical noise with L.N.A. 16,8 dB(A)
Input power 1,56 W
Voltage range 12 V
MTTF > 150.000 h
