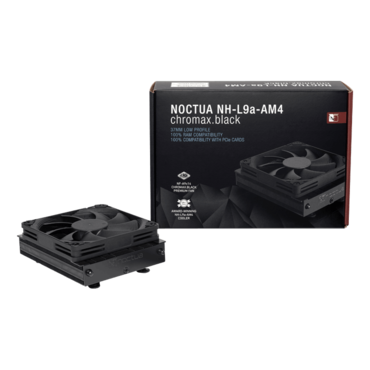

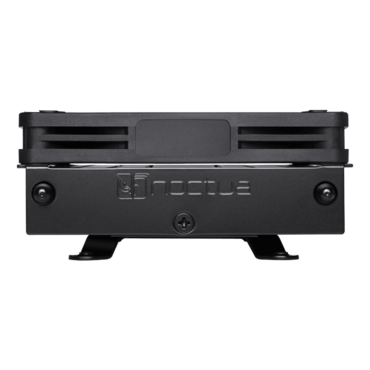

NH-L9a-AM4 chromax.black, 37mm Height, 105W TDP, Copper/Aluminum CPU Cooler

SKU: 14428102

Manufacturer: NOCTUA

MPN: NH-L9a-AM4 chromax.black

Availability: Available


Price: $70.40
or as low as $2/month
Quantity:

The NH-L9a-AM4 chromax.black is an all-black version of Noctua’s award-winning NH-L9a-AM4 low-profile quiet CPU cooler for AMD Ryzen based HTPCs and Small Form Factor (SFF) builds. Thanks to the same proven heatsink design and NF-A9x14 PWM fan, it stays true to the NH-L9a-AM4’s successful formula of fusing a height of only 37mm with strong performance and excellent quietness of operation, as well as 100% RAM and PCIe compatibility. At the same time, the chromax.black version with its black fan and black coated heatsink combines these assets with a sleek stealth look. Topped off with the renowned SecuFirm2™ low-profile mounting system for AMD AM4, Noctua’s enthusiast-grade NT-H1 thermal compound and a full 6-year manufacturer’s warranty, the NH-L9a-AM4 chromax.black is a premium choice for customers who seek an ultra-compact heatsink that looks just as great as it cools.

  • Proven premium heatsink (more than 50 awards and recommendations from international hardware websites), now available in an all-black design that goes great with many colour schemes and RGB LEDs
  • Only 37mm height allows it to fit ultra-compact HTPC and Small Form Factor (SFF) cases, tailored footprint guarantees 100% RAM and PCIe compatibility on all ITX, Micro-ATX and ATX AM4 motherboards
  • Renowned, award-winning NF-A9x14 slim 92mm fan with Low-Noise Adaptor and PWM for automatic speed control: Full cooling performance under load, whisper quiet at idle!
  • Includes high-end NT-H1 thermal paste and SecuFirm2 mounting system for easy installation on AMD Ryzen CPUs and APUs
  • Renowned Noctua quality backed up by 6-year manufacturer’s warranty, deluxe choice for AMD Ryzen CPUs & APUs with moderate heat load (e.g. 3700X, 3600, 3400G, 3300X, see compatibility list)
Cooler Specification
Socket compatibility AMD AM4
Height (without fan) 23 mm
Width (without fan) 114 mm
Depth (without fan) 92 mm
Weight (without fan) 390 g
Height (with fan) 37 mm
Width (with fan) 114 mm
Depth (with fan) 92 mm
Weight (with fan) 465 g
Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR 61
Max. TDP see NSPR
Fan compatibility 92x92x14mm, 92x92x25mm
Scope of delivery
  • Black NH-L9a-AM4 heatsink
  • NF-A9x14 HS-PWM chromax.black premium fan
  • NA-RC7 Low-Noise Adaptor (L.N.A.)
  • NT-H1 high-grade thermal compound
  • Black SecuFirm2™ AM4 mounting kit
  • Black Screws for 92x92x25mm fans
  • Noctua Metal Case-Badge
Warranty 6 Years
FAN Specification
Model Noctua NF-A9x14 HS-PWM chromax.black
Bearing SSO2
Max. rotational speed (+/- 10%) 2500 RPM
Max. rotational speed with L.N.A. (+/- 10%) 1800 RPM
Min. rotational speed (PWM, +/-20%) 600 RPM
Max. airflow 57,5 m³/h
Max. airflow with L.N.A. 40,8 m³/h
Max. acoustical noise 23,6 dB(A)
Max. acoustical noise with L.N.A. 14,8 dB(A)
Input power 2,52 W
Voltage range 12 V
MTTF > 150.000 h
