NH-L9a-AM5, 37mm Height, 75W TDP, Copper/Aluminum CPU Cooler

Quantity:
  • SKU: 15620846
  • Manufacturer: NOCTUA
  • MPN: NH-L9a-AM5
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$65.73
Quantity:

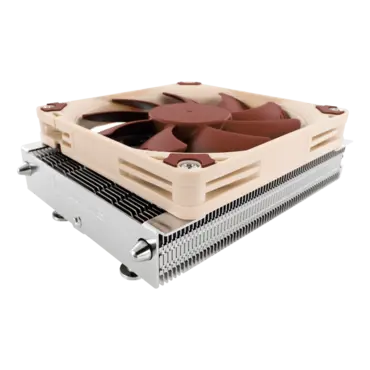

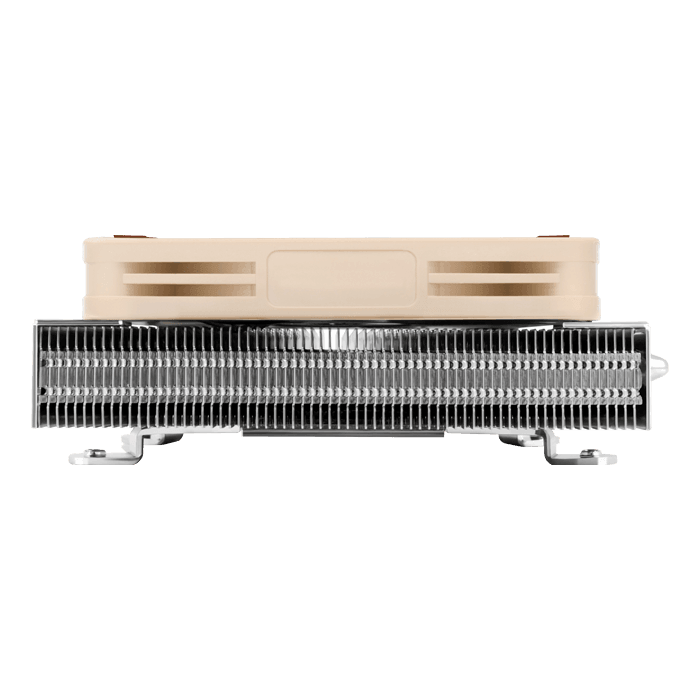

NH-L9a-AM5, 37mm Height, 75W TDP, Copper/Aluminum CPU Cooler

The NH-L9a-AM5 is the latest, AM5-specific revision of Noctua’s award-winning NH-L9a low-profile CPU cooler for AMD Ryzen based HTPCs and Small Form Factor (SFF) systems. At a height of only 37mm, the NH-L9a is ideal for extremely slim cases and, due to its small footprint, it provides 100% RAM and PCIe compatibility as well as easy access to near-socket connectors even on tightly packed mini-ITX motherboards. The custom-designed SecuFirm2™ mounting system for the AM5 socket makes installation a breeze and, thanks to the highly optimised NF-A9x14 92mm fan that supports fully automatic speed control via PWM, the NH-L9a-AM5 runs remarkably quietly. Topped off with Noctua’s renowned NT-H1 thermal compound, the NH-L9a-AM5 combines everything users have come to expect from Noctua’s larger coolers into a super-compact, premium-quality package for ITX and HTPC builds with AMD AM5 processors.

  • 37mm Low-profile cooler for HTPC and Small Form Factor
  • NF-A9x14 premium fan with PWM
  • 100% RAM compatibility & 100% compatibility with PCIe cards on mini-ITX
  • SecuFirm2™ for AMD AM5
Cooler Specification
Socket compatibility AMD AM5
Height (without fan) 23 mm
Width (without fan) 114 mm
Depth (without fan) 92 mm
Weight (without fan) 390 g
Height (with fan) 37 mm
Width (with fan) 114 mm
Depth (with fan) 92 mm
Weight (with fan) 465 g
Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR 61
Max. TDP see NSPR
Fan compatibility 92x92x14mm, 92x92x25mm
Scope of delivery
  • Black NH-L9a-AM5 heatsink
  • NF-A9x14 HS-PWM chromax.black premium fan
  • NA-RC7 Low-Noise Adaptor (L.N.A.)
  • NT-H1 high-grade thermal compound
  • Black SecuFirm2™ AM5 mounting kit
  • Black Screws for 92x92x25mm fans
  • Noctua Metal Case-Badge
Warranty 6 Years
FAN Specification
Model Noctua NF-A9x14 HS-PWM
Bearing SSO2
Max. rotational speed (+/- 10%) 2500 RPM
Max. rotational speed with L.N.A. (+/- 10%) 1800 RPM
Min. rotational speed (PWM, +/-20%) 600 RPM
Max. airflow 57,5 m³/h
Max. airflow with L.N.A. 40,8 m³/h
Max. acoustical noise 23,6 dB(A)
Max. acoustical noise with L.N.A. 14,8 dB(A)
Input power 2,52 W
Voltage range 12 V
MTTF > 150.000 h
