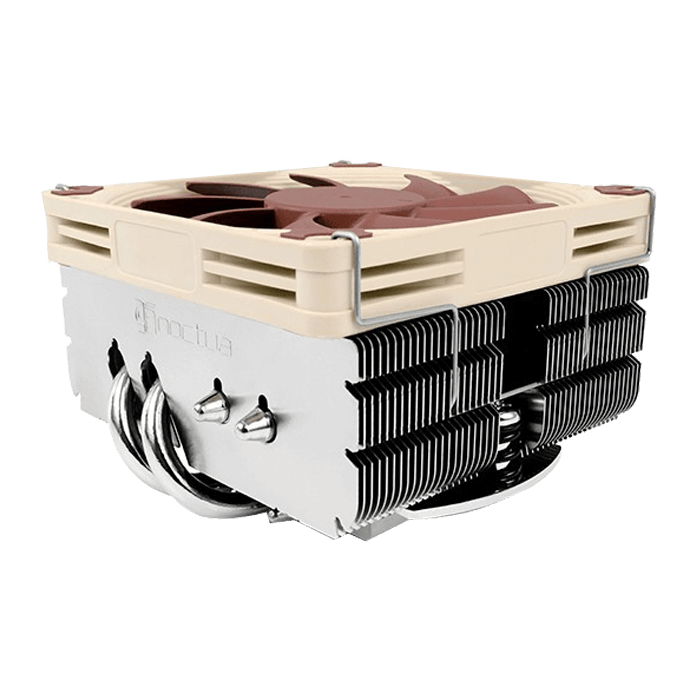

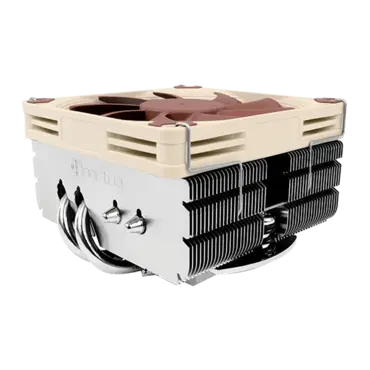

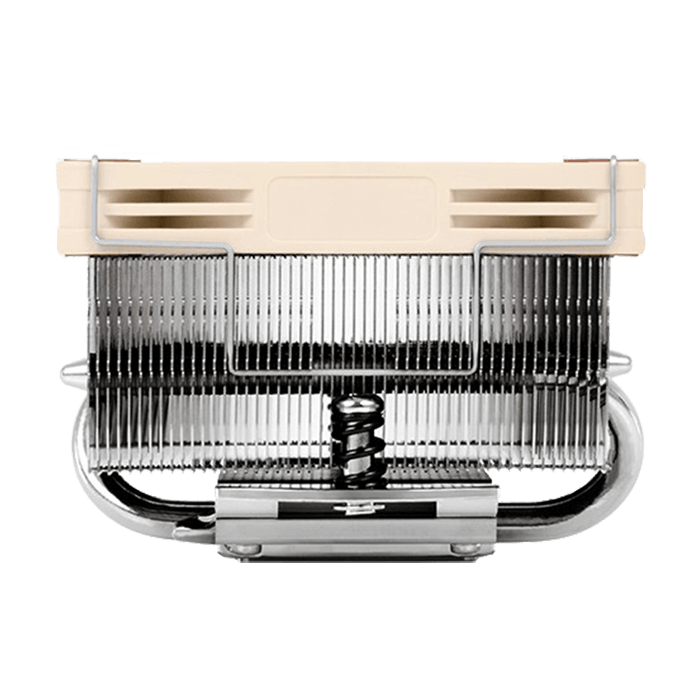

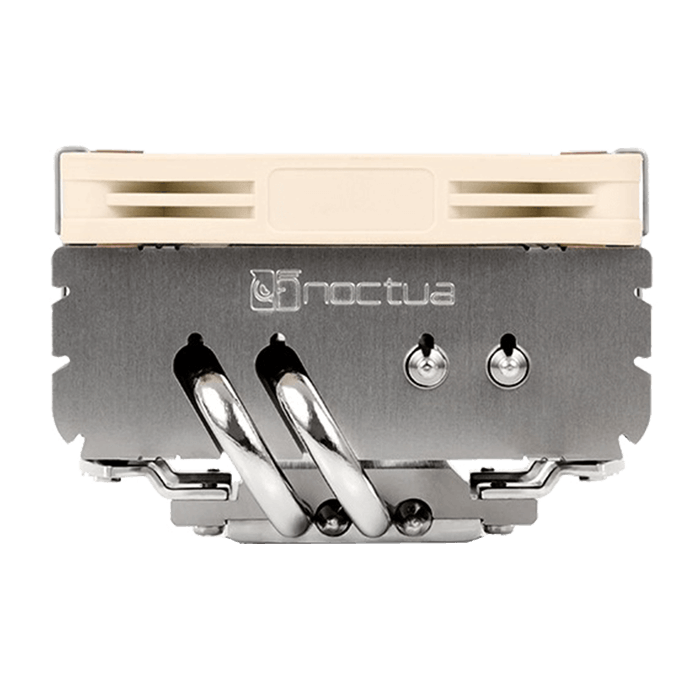

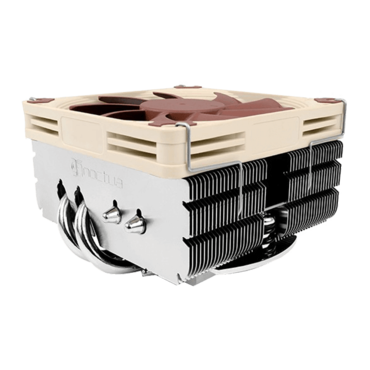

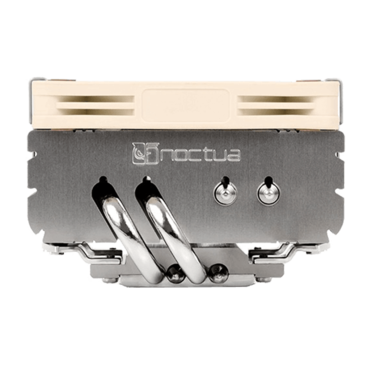

NH-L9x65 SE-AM4, 65mm Height, 85W TDP, Copper/Aluminum/Nickel CPU Cooler

  • SKU: 11092033
  • Manufacturer: NOCTUA
  • MPN: NH-L9x65 SE-AM4
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
NH-L9x65 SE-AM4, 65mm Height, 85W TDP, Copper/Aluminum/Nickel CPU Cooler

Having received more than 100 awards and recommendations from international hardware websites and magazines, Noctua’s compact NH-L9x65 has become a standard choice among 65mm tall low-profile coolers. The SE-AM4 version is a dedicated special edition for AMD’s AM4 (Ryzen) platform featuring the latest SecuFirm2™ mounting system for AM4. Topped off with the renowned quiet NF-A9x14 PWM 92mm fan, Noctua’s proven NT-H1 thermal compound and a full 6-year manufacturer’s warranty, the NH-L9x65 SE-AM4 forms a complete premium-quality solution for AM4-based ITX builds and HTPC systems.

Brand Noctua
Model NH-L9x65 SE-AM4
Type Fan & Heatsinks
Fan Size 92 x 92 x 14mm, 92 x 92 x 25mm
Compatibility AMD AM4
Bearing Type SSO2
RPM 2500 RPM (Max ), 1800 RPM ( w/ L.N.A ), Min Rotation Speed (PWM ): 300RPM
Air Flow 57.5m³/h (Max), 40.8 m³/h ( w/L.N.A. )
Noise Level 23.6 dB(A) ( Max), 14.8 dB(A) (w/ L.N.A )
Power Connector 4 Pin
Heatsink Material Copper ( Base and Heat-pipes), Alum.( cooling Fins ), Soldered Joints, Nickel Plated
Fan Mounting Types to Heatsink Vertical
Dimensions & Weight
Max CPU Cooler Height 65mm
Fan Dimensions 95 x 95 x 65mm (with fan)
Heatsink Dimensions 95 x 95 x 51mm (w/o fan)
Weight 0.91 lbs
Package Contents
Package Contents NF-A9x14 PWM premium fan, Low-Noise Adaptor (L.N.A.), NT-H1 high-grade thermal compound, SecuFirm2™ AM4 mounting-kit, Noctua metal case-badge
