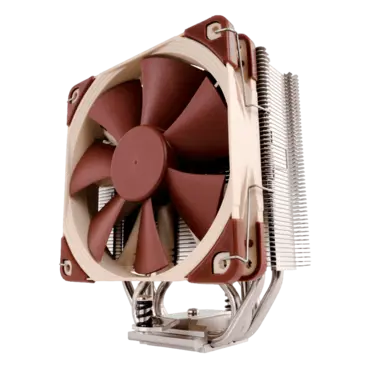

NH-U12S, 158mm Height, 160W TDP, Copper/Aluminum CPU Cooler
Quantity:
- SKU: 7718690
- Manufacturer: NOCTUA
- MPN: NH-U12S
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$84.55
As low as $7.05/ Month*
- Award-winning NH-U12 series
The NH-U12S is the latest version of Noctua’s award-winning NH-U12 coolers. First introduced in 2005, the NH-U series has become a standard choice for premium quality quiet CPU coolers and won more than 400 awards and recommendations from leading international hardware websites and magazines. - 100% RAM compatibility
Thanks to its slim design with only 45mm fin depth, the NH-U12S will not overhang the RAM slots even with two fans installed. This gives the user full access to the memory modules on all current CPU sockets and guarantees 100% compatibility with tall heatspreaders or optional memory fans.* - Classic 120mm tower size for excellent overall compatibility
Standing 158mm tall, the NH-U12S is short enough to fit most modern mid- or high-end tower cases. Measuring 125mm wide (including fan and fan clips), the cooler stays clear of the top PCIe slot on standard ATX or Micro-ATX motherboards, ensuring best compatibility with SLI and CrossFire setups. - NF-F12 120mm Focused Flow™ fan
Recommended by more than 150 hardware publications and thousands of enthusiasts world-wide, the Noctua’s premium quality NF-F12 Focused Flow™ 120mm fan is renowned to combine superb static pressure, excellent heatsink performance and surprising quietness of operation. - PWM support and Low-Noise Adaptor
The NF-F12 120mm fan supplied with the NH-U12S supports PWM for convenient automatic speed control through the mainboard. In addition, the maximum fan speed can be reduced from 1500 to 1200rpm using the supplied Low-Noise Adaptor for even quieter operation. - Anti-vibration pads and fan-clips for second NF-F12 (optional)
For users who want to achieve even better performance by adding a second, optional NF-F12 fan to create a push/pull setup, the NH-U12S includes fan clips and an extra set of custom-designed anti-vibration pads that allow to off-set the rear fan by 5mm to improve acoustics in dual-fan mode. - SecuFirm2™ mounting system
Noctua’s SecuFirm2™ mounting systems have become synonymous with quality, safety and ease of use. Supporting Intel LGA115x (LGA1150, LGA1155, LGA1156), LGA2011 and AMD (AM3+, AM2+, FM1, FM2), the SecuFirm2™ mounting included with the NH-U12S guarantees perfect contact pressure and maximum convenience on all current sockets. - Compatibility with past and future sockets
Complying with the open SecuFirm™ standard, the NH-U12S can be made compatible with the older LGA1366 and LGA775 sockets using the optional NM-I3 mounting kit, which is provided by Noctua free of charge. If technically possible, Noctua will also provide upgrade kits for future sockets. - NT-H1 thermal compound
Having received more than 100 awards and recommendations from hardware journalists around the world, Noctua’s NT-H1 is a proven professional grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability. - 6 years warranty
Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-F12 features an MTBF rating of more than 150.000 hours and the entire NH-U12S package comes with a full 6 years manufacturer’s warranty.
| Socket compatibility | Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required), AM4 with NM-AM4-UxS |
| Height (without fan) | 158 mm |
| Width (without fan) | 125 mm |
| Depth (without fan) | 45 mm |
| Height (with fan) | 158 mm |
| Width (with fan) | 125 mm |
| Depth (with fan) | 71 mm |
| Weight (without fan) | 580 g |
| Weight (with fan) | 755 g |
| Material | Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
| Fan compatibility | 120x120x25 |
| Scope of Delivery |
|
| Warranty | 6 Years |
| Fan specifications | |
| Model | Noctua NF-F12 PWM |
| Bearing | SSO2 |
| Max. Rotational Speed (+/- 10%) | 1500 RPM |
| Max. Rotational Speed with L.N.A. (+/- 10%) | 1200 RPM |
| Min. Rotational Speed (PWM) | 300 RPM |
| Max. Airflow | 93,4 m³/h |
| Max. Airflow with L.N.A. | 74,3 m³/h |
| Max. Acoustical Noise | 22,4 dB(A) |
| Max. Acoustical Noise with L.N.A. | 18,6 dB(A) |
| Input Power | 0,6 W |
| Voltage Range | 12 V |
| MTBF | > 150.000 h |
