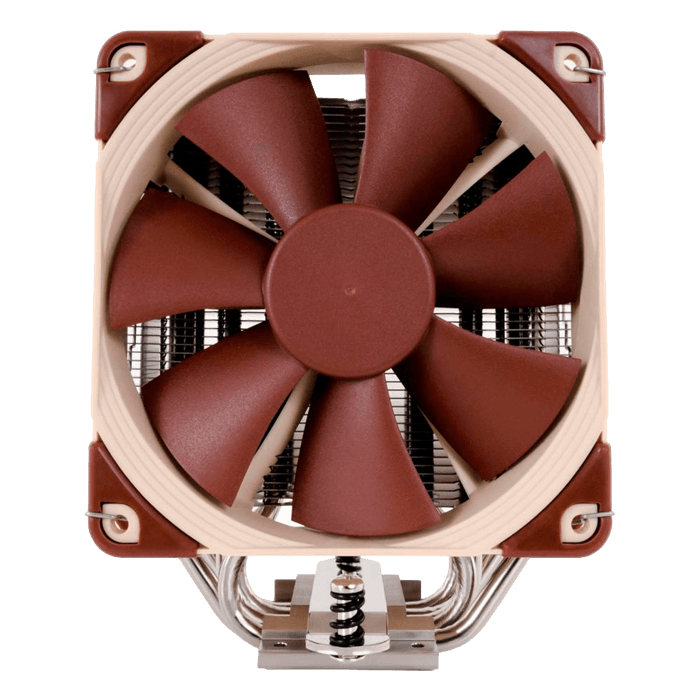

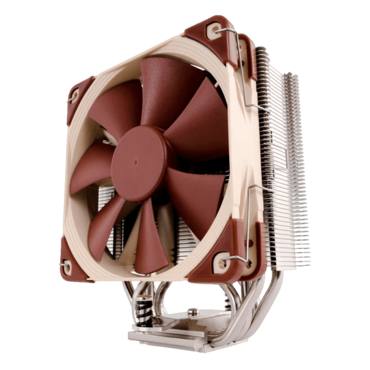

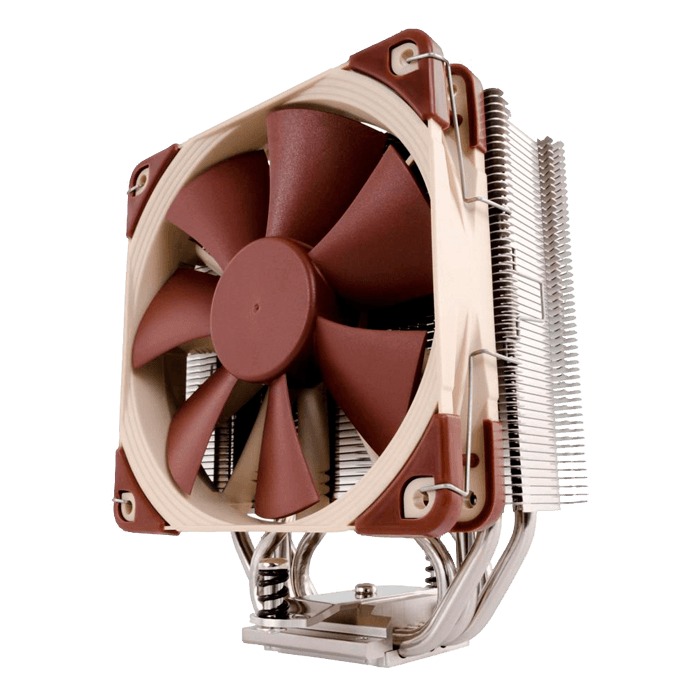

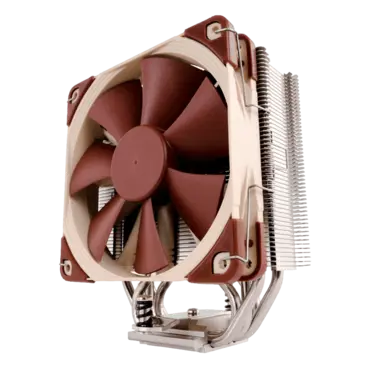

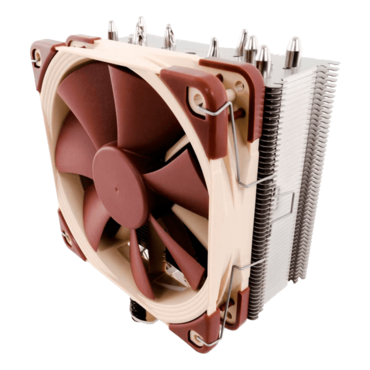

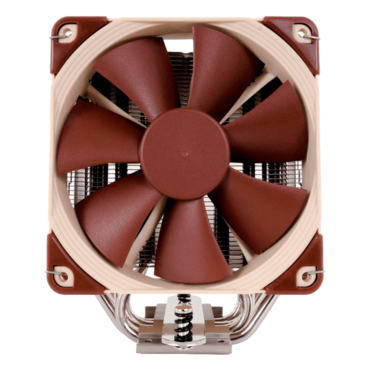

NH-U12S SE-AM4, 158mm Height, 160 TDP, Copper/Aluminum/Nickel CPU Cooler
Quantity:
- SKU: 11093052
- Manufacturer: NOCTUA
- MPN: NH-U12S SE-AM4
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$106.22
NH-U12S SE-AM4, 158mm Height, 160 TDP, Copper/Aluminum/Nickel CPU Cooler
Continuing the legacy of Noctua’s classic NH-U-series, which has received more than 500 awards and recommendations from international hardware websites and magazines, the NH-U12S has become a benchmark for slim, highly compatible 120mm single tower coolers. The SE-AM4 version is a dedicated special edition for AMD’s AM4 (Ryzen) platform, featuring the latest SecuFirm2™ mounting system for AM4. Topped off with the renowned quiet NF-F12 PWM 120mm fan, Noctua’s proven NT-H1 thermal compound and a full 6-year manufacturer’s warranty, the NH-U12S SE-AM4 forms a complete premium-quality solution that combines outstanding performance, superb acoustics and excellent compatibility for AM4 systems.
| Model | |
|---|---|
| Brand | Noctua |
| Model | NH-U12S SE-AM4 |
| Details | |
| Type | Fan & Heatsinks |
| Fan Size | 120x120x25 ( NF-F12 PWM) |
| Compatibility | AMD AM4 |
| Bearing Type | SSO2 |
| RPM | 1500 RPM ( standard ), 1200RPM ( w/ L.N.A.), 300RPM ( PWM) |
| Air Flow | 93.4 m3/h (standard), 74.3 m3/h ( W/ U.L.N.A ) |
| Noise Level | 22.4 dB(A)/standard, 18.6 dB(A) ( w/ U.L.N.A.) |
| Power Connector | 4 Pin |
| Heatsink Material | Copper ( Base and Heat-pipes), Alum.( cooling Fins ), Soldered Joints, Nickel Plated. |
| Fan Mounting Types to Heatsink | Horizontal |
| Dimensions & Weight | |
| Max CPU Cooler Height | 158mm |
| Fan Dimensions | 158x125x71mm |
| Heatsink Dimensions | 158x125x45mm |
| Weight | 1.28 Lbs ( Without Fan ), 1.66 Lbs ( With Fan ) |
| Package Contents | |
| Package Contents | NF-F12 PWM premium fan, Low-Noise Adaptor (L.N.A.), NT-H1 high-grade thermal compound, SecuFirm2™ AM4 mounting-kit, Anti-vibration pads and fan-clips for second NF-F12, Noctua metal case-badge |
