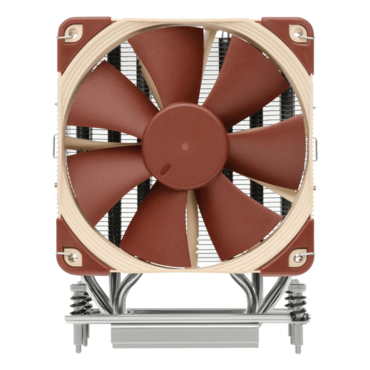

NH-U12S TR4-SP3, 158mm Height, 180W TDP, Copper/Aluminum CPU Cooler

SKU: 11494118

Manufacturer: NOCTUA

MPN: NH-U12S TR4-SP3

Availability: Available


Price: $82.59
or as low as $7/month
Quantity:

Continuing the legacy of Noctua’s classic NH-U-series, which has received more than a thousand awards and recommendations from international hardware websites and magazines, the NH-U12S has become a benchmark for slim, highly compatible 120mm single tower coolers. The TR4-SP3 version is a tailored custom model for AMD’s TR4/SP3 platform (Ryzen Threadripper / Epyc) and features a larger contact surface as well as the latest SecuFirm2™ mounting system for socket TR4/SP3. Topped off with the renowned quiet NF-F12 PWM 120mm fan, Noctua’s proven NT-H1 thermal compound and a full 6-year manufacturer’s warranty, the NH-U12S TR4-SP3 forms a complete premium-quality solution that combines outstanding performance, superb acoustics and excellent compatibility for high-end TR4/SP3 systems.

Award-winning NH-U12S cooler

Tens of thousands of enthusiast users all over the world swear by the NH-U12S’ quality and performance. Recommended by more than 200 international hardware websites and magazines, it is renowned as being one of the best 120mm coolers on the market.

Tailored custom version for TR4/SP3 (Ryzen Threadripper / Epyc)

At 70x56mm, the copper contact surface of the TR4-SP3 version is more than double the size of the standard model. Tailored to fit the enormous integrated heat-spreaders (IHS) of AMD’s TR4/SP3-based processors, this customised design allows for an optimal heat flow from the CPU over the base to the heatpipes and on to the cooling fins.

120mm size for excellent performance and compatibility

With five heatpipes and the powerful NF-F12 120mm fan, the NH-U12S achieves outstanding cooling performance while maintaining excellent compatibility: At 158mm height and 125mm width, it is short enough to fit most modern tower cases and stays clear of the top PCIe slot on most motherboards.

NF-F12 120mm Focused Flow™ fan

Recommended by more than 150 hardware publications and thousands of enthusiasts world-wide, the Noctua's premium quality NF-F12 Focused Flow™ 120mm fan is renowned to combine superb static pressure, excellent heatsink performance and surprising quietness of operation.

PWM support and Low-Noise Adaptor

The NF-F12 120mm fan supplied with the NH-U12S supports PWM for convenient automatic speed control through the mainboard. In addition, the maximum fan speed can be reduced from 1500 to 1200rpm using the supplied Low-Noise Adaptor for even quieter operation.

Anti-vibration pads and fan-clips for second NF-F12 (optional)

For users who want to achieve even better performance by adding a second, optional NF-F12 fan to create a push/pull setup, the NH-U12S includes fan clips and an extra set of custom-designed anti-vibration pads that allow to off-set the rear fan by 5mm to improve acoustics in dual-fan mode.

SecuFirm2™ mounting system for TR4/SP3

Noctua’s SecuFirm2™ mounting systems have become synonymous with quality, safety and ease of use. The TR4-SP3 variant has been completely custom-designed for the new socket and is particularly easy to install: Put on the heatsink, fix the four spring-loaded screws and you’re done!

Offset mounting options for better PCIe clearance

In order to assure optimal compatibility with SLI and CrossFire multi-GPU setups, the SecuFirm2™ mounting for TR4/SP3 makes it possible to offset the cooler by 3 or 6mm towards the upper edge of the motherboard, thereby increasing clearance of the top PCIe slot.

NT-H1 thermal compound

Having received more than 100 awards and recommendations from hardware journalists around the world, Noctua's NT-H1 is a proven professional grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability.

6-year manufacturer’s warranty

Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-F12 features an MTTF rating of more than 150.000 hours and the entire NH-U12S package comes with a full 6-year manufacturer's warranty.

General
Notes and warnings Please note that the NH-U12S TR4-SP3 is a dedicated version for the AMD TR4/SP3 socket. Due to its customised larger base, it cannot be used on any other sockets and is incompatible with Noctua’s standard mounting kits.
Cooler Specification
Socket compatibility AMD TR4 & SP3
Height (without fan) 158 mm
Width (without fan) 125 mm
Depth (without fan) 45 mm
Height (with fan) 158 mm
Width (with fan) 125 mm
Depth (with fan) 71 mm
Weight (without fan) 695 g
Weight (with fan/s) 870 g
Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Max. TDP see TDP guide
Fan compatibility 120x120x25
Scope of Delivery
  • NF-F12 PWM premium fan
  • Low-Noise Adaptor (L.N.A.)
  • NT-H1 high-grade thermal compound
  • SecuFirm2™ TR4/SP3 mounting-kit
  • Anti-vibration pads and fan-clips for second NF-F12
  • Noctua metal case-badge
Warranty 6 Years
FAN Specification
Model Noctua NF-F12 PWM
Bearing SSO2
Max. Rotational Speed (+/- 10%) 1500 RPM
Max. Rotational Speed with L.N.A. (+/- 10%) 1200 RPM
Min. Rotational Speed (PWM, +/-20%) 300 RPM
Max. Airflow 93,4 m³/h
Max. Airflow with L.N.A. 74,3 m³/h
Max. Acoustical Noise 22,4 dB(A)
Max. Acoustical Noise with L.N.A. 18,6 dB(A)
Input Power 0,6 W
Voltage Range 12 V
MTTF > 150.000 h
