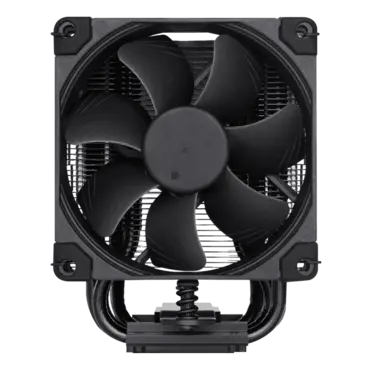

NH-U9S chromax.black, 125mm Height, 115W TDP, Copper/Aluminum CPU Cooler
- SKU: 14412633
- Manufacturer: NOCTUA
- MPN: NH-U9S chromax.black
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
The NH-U9S chromax.black is an all-black version of Noctua’s award-winning NH-U9S premium-quality quiet CPU cooler. Thanks to the same proven compact 92mm tower heatsink design and NF-A9 PWM fan, it stays true to the NH-U9S’s successful formula of fusing strong cooling performance with excellent quietness of operation and outstanding RAM, case and PCIe compatibility. At the same time, the chromax.black version with its black fan and black coated heatsink combines these assets with a sleek stealth look. Topped off with the renowned SecuFirm2™ multi-socket mounting system, Noctua’s enthusiast-grade NT-H1 thermal compound and a full 6-year manufacturer’s warranty, the NH-U9S chromax.black is a premium choice for customers who seek a compact, highly compatible 92mm heatsink that looks just as great as it cools.
| Cooler Specification | |
| Socket compatibility | Intel LGA2066, LGA2011-0 & LGA2011-3 (>Square ILM), LGA1200 LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required), AM4 |
| Height (without fan) | 125 mm |
| Width (without fan) | 95 mm |
| Depth (without fan) | 68 mm |
| Height (with fan) | 125 mm |
| Width (with fan) | 95 mm |
| Depth (with fan) | 95 mm |
| Weight (with fan) | 618 g |
| Material | Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
| NSPR | 93 |
| Max. TDP | see NSPR |
| Fan compatibility | 92x92x25 |
| Scope of delivery |
|
| Warranty | 6 Years |
| FAN Specification | |
| Model | Noctua NF-A9 PWM chromax.black |
| Bearing | SSO2 |
| Max. rotational speed (+/- 10%) | 2000 RPM |
| Max. rotational speed with L.N.A. (+/- 10%) | 1550 RPM |
| Min. rotational speed (PWM, +/-20%) | 400 RPM |
| >Max. airflow | 78,9 m³/h |
| >Max. airflow with L.N.A. | 62,6 m³/h |
| Max. acoustical noise | 22,8 dB(A) |
| Max. acoustical noise with L.N.A. | 16,3 dB(A) |
| Input power | 1,2 W |
| Voltage range | 12 V |
| MTTF | > 150.000 h |
