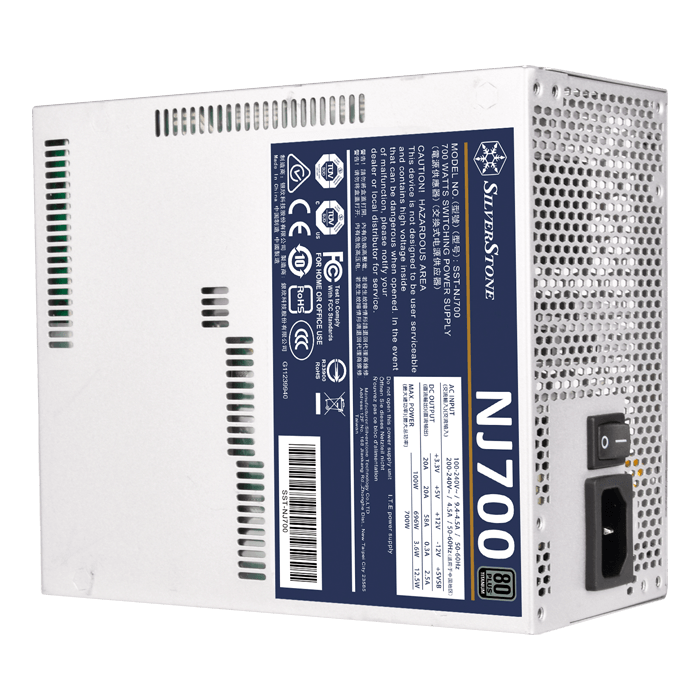

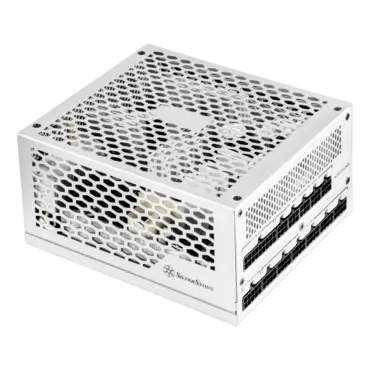

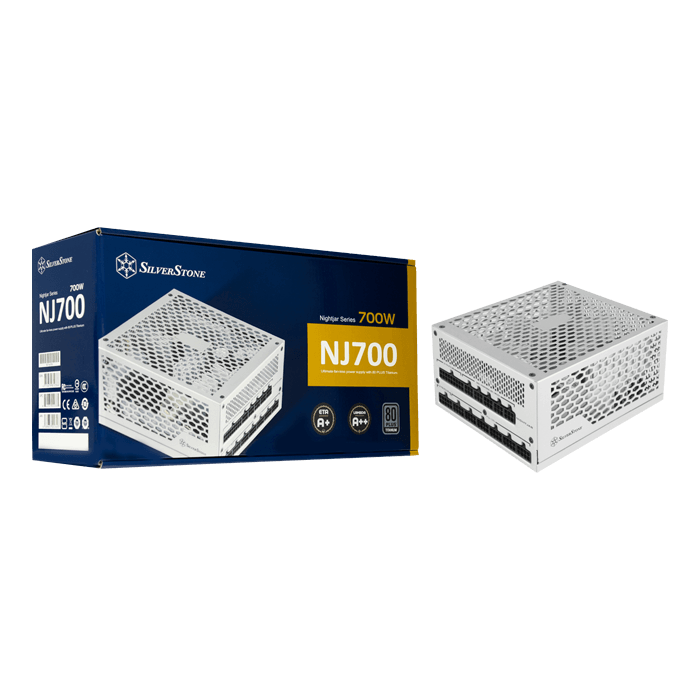

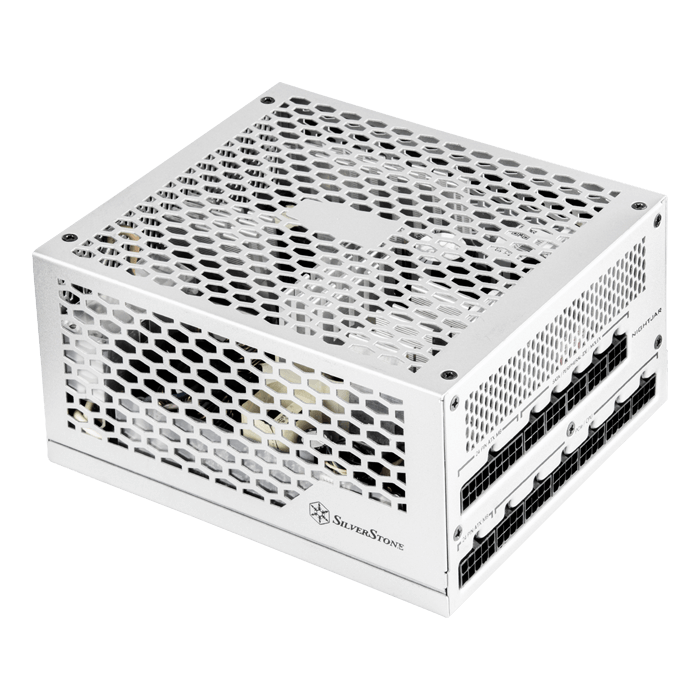

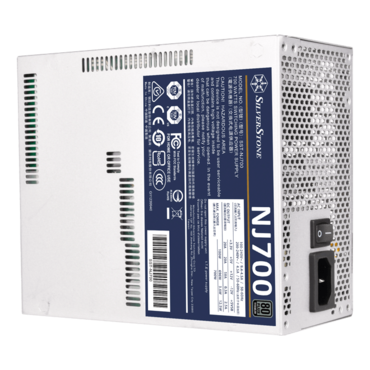

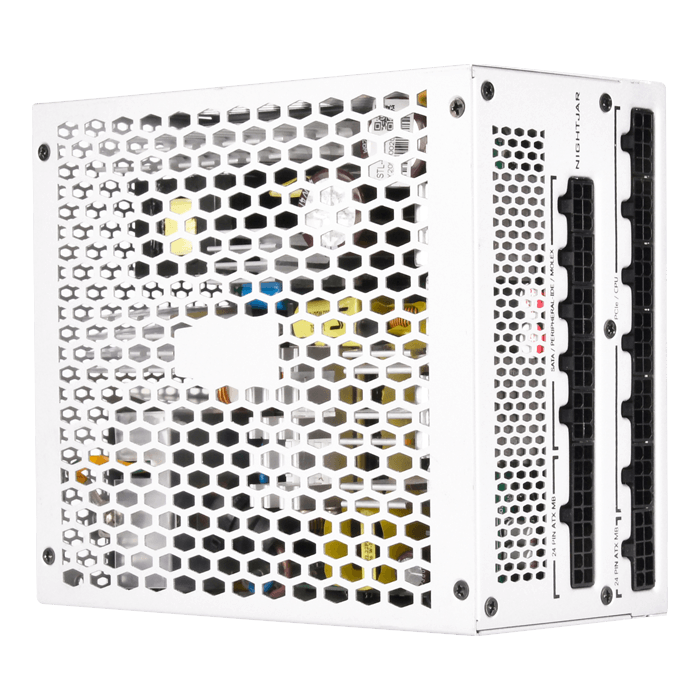

NJ700, 80 PLUS Titanium 700W, Fully Modular, ATX Power Supply
Quantity:
- SKU: 14033238
- Manufacturer: SILVERSTONE
- MPN: NJ700
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$313.65
NJ700, 80 PLUS Titanium 700W, Fully Modular, ATX Power Supply
Designed for 80 PLUS Titanium level of efficiency to reduce wasted heat and save on electricity
- Fan-less thermal solution, 0 dBA acoustics
- High quality construction with all Japanese capacitors
- 100% modular cables
- Strict ±2% voltage regulation and low ripple & noise
- 24/7 continuous power output with 45°C operating temperature
- Class-leading single +12V rail
- PCI-E 8pin and PCI-E 6pin connectors support
| Product No. | SST-NJ700 | ||||
| Max. DC Output | 700W | ||||
| Power density | 319W per liter | ||||
| Load Range | |||||
| +3.3V | +5V | +12V | +5VSB | -12V | |
| Max.(Amps) | 20A | 20A | 58A | 2.5A | 0.3A |
| Peak (Amps) | / | / | / | / | / |
| Min.(Amps) | 0A | 0A | 0A | 0A | 0A |
| Range (%) | ±2% | ±2% | ±2% | ±2% | ±10% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 35mV | 35mV | 40mV | 35mV | 60mV |
| Model (on safety) | SST-NJ700 | ||||
| Color | Silver (Lead-Free Paint) | ||||
| Combined +3.3V & +5V | 100W | ||||
| Combined +12V | 696W | ||||
| Input Voltage | 90 ~ 264 Vrms | ||||
| Input Frequency Range | 47Hz ~ 63Hz | ||||
| PFC | Active PFC (PF>0.95 at Full Load) | ||||
| Efficiency | 90%~94% @ 10% ~ 100% loading | ||||
| MTBF | 100,000 hours | ||||
| Operating temperature | 0°C ~ 45°C | ||||
| Protection |
Over Current Protection Over Power Protection Over Voltage Protection Over Temperature Protection Short Circuit Protection |
||||
| Connectors |

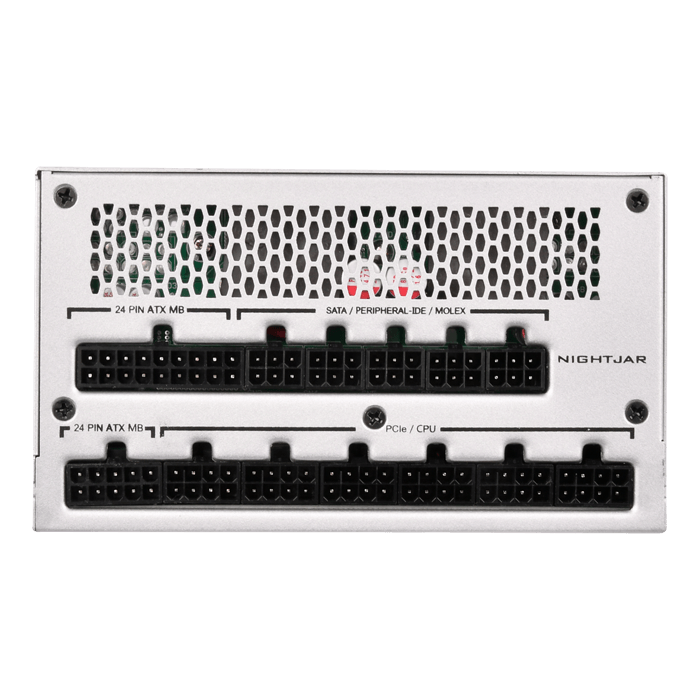

1 x 24 / 20-Pin motherboard connector(610mm) 2 x 8 / 4-Pin EPS / ATX 12V connector("650mm" x 2) 4 x 8 / 6-Pin PCIE connector("750mm" x 4 ) 12 x SATA connector("450mm / 120mm / 120mm / 120mm" x 3) 6 x 4-Pin Peripheral connector ("450mm / 120mm / 120mm" x 2) 1 x 4-Pin Floppy connector(100mm) N700 is not compatible with PP05-E and PP06 cables. |
||||
| Cooling System | Fan-less thermal solution | ||||
| Form factor | ATX | ||||
| Noise Level | 0 dBA | ||||
| Dimension |
150 mm (W) x 86 mm (H) x 170 mm (D) 5.91" (W) x 3.39" (H) x 6.69" (D) |
||||
| Weight | 2.3 kg | ||||
| Other |
GPU Support list Compatible with ATX12V v2.4 |
||||
