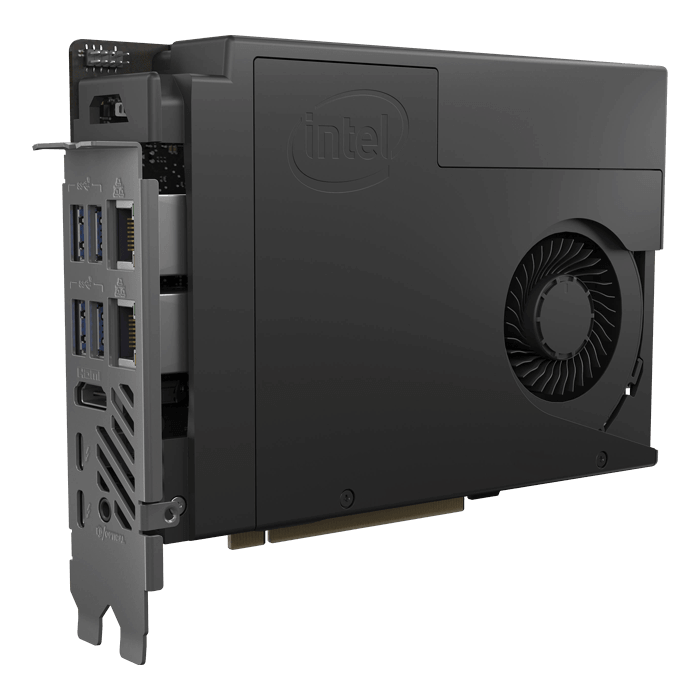

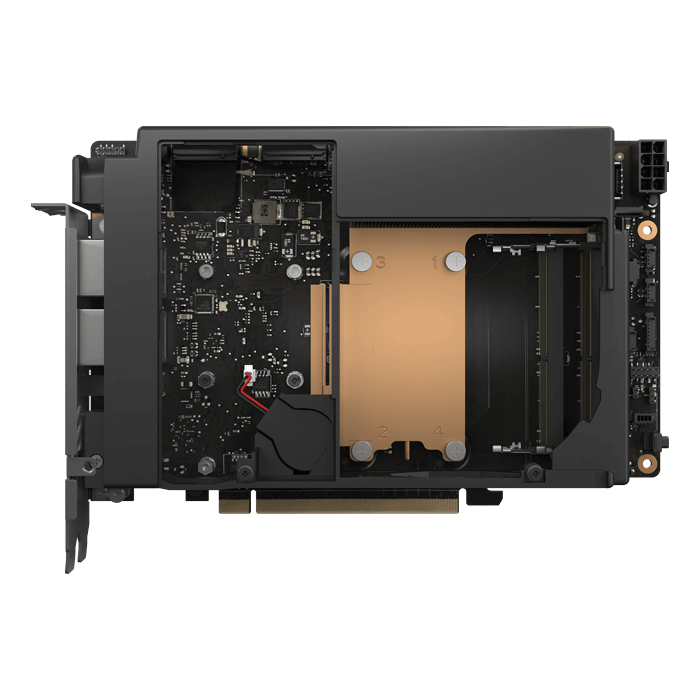

(NOTE "Must be purchased in quantities of 5. ") NUC 9 Extreme Compute Element - NUC9i5QNB, Intel® Core™ i5-9300H, 2x DDR4 SO-DIMM, 2x M.2, Intel® UHD Graphics 630, NUC Board

Quantity:
  • Release Date: 4/5/2024
  • SKU: 13233318
  • Manufacturer: INTEL
  • MPN: BKNUC9I5QNB
  • Availability: CURRENTLY UNAVAILABLE
Starting At
$526.84
Essentials
Product Collection Intel® NUC Compute Elements
Code Name Products formerly Ghost Canyon
Status Launched
Launch Date Q1'20
Supported Operating Systems Windows 10, 64-bit*, Linux*
Board Number NUC9i5QNB
Board Form Factor PCIe
Internal Drive Form Factor M.2 SSD
# of Internal Drives Supported 2
Board Chipset Mobile Intel® CM246 Chipset
Processor Included Intel® Core™ i5-9300H Processor (8M Cache, up to 4.10 GHz)
Intel® vPro™ Platform Eligibility No
# of Cores 4
# of Threads 8
Processor Base Frequency 2.40 GHz
Max Turbo Frequency 4.10 GHz
Warranty Period 3 yrs
Supplemental Information
Embedded Options Available No
Memory & Storage
Max Memory Size (dependent on memory type) 64 GB
Memory Types DDR4-2666
Max # of Memory Channels 2
Max Memory Bandwidth 42.6 GB/s
Max # of DIMMs 2
ECC Memory Supported No
Processor Graphics
Processor Graphics Intel® UHD Graphics 630
Integrated Graphics Yes
Graphics Output 2x Thunderbolt 3, HDMI 2.0a
# of Displays Supported 3
Expansion Options
PCI Express Revision Gen3
PCI Express Configurations 2x M.2 PCIe X4 slots (PCH)
M.2 Card Slot (storage) 2x via PCH (SATA or NVMe)
I/O Specifications
# of USB Ports 10
USB Configuration 4x rear USB 3.1g2, 2x Thunderbolt 3 (USB 3.1g2), 2x USB3.1g2 "Type-C" ports via internal header, 2x USB 2.0 via internal headers
USB Revision 3.1 Gen2, 2.0
USB 2.0 Configuration (External + Internal) 2x int.
Total # of SATA Ports 3
Max # of SATA 6.0 Gb/s Ports 3
RAID Configuration 2x M.2 SATA/PCIe SSD, SATA header (RAID-0 RAID-1)
Audio (back channel + front channel) 7.1 digital; L+R+mic (F); L+R+TOSLINK (R)
Integrated LAN Intel® Ethernet Connection i219-LM and i210-AT
Integrated Wireless Intel® Wi-Fi 6 AX200
Integrated Bluetooth Yes
S/PDIF Out Connector TOSLINK
Additional Headers CEC, 2x USB2.0, FRONT_PANEL
# of Thunderbolt™ 3 Ports 2
Package Specifications
Chassis Dimensions 203 x 131 x 38mm
Advanced Technologies
Intel® Optane™ Memory Supported Yes
Intel® Virtualization Technology for Directed I/O (VT-d) Yes
Intel® vPro™ Platform Eligibility No
TPM Yes
Intel® Rapid Storage Technology Yes
Intel® Virtualization Technology (VT-x) Yes
Intel® Platform Trust Technology (Intel® PTT) Yes
Security & Reliability
Intel® AES New Instructions Yes
