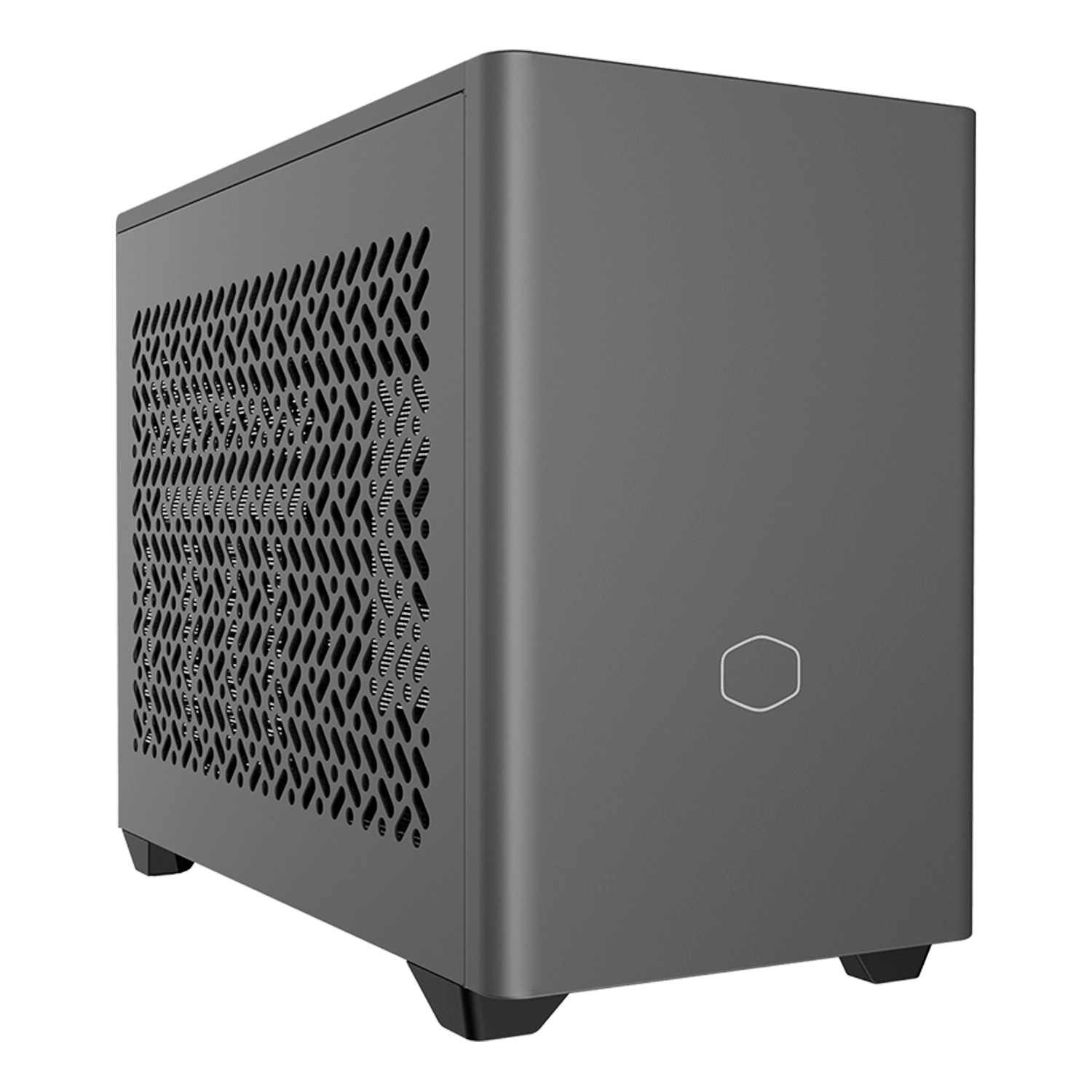

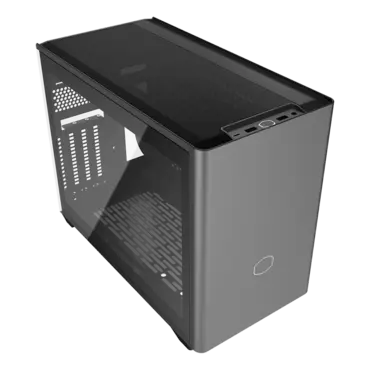

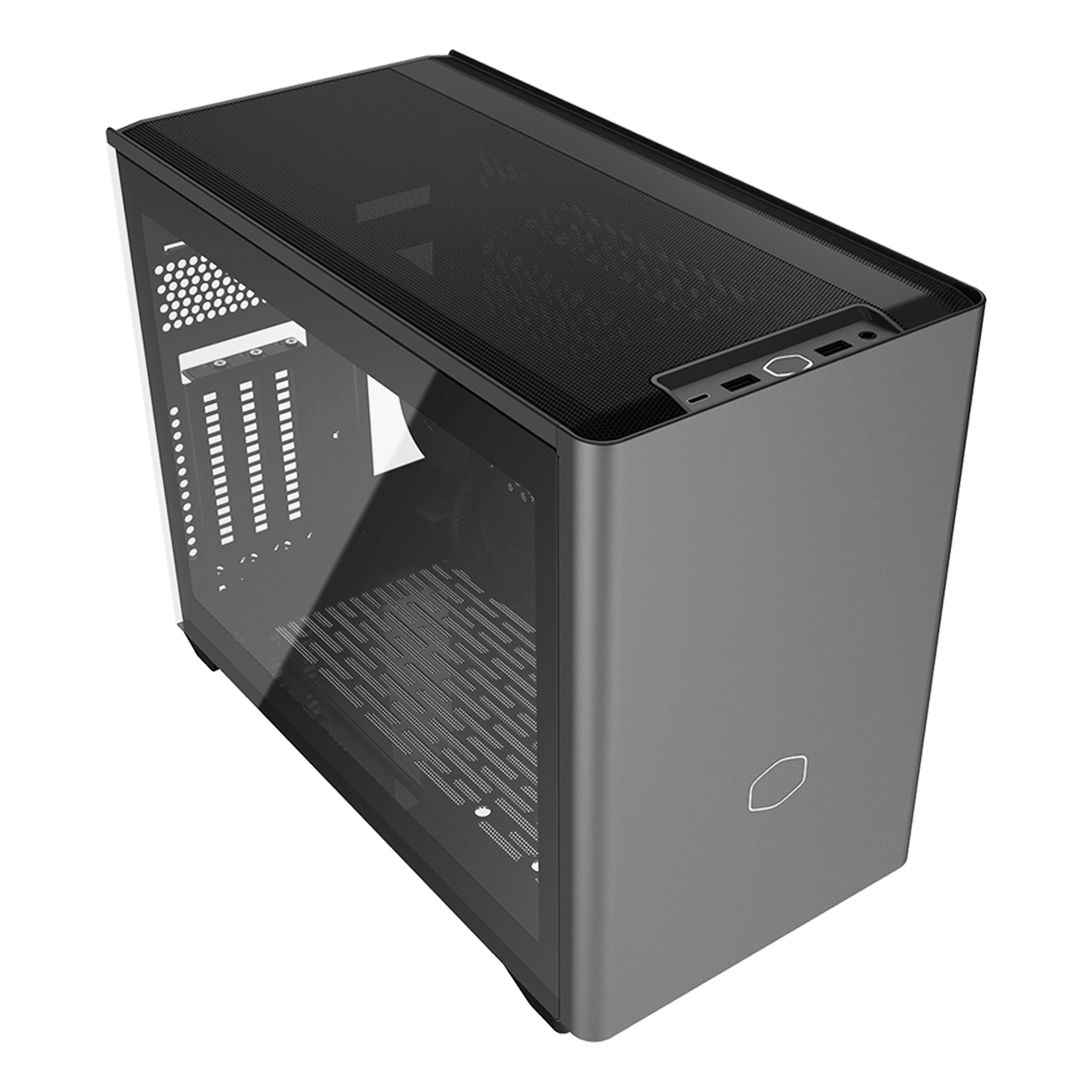

NR200P MAX V2, Tempered Glass, AIO, 850W PSU, Mini-ITX, Grey, Mini Tower Case
Quantity:
- SKU: 18814738
- Manufacturer: COOLER MASTER
- MPN: NR200PV2-MCNN85-SL0
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$430.57
NR200P MAX V2, Tempered Glass, AIO, 850W PSU, Mini-ITX, Grey, Mini Tower Case
The NR200P MAX V2 builds on its predecessor with key upgrades, including improved GPU support, enhanced ventilation, and the addition of a USB Type-C port. It integrates Cooler Master s expertise in custom 280mm water-cooling solutions and an ATX 3.0 PSU for advanced performance. Featuring the MAX series signature CPT package, exclusive gray color, and an accessible mechanical design, the NR200P MAX V2 is engineered to support next-generation components and accommodate even the largest GPUs. This all-in-one solution simplifies the process of building high-performance ITX systems, making it an ideal choice for enthusiasts. Bullet points: Compact ITX Design: Unleash top-tier performance with a sleek 18.25L footprint, exclusively designed to
The NR200P MAX V2 builds on its predecessor with key upgrades, including improved GPU support, enhanced ventilation, and the addition of a USB Type-C port. It integrates Cooler Master s expertise in custom 280mm water-cooling solutions and an ATX 3.0 PSU for advanced performance. Featuring the MAX series signature CPT package, exclusive gray color, and an accessible mechanical design, the NR200P MAX V2 is engineered to support next-generation components and accommodate even the largest GPUs. This all-in-one solution simplifies the process of building high-performance ITX systems, making it an ideal choice for enthusiasts. Bullet points: Compact ITX Design: Unleash top-tier performance with a sleek 18.25L footprint, exclusively designed to
- Comprehensive support for the latest GPUs
- Increase ventilation with New side panel
- Preinstalled ATX 3.0 PSU with 12VHPWR cable
- Featured a USB typeC port
| Product Number |
NR200PV2-MCNN85-SL0, NR200PV2-MCNN85-SL1 |
| Exterior Color | Grey |
| Materials - Exterior | SGCC Steel, Mesh, ABS Plastic |
| Materials - Left Side Panel | Tempered Glass x1, Steel x1 |
| Dimensions (L x W x H) |
377 x 185 x 292mm (incl. Protrusions), 360 x 185 x 274mm (excl. Protrusions) |
| Volume | 18.25L |
| Motherboard Support | Mini-ITX, Max. size: 170 x 180mm |
| Expansion Slots | 3 |
| Drive Bays - 5.25" ODD | 0 |
| Drive Bays - 3.5" HDD | 1 (Max. 2, remove bottom fan) |
| Drive Bays - 3.5" / 2.5" Combo | 1 |
| Drive Bays - 2.5" SSD | 1 (Max. 2) |
| I/O Panel - USB Ports | 2x USB 3.2 Gen 1 (USB 3.0), 1x USB 3.2 Gen2x2 Type C |
| I/O Panel - Audio In / Out | 1x 3.5mm Headset Jack (Audio + Mic) |
| Included Accessories | 1x PCIe 4.0 x16 Riser Cable, 1x GPU Holder |

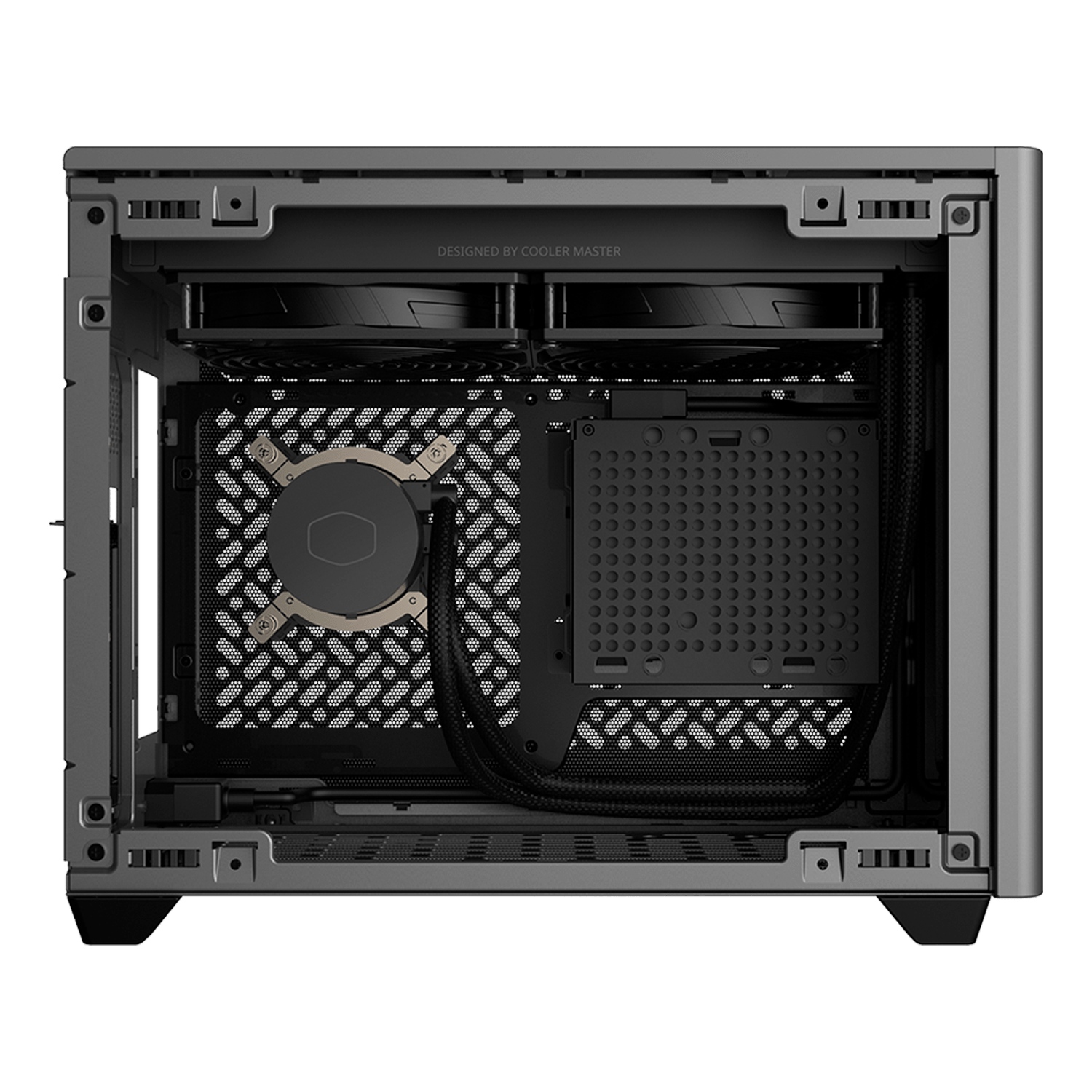

| Included CPU Cooling Solution | 2x 140mm SickleFlow PWM, 280mm Radiator, Gen 3 Cooler Master Pump / CPU Block |
| Included Power Supply Unit | V SFX Gold 850W ATX 3.0 |
| Fan Support - Top | 2 x 120mm / 2 x 140mm |
| Fan Support - Bottom | 2 x 120mm (1x max 15mm, w/o 3.5" HDD at the bottom) |
| Radiator Support - Top | 120 / 140 / 240 / 280mm |
| Clearances - CPU Cooler | 67mm |
| Clearances - Power Supply | 130mm |
| Clearances - Graphics Card | Exceed front bracket: L: 357.6mm (incl. power connector), H: 160mm (incl. power connector), W: 73mm (triple slot) |
| Clearances - Graphics Card | Not exceed front bracket: L: 334mm (incl. power connector), H: 160mm (incl. power connector), W: 80mm (triple slot) |
| Dust Filters | Bottom, Left, Right, Top Panels |
| Power Supply Support | SFX, SFX-L |
| Warranty | 2 years (Case), 2 years (Thermal Solution), 10 years (Power Delivery) |
| Size | Mini ITX |
