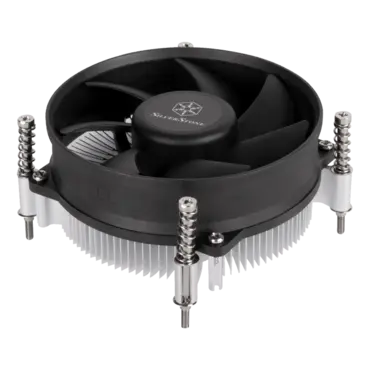

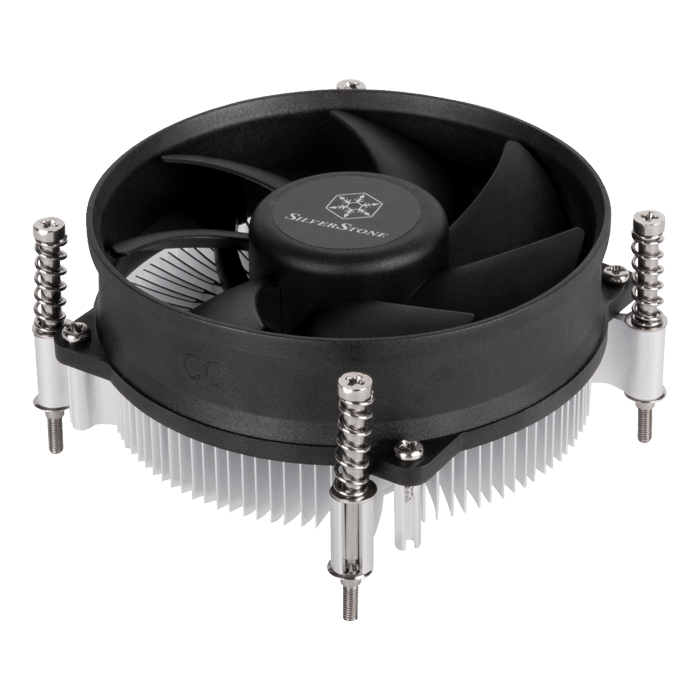

NT09-1700, 45mm Height, 60W TDP, Aluminum CPU Cooler

  • SKU: 14812768
  • Manufacturer: SILVERSTONE
  • MPN: SST-NT09-1700
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
NT09-1700, 45mm Height, 60W TDP, Aluminum CPU Cooler

Low-profile design

At only 45mm height, NT09-1700 is the ideal CPU cooler for space-limited applications utilizing Intel LGA1700 platform

  • Supports Intel LGA 1700 processors
  • Designed for low profile systems at only 45mm tall
  • Custom quiet 92mm fan for excellent cooling and low noise
  • Extruded aluminum fins for good heat dissipation
  • Reinforced back plate design reduces motherboard bending to provide tighter CPU contact
Model No. SST-NT09-1700
Application Intel LGA 1700
Material Aluminum core, extruded aluminum fins
Fan dimension 95mm (W) x 25mm (H) x 95mm (D)
3.74" (W) x 0.98" (H) x 3.74" (D)
Speed (R.P.M.) 500 ~ 2,500 RPM
Air Flow (CFM) 5.6 ~ 46.4 CFM
Air pressure 0.18 ~ 3.14mmH2O
Noise 13.6 ~ 32.5 dBA
Rated Voltage 12V
Rated Current 0.15A
Bearing Hydraulic bearing
Fan MTTF 30,000 hours
Connectors 4 Pin PWM
Net weight 225g
Dimension 96mm (W) x 45mm (H) x 96mm (D)
3.78" (W) x 1.77" (H) x 3.78" (D)
