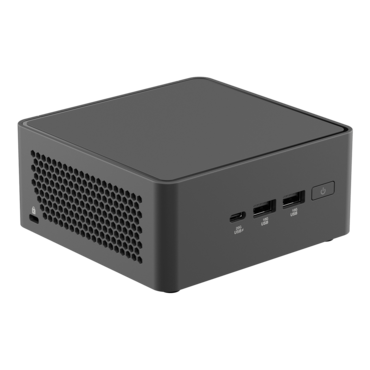

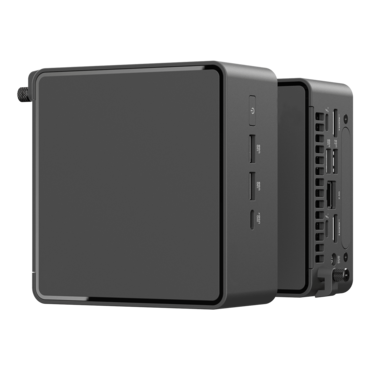

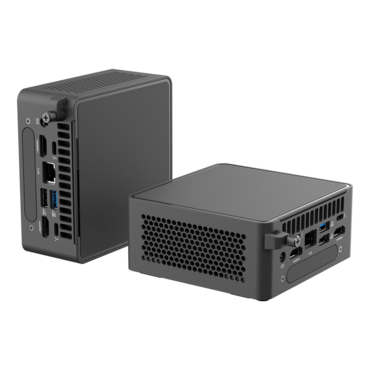

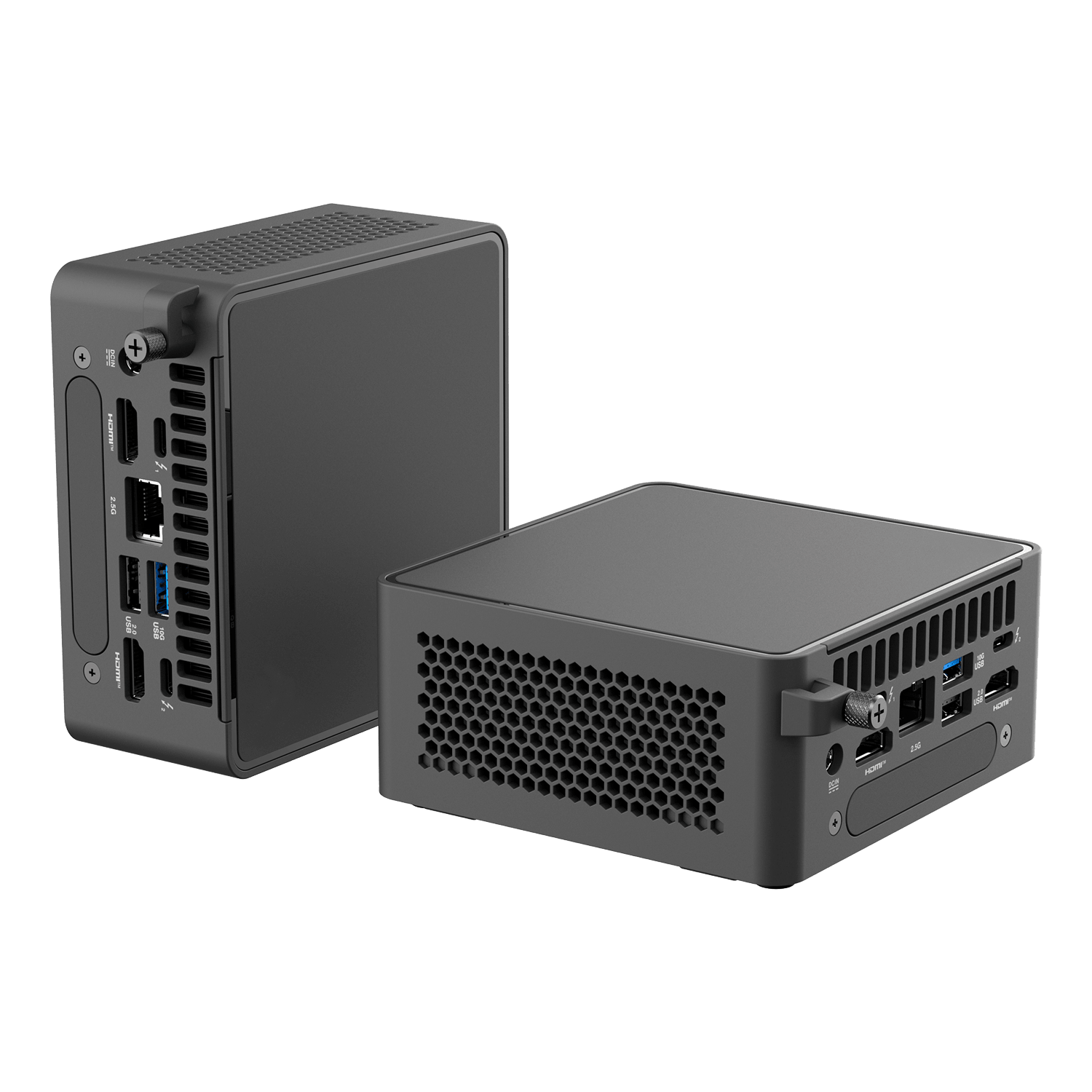

NUC 15 Pro NUC15CRHU7, Intel® Core™ Ultra 7 255H, 2x DDR5 SO-DIMM Memory, 2x M.2 NVMe SSD, Intel® Arc 140T GPU, Tall Barebone Kit
- SKU: 18510490
- Manufacturer: ASUS
- MPN: RNUC15CRHU70000U
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
- AI-Optimized Power:Powered by the latest Series 2 Intel® Core™ Ultra 7 255H processor with integrated Intel® Arc 140T Graphics
- Superior Connectivity: Features Intel® Wi-Fi 7 with up to 2.4X faster transfer rates, Wi-Fi Proximity Sensing, and certified Bluetooth® for enhanced audio quality and seamless connections

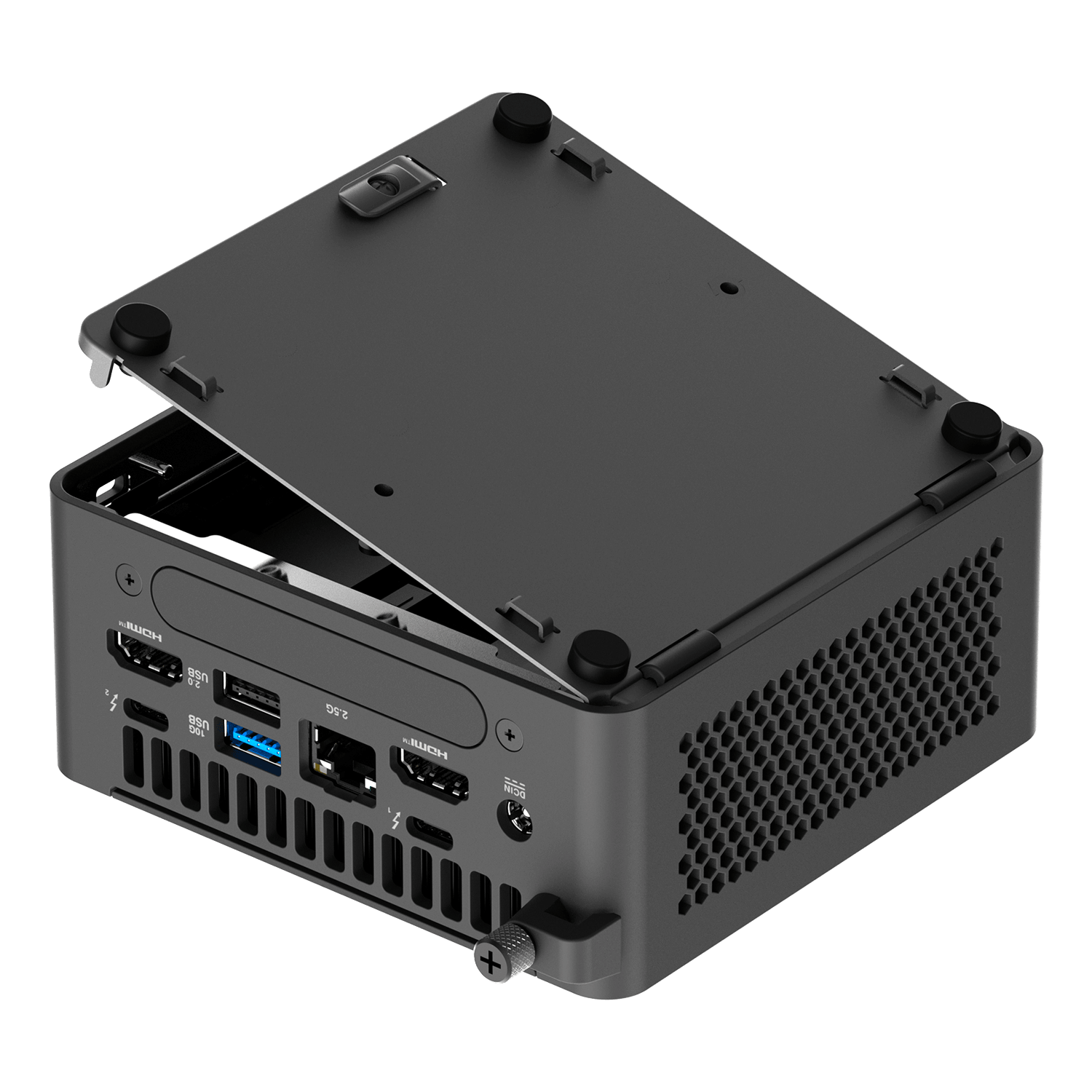

- Integrated & Expandable:Compact design with a tool-less 2.0 chassis for quick upgrades, offering 6X faster integration gen/gen
- Exceptional Display Potential: Connect to four 4K displays via HDMI 2.1 and Thunderbolt™ 4, with headless emulation. New sync power-off feature automatically shuts the screen for better energy efficiency
- Reliable & Sustainable:Features 24/7 reliability with rigorous torture testing and MIL-STD-810H certification, ensuring durability in extreme conditions. The advanced cooling system enhances reliability by maintaining optimal performance, and eco-friendly packaging reflects a commitment to sustainability
| ASUS Logo | No |
| ASUS NUC Logo | No |
| Color | Black |
| OS Support |
"Supports Windows 11 Home 64-bit Windows 11 Pro 64-bit Windows 11 IoT Enterprise 64-bit Windows 11 Pro Education Ubuntu 24.04 LTS 64-bit RedHat Enterprise Linux 64-bit *No OS installed at shipment" |
| CPU | Intel® Core™ Ultra 7 255H, cTDP 40W |
| Chipset | Integrated |
| Graphics | Intel® Arc 140T GPU |
| Memory | 2 x SO-DIMM, Up to DDR5-5600, 48GB*2 OR 2 x CSO-DIMM, Up to DDR5-6400, 48GB*2 |
| Storage |
1 x M.2 2280 PCIe Gen5x4, supports 128GB~8TB NVMe SSD 1 x M.2 2242 PCIe Gen4x4, supports 128GB~2TB NVMe SSD |
| Wireless Network | Intel® Wi-Fi 7 BE202 (Gig+), Bluetooth 5.4 |
| LAN | Intel® Ethernet Controller I226-V, 2.5G |
| Audio | No Analog Audio Support - Digital Audio |
| TPM | fTPM |
| Card Reader | None |
| HDMI CEC | Yes, 2 ports on back panel |

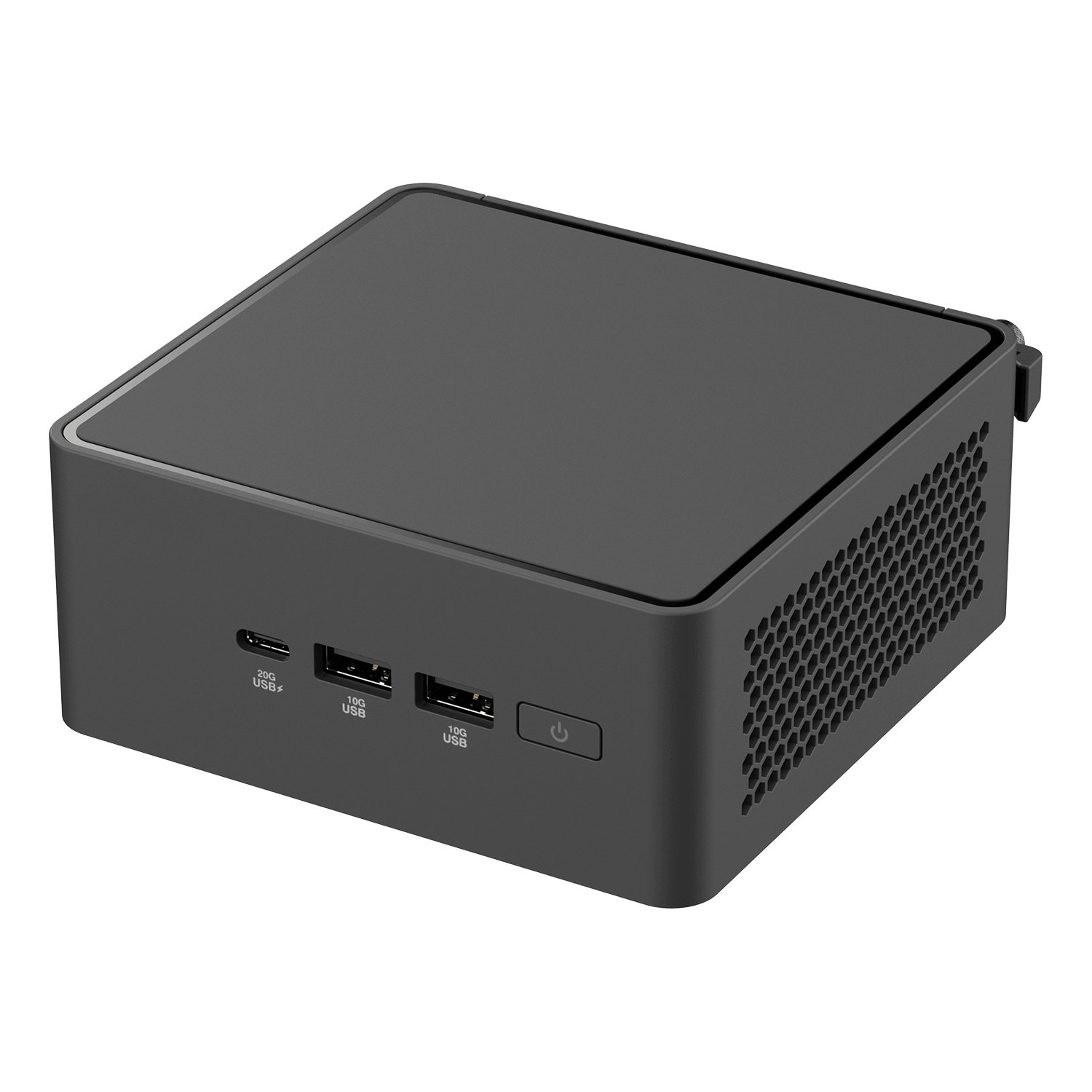

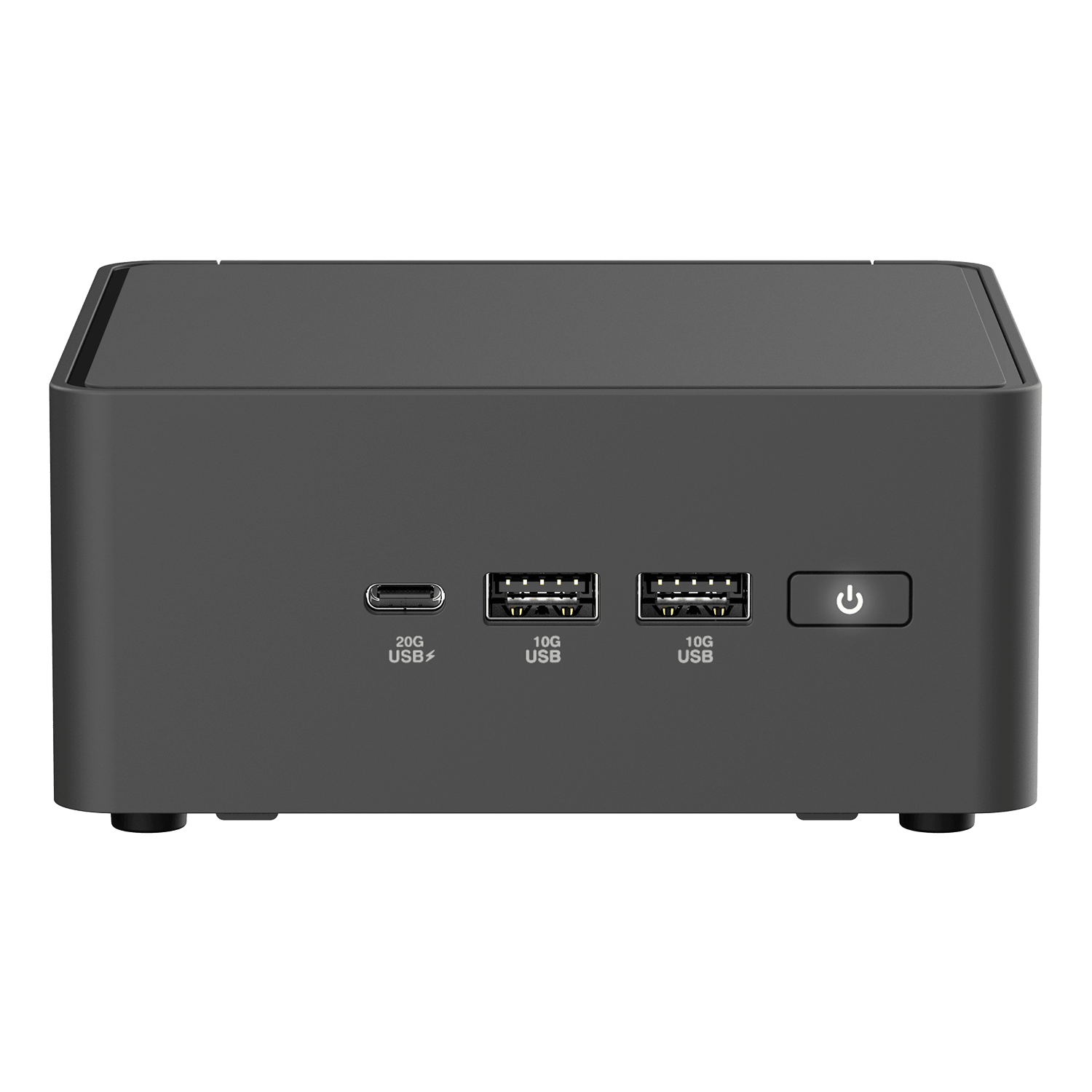

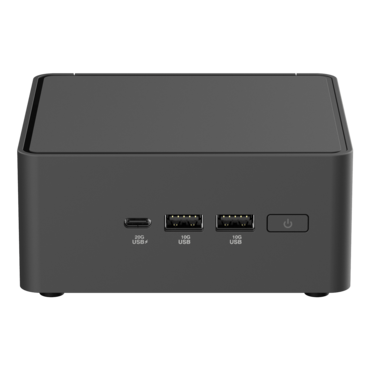

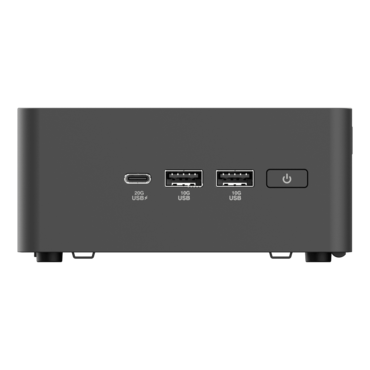

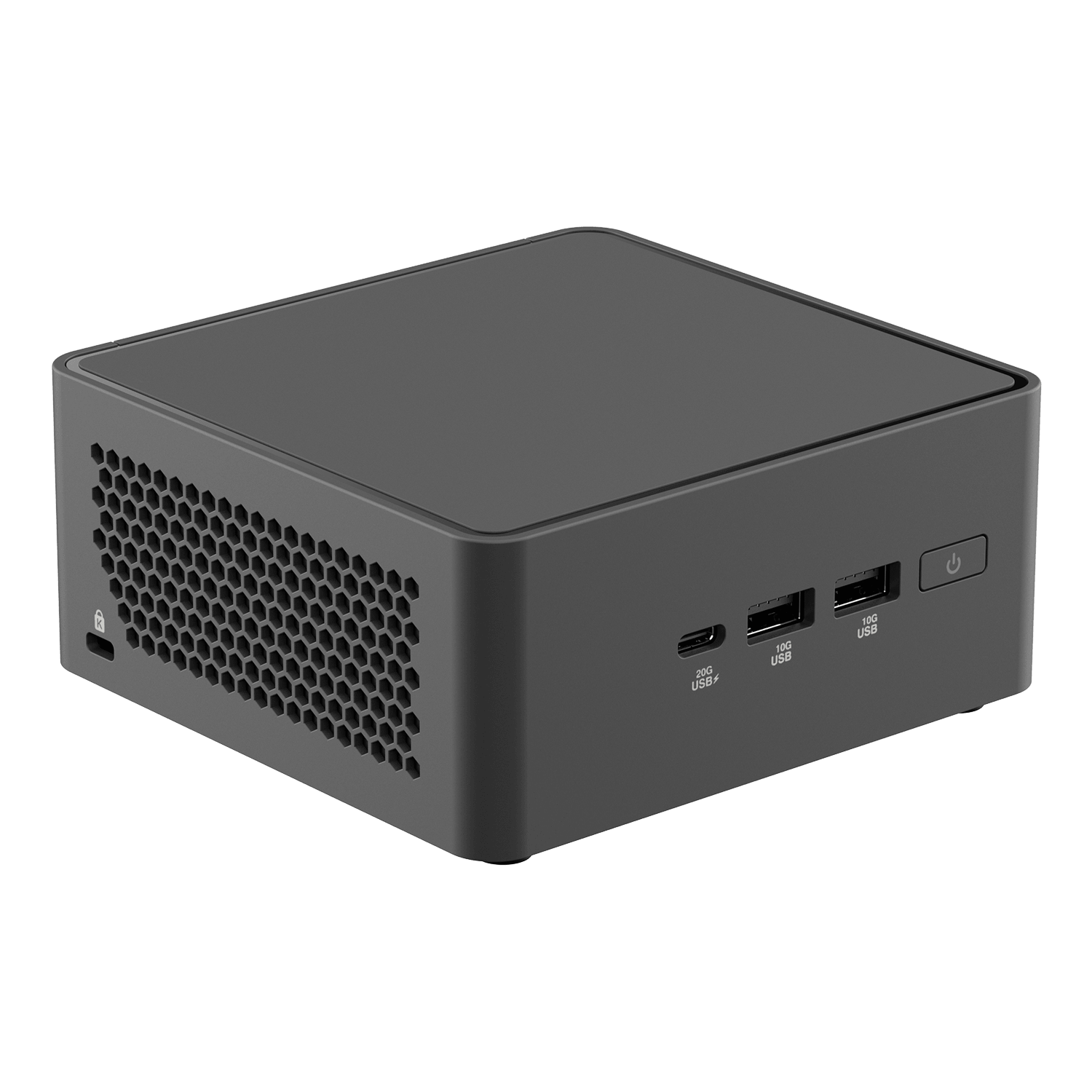

| Front I/O Ports | 1 x USB 3.2 Gen2x2 Type-C 2 x USB 3.2 Gen2 Type-A |

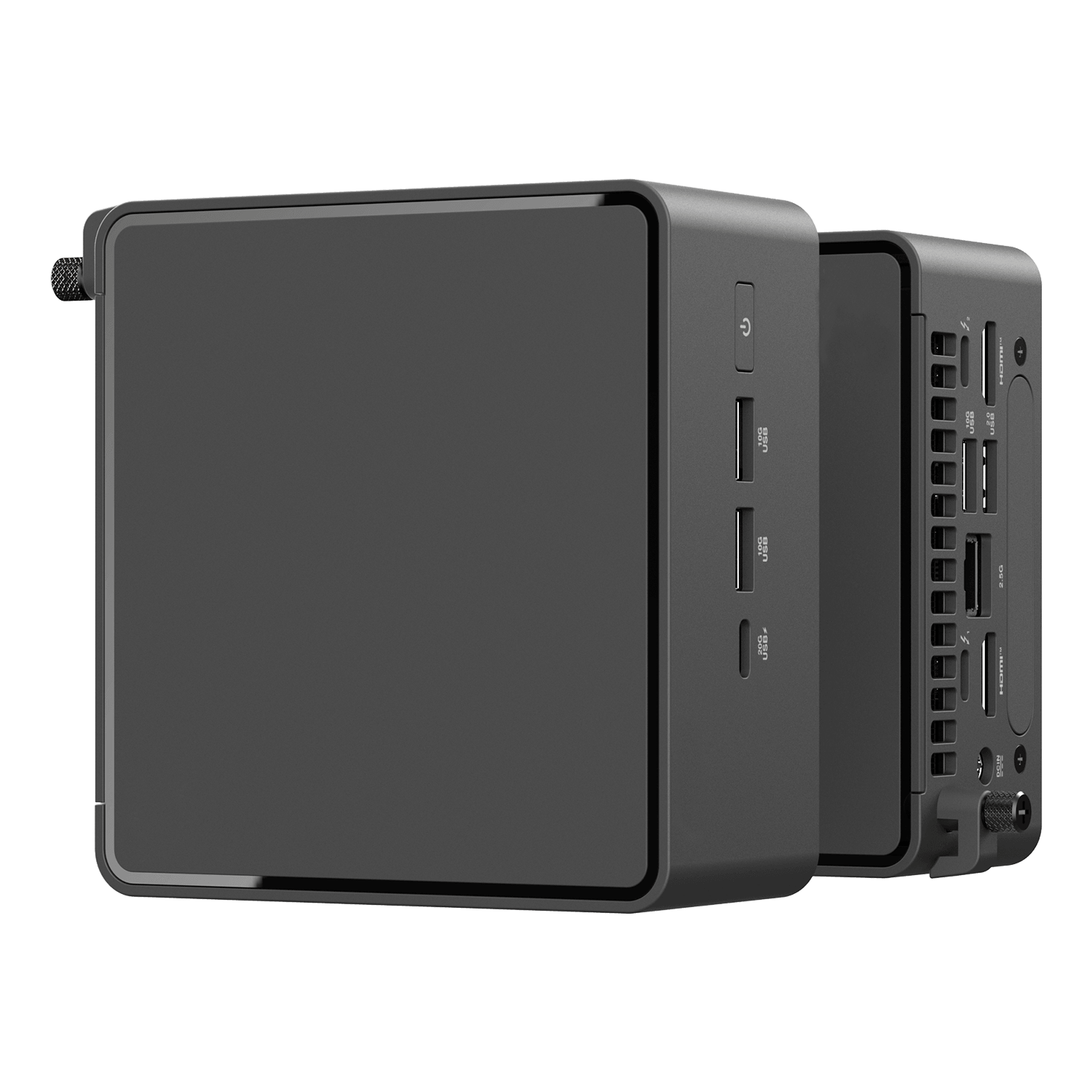

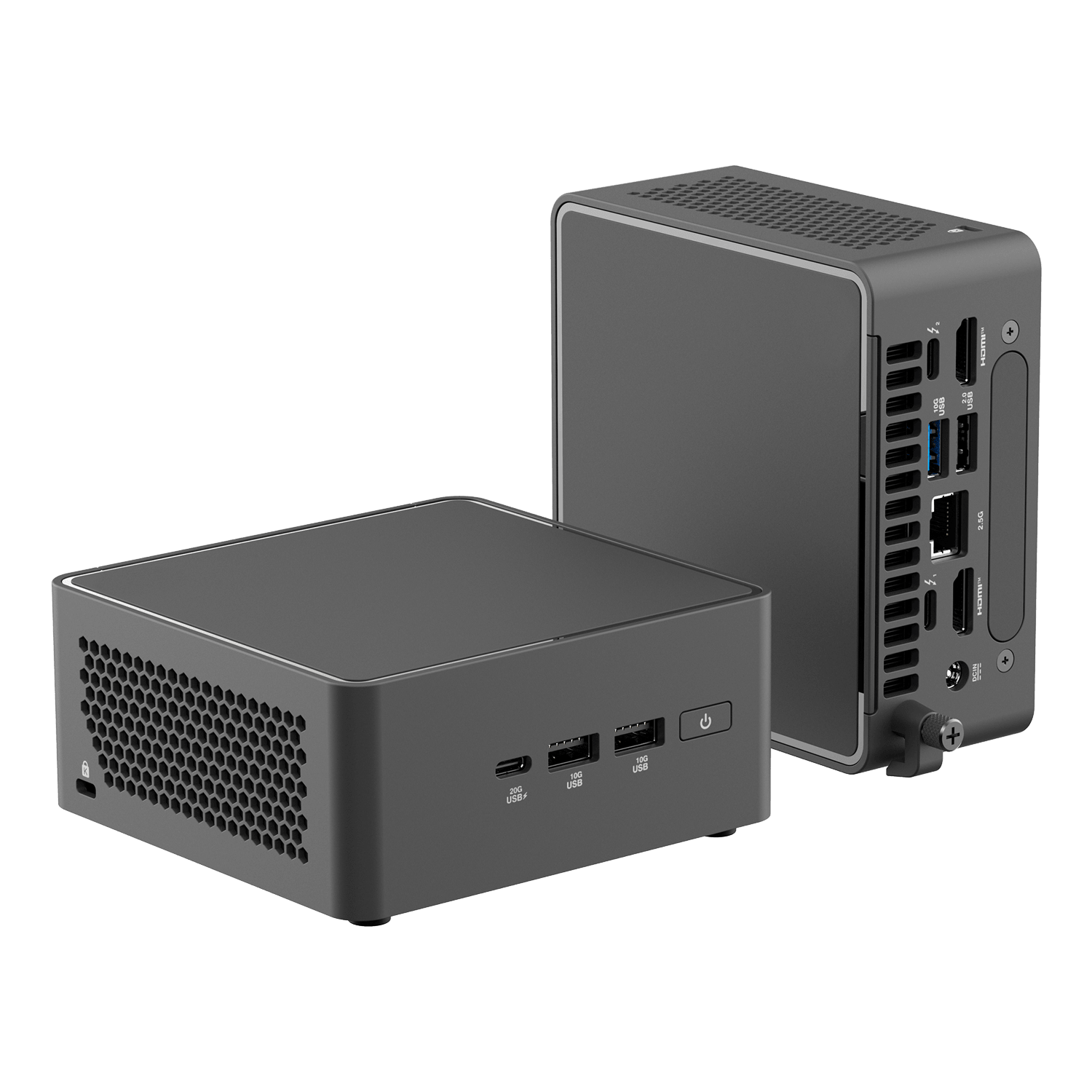

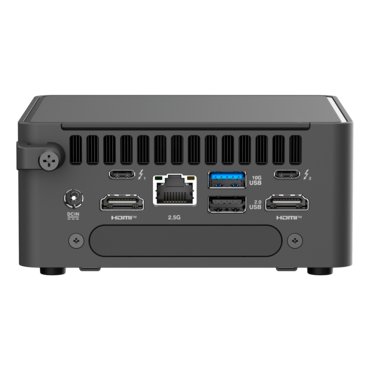

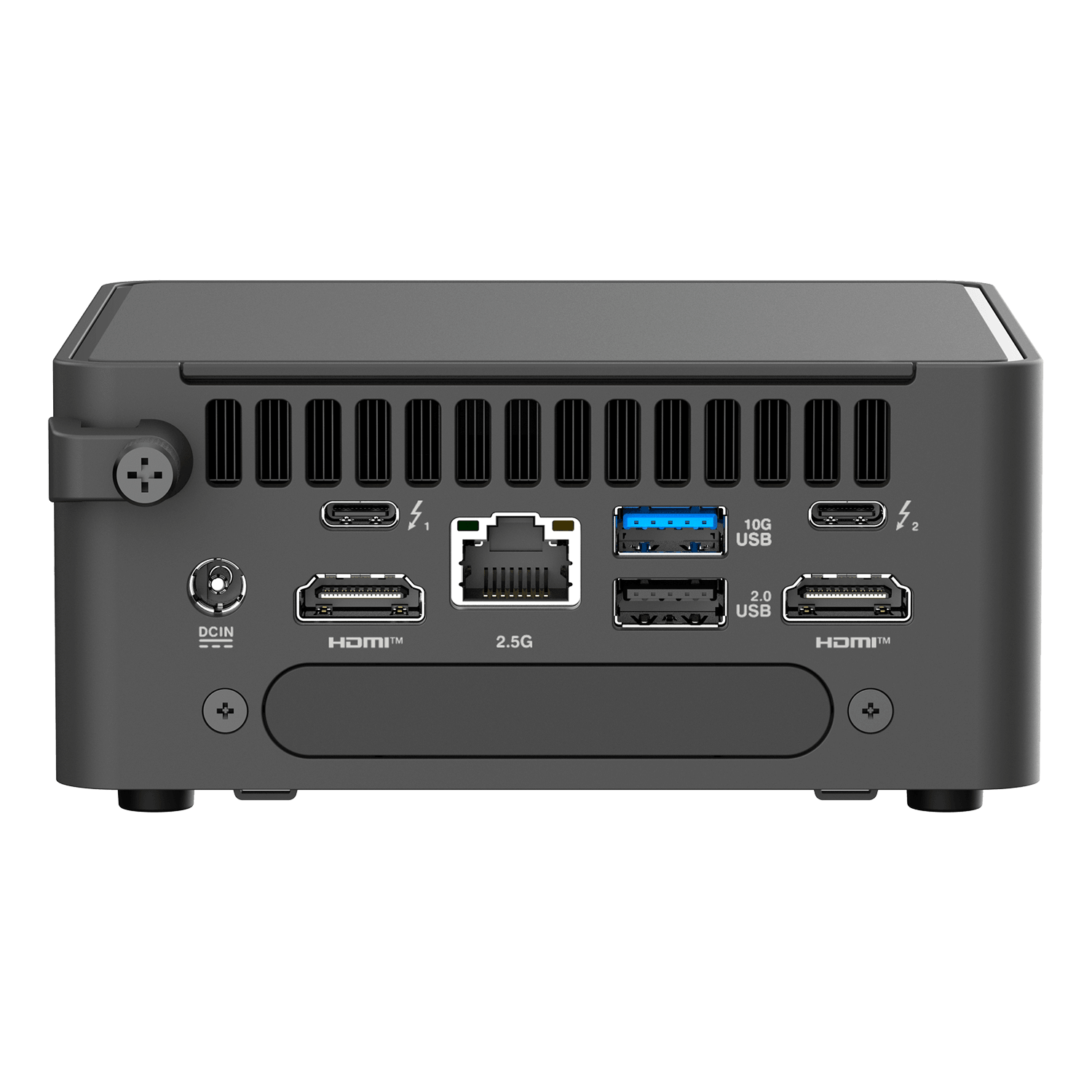

| Back I/O Ports |
2 x Thunderbolt 4 Type-C w/ DisplayPort 2.1 1 x USB 3.2 Gen 2 Type-A 1 x USB 2.0 Type-A 2 x HDMI 2.1 (TMDS Compatible) 1 x RJ45 LAN 1 x DC-in |

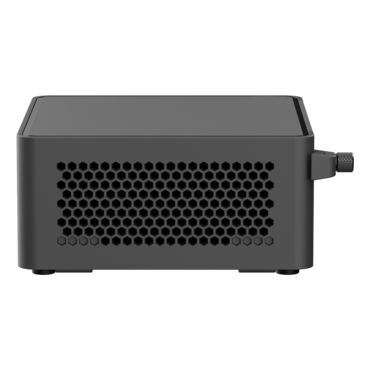

| Side I/O Ports | 1 x Kensington Lock |
| Power Supply | Power Adapter Meets DOE Level VI, efficiency >=88% 19VDC, 6.32A, 120W Power Adapter |
| Product Dimensions (W x D x H) | 117mm x 112mm x 54mm |
| Product Weight | 565g |
| Color Box Dimensions (W x D x H) | 151mm x 183mm x 127mm |
| Packaged Weight | 1385g |
| Operating Temperature | 0°C - 40°C |
| Storage Temperature | -40°C to 60°C |
| Humidity | 0%-92% non-condensing |
| Noise Level (idle mode to full load mode) | 26dBA~45dBA |
| Accessories |
AC Adapter+Power Cord VESA Bracket and Screws Cable Clip Safety/Caution/Regulatory Insert Warranty Card |
| Note |
Up to 7.1 multichannel (or 8-channel) digital audio on HDMI and DP Type C ports Power cord included is region specific, and some SKUs do not include the power cord |
