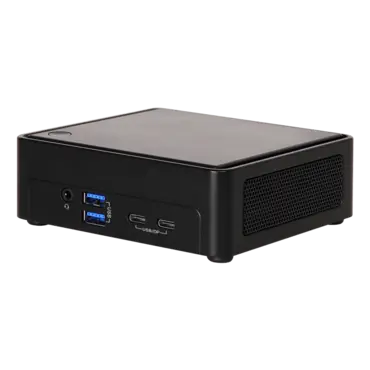

NUCS BOX-1360P/D4, Intel® Core™ i7-1360P, 2x DDR4 SO-DIMM, M.2, Intel® Iris® Xe Graphics, Mini PC Fanned Barebone

Quantity:
  • SKU: 15783469
  • Manufacturer: ASROCK
  • MPN: NUCS BOX-1360P/D4
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$645.35
Quantity:
  • Intel® 13th Gen (Raptor Lake-P) Core™ Processors i7-1360P
  • 2 x 260-pin SO-DIMM DDR4 3200MHz up to 64GB (32GB per DIMM)
  • 1 x USB4/Thunderbolt™4, 5 x USB 3.2 Gen2, 1 x M.2 Key M, 1 x M.2 Key E (WiFi-6E Module)
  • 1 x Intel 2.5 Gigabit LAN
  • Supports Quad display, 2 x HDMI 2.0b, 2 x DP 1.4a (from Type-C)
  • TPM 2.0 onboard IC
  • Supports Intel® vPro
  • 19V/90W Power Adapter
  • 117.5 x 110.0 x 38mm(4.63" x 4.33" x 1.50"), Slim Type Fanned Barebone
Processor System
CPU Intel® 13th Gen (Raptor Lake-P) Core™ Processors
NUCS BOX-1360P/D4( i7-1360P, 4P+8E)
Chipset MCP
BIOS AMI SPI 256 Mbit
Memory
Technology Dual Channel DDR4 3200 MHz
Capacity 64GB (32 GB per DIMM)
Socket 2 x 260-pin SO-DIMM
Graphics
Controller Intel® Iris® Xe Graphics
HDMI HDMI 2.0b
Max resolution up to 4096x2160@60Hz
DisplayPort DisplayPort 1.4, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay Quad-Display (Included 2 outputs from Type-C)
Expansion Slot
M.2/WLAN 1 x Wi-Fi 6E 802.11ax + BT 5.3
Audio
Interface Realtek ALC233, High Definition Audio.
Ethernet
Controller/ Speed Intel® I226LM with 10/100/1000/2500 Mbps, supports vPro
Connector 1 x RJ-45

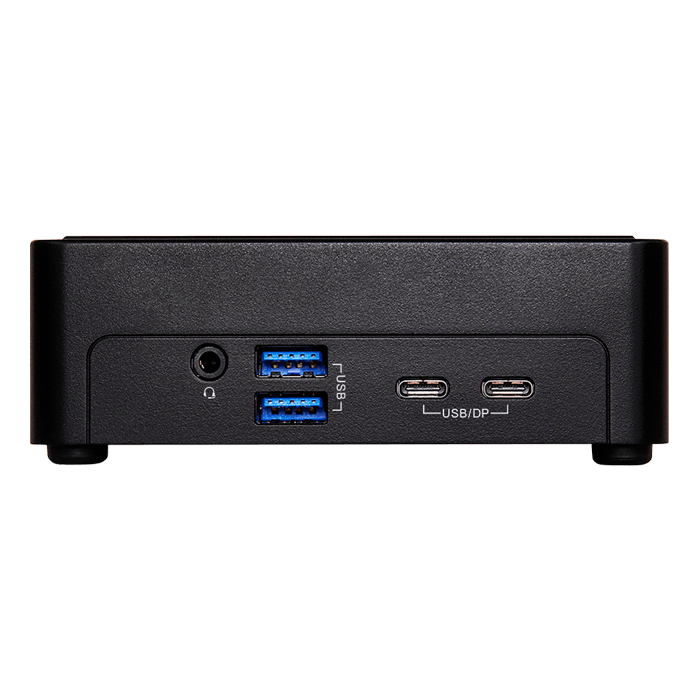

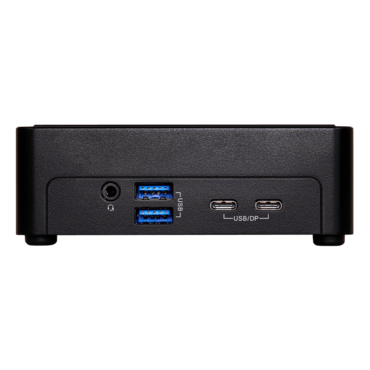

Front I/O
USB 2 x USB 3.2 Gen2 (Type A)
1 x USB4/Thunderbolt™ 4 (Supports DP 1.4a display output)
1 x USB 3.2 Gen2 (Type-C, Supports DP 1.4a display output)
*For Thunderbolt support, please refer to support list.
Audio 1 (headphone & microphone jack)

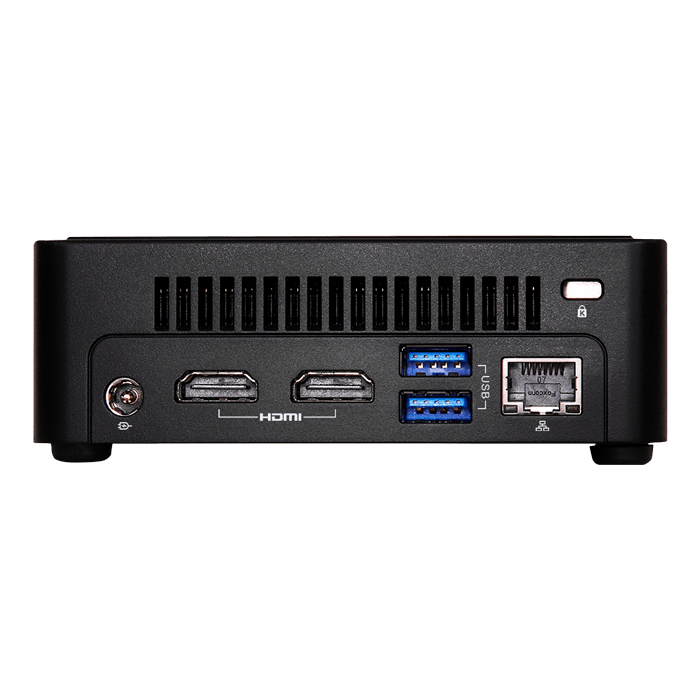

Rear I/O
HDMI 2 x HDMI 2.0b
Ethernet 1 x 2.5 Gigabit LAN
USB 2 x USB 3.2 Gen2 (Type-A)
DC Jack 1
Storage
M.2 1 x M.2 (Key M, 2242/2280) with PCIe Gen4 x4 for SSD
Watchdog Timer
Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR 12V~19V DC-In Jack
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp 0ºC ~ 40ºC
Storage Temp -40° C – 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%
Mechanical
Mounting VESA mount
Dimensions (L x W x H) 117.5 x 110.0 x 38mm(4.63" x 4.33" x 1.50")
Weight Net Weight:1.0Kg
Others
OS Support Windows 10/11
TPM TPM 2.0 onboard IC
Certifications CE, FCC
Packing List 1 x 19V/90W Power Adapter
1 x VESA mount bracket
