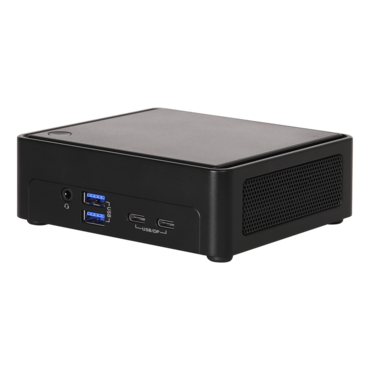

NUCS BOX-255H - TAA Compliant, Intel® Core™ Ultra 7 255H, 2x DDR5 SO-DIMM, 2x M.2 NVMe SSD, Intel® Arc™ Graphics, Mini PC Barebone
- SKU: 18667208
- Manufacturer: ASROCK
- MPN: NUCS BOX-255H
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$701.14
- Intel® Core™ Ultra processors (Arrow Lake-H)
- 2 x 262-pin CSO-DIMM DDR5 6400MHz up to 96GB (48GB per DIMM)
- 1 x USB4/Thunderbolt™4, 5 x USB 3.2 Gen2, 2 x M.2 Key M, 1 x M.2 Key E (WiFi-6E Module)
- 1 x Intel 2.5 Gigabit LAN
- Supports Quad display, 2 x HDMI 2.1 TMDS, 1 x DP 2.1 (from Type-C), 1 x DP 1.4a (from Type-C)
- Intel® PTT
- Supports Intel® vPro, VMD RAID 0/1
- 19V Power Adapter
- 117.5 x 110.0 x 38mm (4.63" x 4.33" x 1.50"), Slim Type Fanned Barebone
| Processor System | |
| CPU | Intel® Core™ Ultra processors (Arrow Lake-H) NUCS BOX-255H (Ultra 7 255H, 6P+8E) |
| Chipset | MCP |
| BIOS | AMI SPI 256 Mbit |
| Memory | |
| Technology | Dual Channel DDR5 6400 MHz |
| Capacity | 96GB (48 GB per DIMM) |
| Socket | 2 x 262-pin SO-DIMM |
| Graphics | |
| Controller | Intel® Arc™ 140T graphics |
| HDMI | HDMI 2.1 TMDS Max resolution up to 4096x2160@60Hz |
| DisplayPort | DisplayPort 1.4a/ 2.1, DP++ Max resolution up to 4096x2160@60Hz |
| MultiDisplay | Quad-Display (Included 2 outputs from Type-C) |
| Expansion Slot | |
| M.2/WLAN | 1 x Wi-Fi 6E 802.11ax + BT 5.3 |
| Audio | |
| Interface | Realtek ALC256, High Definition Audio. |
| Ethernet | |
| Controller/ Speed | LAN1: Intel® I226LM with 10/100/1000/2500 Mbps |
| Connector | 1 x RJ-45 |

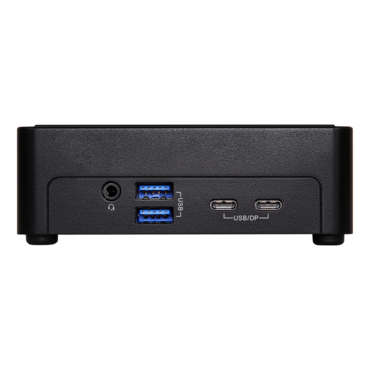

| Front I/O | |
| USB | 2 x USB 3.2 Gen2 (Type A) 1 x USB4/Thunderbolt™ 4 (Supports DP 2.1 display output) 1 x USB3.2 Gen2x2 (Type-C, Supports DP1.4a display output) *For Thunderbolt support, please refer to support list. |
| Audio | 1 (headphone & microphone jack) |

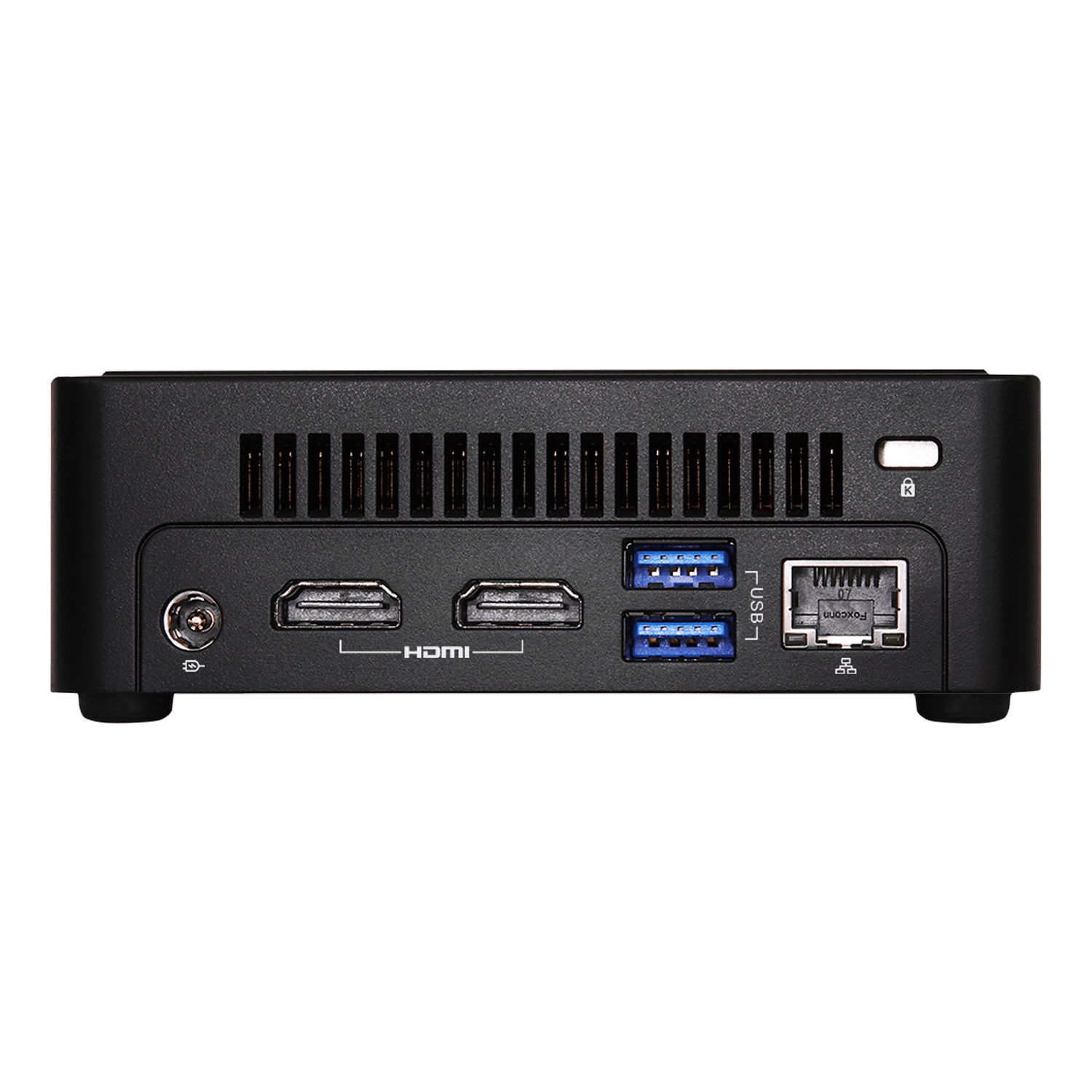

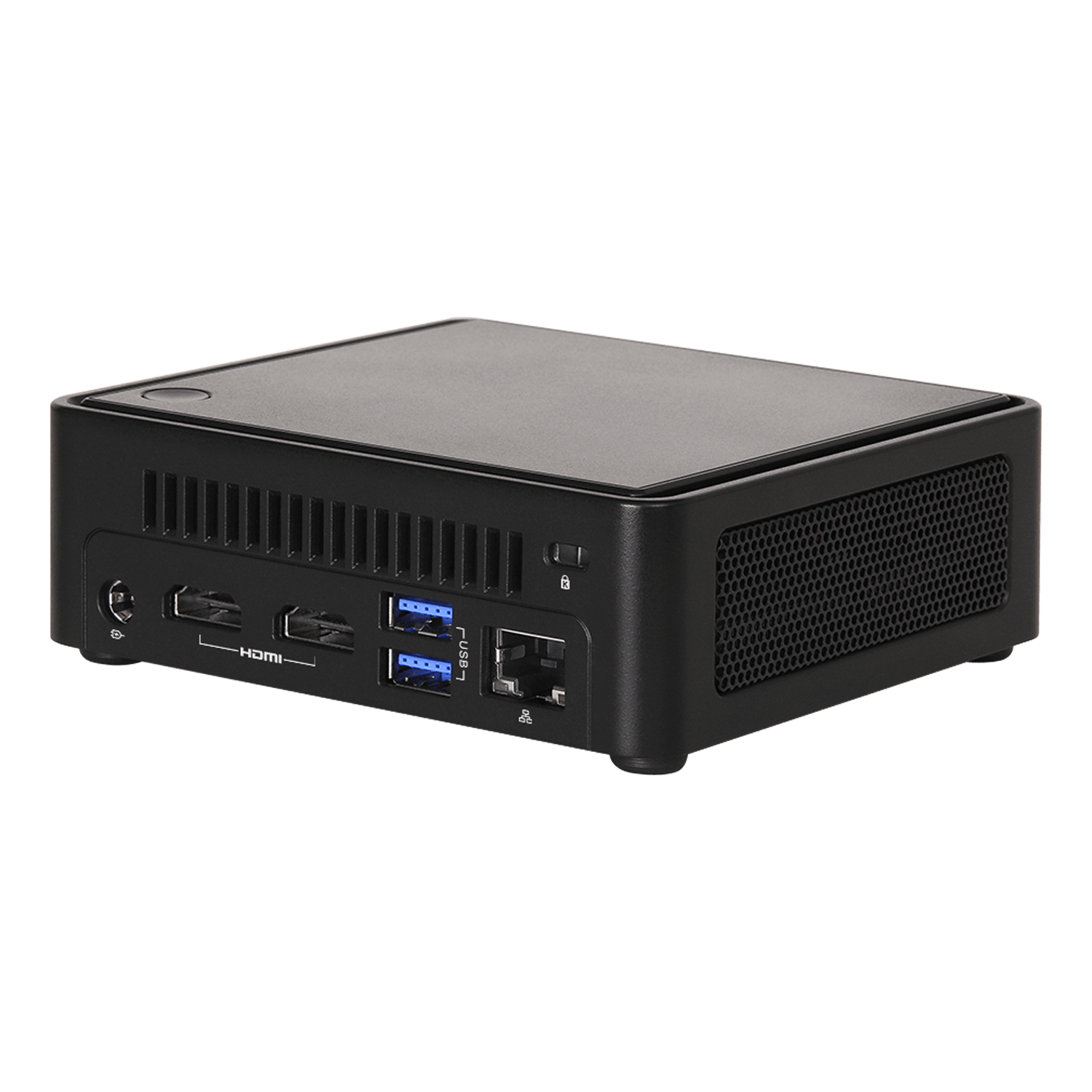

| Rear I/O | |
| HDMI | 2 x HDMI 2.1 TMDS |
| Ethernet | 1 x 2.5 Gigabit LAN |
| USB | 2 x USB 3.2 Gen2 (Type-A) |
| DC Jack | 1 |
| Storage | |
| M.2 | 1 x M.2 (KEY M, 2280) with PCIe Gen4x4 for SSD 1 x M.2 (KEY M, 2242) with PCIe Gen4x1 for SSD |
| RAID | Intel® VMD RAID 0/1 **supported by identical interface (PCIe) PCIe interface: 2*M.2 Key M |
| Watchdog Timer | |
| Output | From Super I/O to drag RESETCON# |
| Interval | 256 Segments, 0, 1, 2, ...255sec |
| Power Requirements | |
| Input PWR | 12V~24V DC-In Jack |
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
| Environment | |
| Operating Temp | 0ºC ~ 40ºC |
| Storage Temp | -40° C – 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
| Mechanical | |
| Mounting | VESA mount |
| Dimensions (L x W x H) | 117.5 x 110.0 x 38mm (4.63" x 4.33" x 1.50") |
| Weight | Net Weight:1.0Kg |
| Others | |
| OS Support | Windows 10/11 |
| TPM | Intel® PTT |
| Certifications | CE, FCC |
| Packing List | 1 x 19V/120W Power Adapter (Core Ultra 7) 1 x 19V/90W Power Adapter (Core Ultra 5) 1 x VESA mount bracket |
