NV5, Tempered Glass, No PSU, E-ATX, White, Mid Tower Case

  • SKU: 17198168
  • Manufacturer: PHANTEKS
  • MPN: PH-NV523TG_DMW01
Starting At
NV5, Tempered Glass, No PSU, E-ATX, White, Mid Tower Case

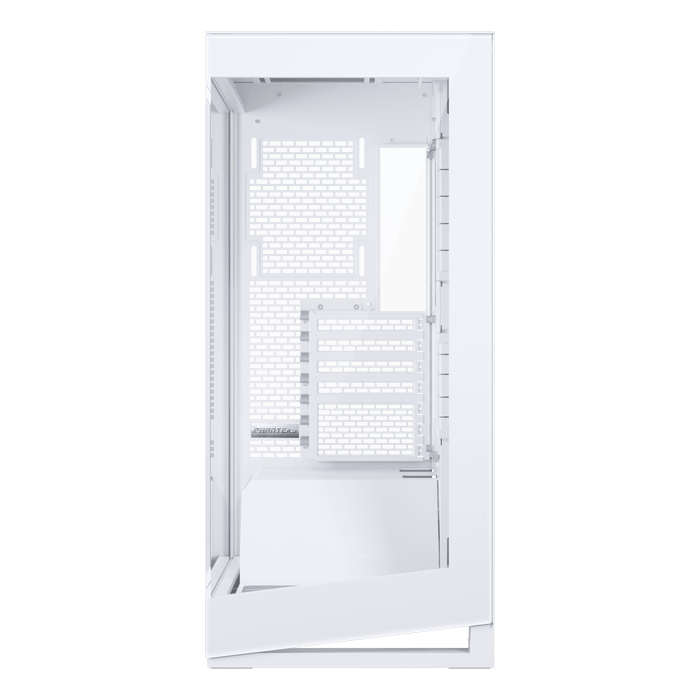

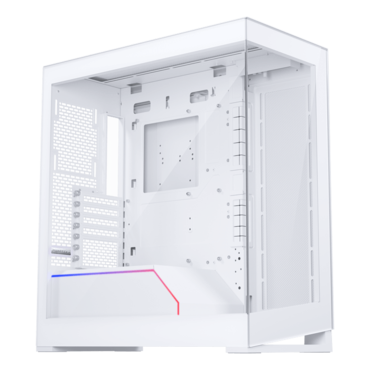

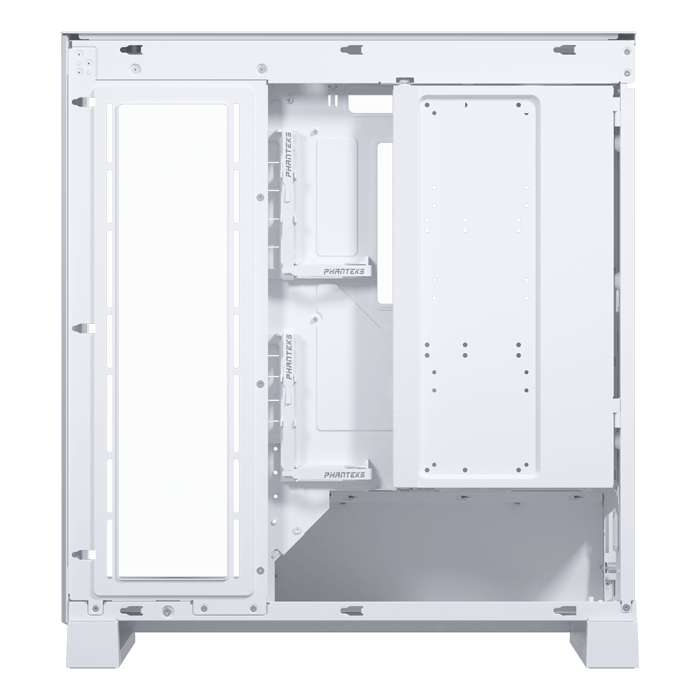

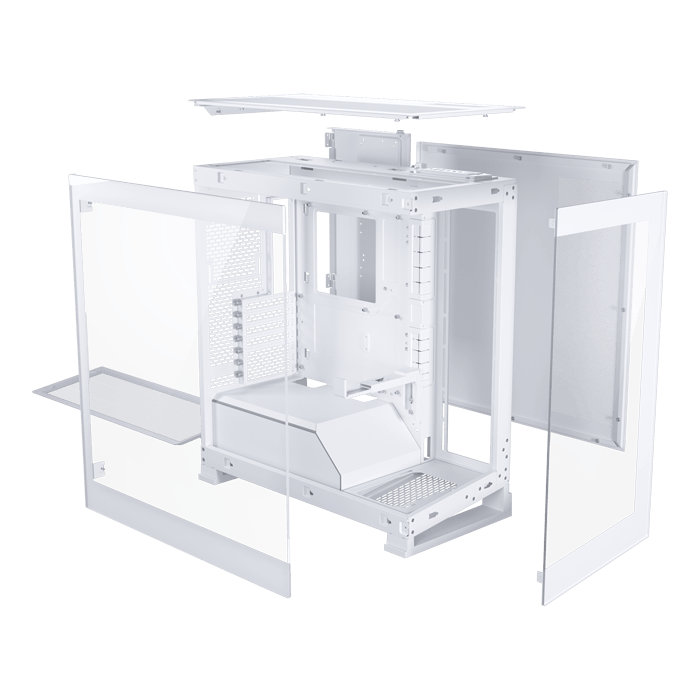

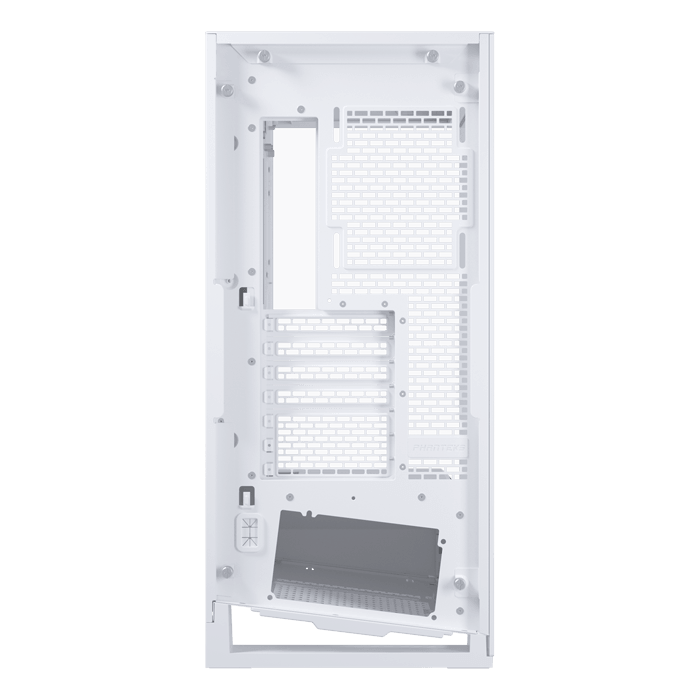

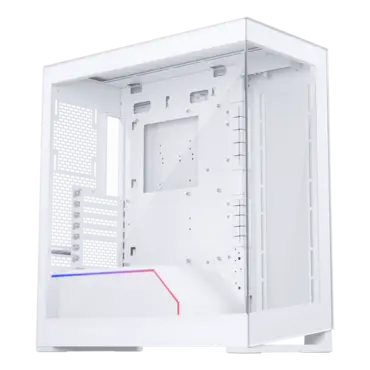

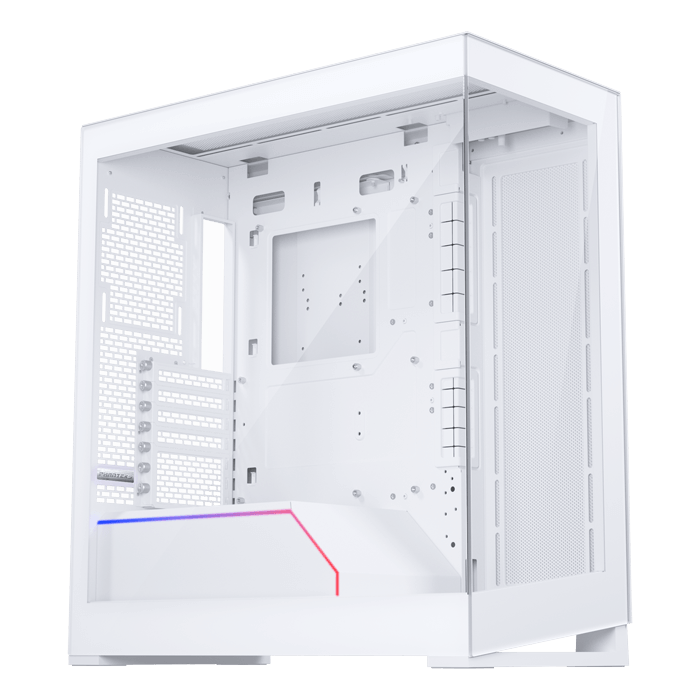

Meet the NV5 mid-tower chassis, featuring a stunning near-seamless glass view and support for 8 x 120 mm fans and dedicated space for a 360 radiator in the top and side for optimal cooling. With a dedicated bottom fan for enhanced GPU cooling and spacious interior to accommodate modern GPUs and cables, the NV5 is designed to excel.

CASE SPECIFICATIONS Dimensions: 239 x 477 x 528 mm / 9.4 x 18.8 x 20.8 in (WxDxH)
Form Factor:  Mid Tower
Materials:  Steel Chassis, Tempered Glass
Motherboard support: ATX, micro-ATX, mini-ITX, E-ATX (up to 280mmwithout GPU Support Bracket)
Front I/O: 2x USB 3.0, USB-C Gen2, Microphone/Headphone Combo, Power Button, D-RGB Mode, D-RGB Color
Connectors: Power Switch, Reset Switch, D-RGB Expansion, D-RGB Motherboard, HD-audio, USB 3.0, 2x SATA Power, USB 3.2 GEN 2 Type-E
Window:  Yes, Front and Side Tempered Glass
Expansion & Drive Bays Expansion Slots:  7
Vertical GPU Support:  Yes, with optional bracket PH-VGPUKT4.0_03
Internal 3.5":  3
Internal 2.5":  4
D-RGB Controller Output:  7A Max
Cooling   120mm fan   140mm fan
Side  3x
Top   3x  -
Rear   1x  -
Bottom  1x -
Liquid Cooling   120mm radiator   140mm radiator
Side  Up to 360
Top  Up to 360
Rear  Up to 120  -
Bottom  - -
Clearance Graphics Card Length:  440mm
CPU Cooler Height:  170mm
PSU Length:  230mm
Side 360 Radiator: 130x420x62mm
Top 360 Radiator:  134x430x62mm
Rear 240 Radiator:  132x170mm
