Architecture | NVIDIA Ampere Architecture |
Process Size | 8nm |
Transistors | 28.3 Billion |
Die Size | 628.4 mm2 |
CUDA Cores | 10240 |
Tensor Cores | 320 |
RT Cores | 80 |
Single Precision Performance | 34.1 TFLOPS |
RT Core Performance | 66.6 TFLOPS |
Tensor Performance | 272.8 TFLOPS |
GPU Memory | 24 GB GDDR6 with ECC |
Memory Interface | 384-bit |
Memory Bandwidth | 768 GB/sec |

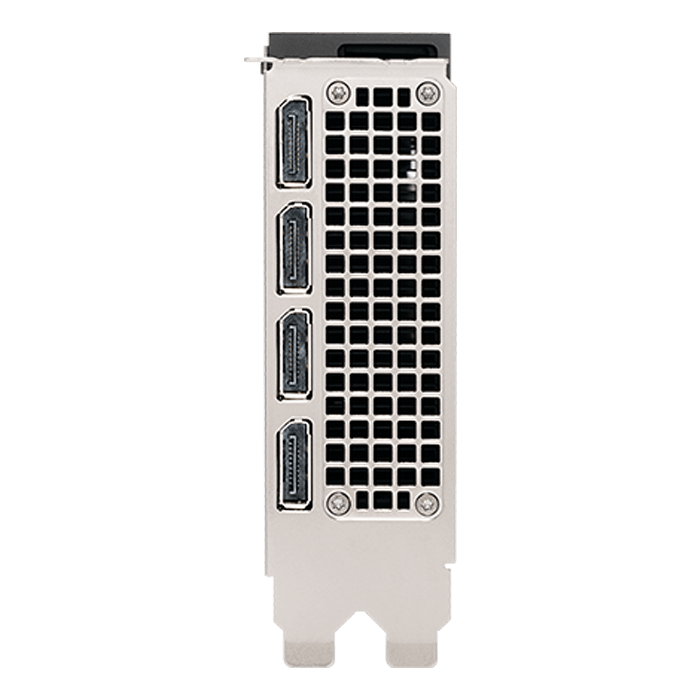

Display Connectors | 4x DisplayPort 1.4a |
NVENC | NVDEC | 1x | 2x (+ AV1 decode) |
System Interface | PCI Express 4.0 x16 |
Form Factor | 4.4” H x 10.5” L Dual Slot |
Thermal Solution | Active Fansink |
Maximum Power Consumption |
230 W NVIDIA Quadro and RTX Power Guidelines |
Power Connector | 1x 8-pin PCIe |
Max Digital Resolution |
7680 x 4320 x36 bpp at 60 Hz NVIDIA Quadro and RTX Display Resolution Support |
vGPU Software Support | NVIDIA Virtual PC (vPC), NVIDIA Virtual Applications (vApps), and NVIDIA RTX Virtual Workstation |
NVIDIA 3D Vision and 3D Vision Pro | Support via 3-pin mini DIN |
Frame Lock | Compatible with NVIDIA Quadro Sync II |
NVLink | 2-way low profile (2-slot and 3-slot bridges) connects 2x NVIDIA RTX A5500 |
NVLink Interconnect | 112.5 GB/sec bidirectional |
