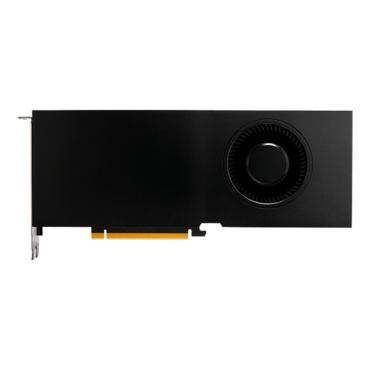

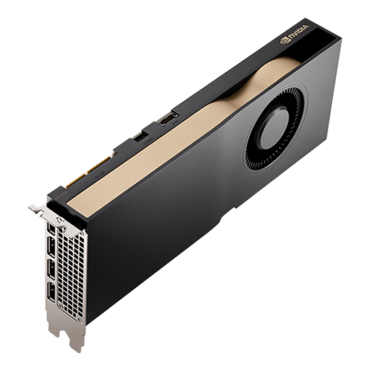

NVIDIA® RTX™ A5500, VCNRTXA5500-PB, 1170 - 1695MHz, 24GB GDDR6 ECC, Graphics Card
- SKU: 14876958
- Manufacturer: PNY
- MPN: VCNRTXA5500-PB
- Availability: CONTACT US
Price
$4,284.57
| Architecture | NVIDIA Ampere Architecture |
| Process Size | 8nm |
| Transistors | 28.3 Billion |
| Die Size | 628.4 mm2 |
| CUDA Cores | 10240 |
| Tensor Cores | 320 |
| RT Cores | 80 |
| Single Precision Performance | 34.1 TFLOPS |
| RT Core Performance | 66.6 TFLOPS |
| Tensor Performance | 272.8 TFLOPS |
| GPU Memory | 24 GB GDDR6 with ECC |
| Memory Interface | 384-bit |
| Memory Bandwidth | 768 GB/sec |
| Display Connectors | 4x DisplayPort 1.4a |
| NVENC | NVDEC | 1x | 2x (+ AV1 decode) |
| System Interface | PCI Express 4.0 x16 |
| Form Factor | 4.4” H x 10.5” L Dual Slot |
| Thermal Solution | Active Fansink |
| Maximum Power Consumption |
230 W NVIDIA Quadro and RTX Power Guidelines |
| Power Connector | 1x 8-pin PCIe |
| Max Digital Resolution |
7680 x 4320 x36 bpp at 60 Hz NVIDIA Quadro and RTX Display Resolution Support |
| vGPU Software Support | NVIDIA Virtual PC (vPC), NVIDIA Virtual Applications (vApps), and NVIDIA RTX Virtual Workstation |
| NVIDIA 3D Vision and 3D Vision Pro | Support via 3-pin mini DIN |
| Frame Lock | Compatible with NVIDIA Quadro Sync II |
| NVLink | 2-way low profile (2-slot and 3-slot bridges) connects 2x NVIDIA RTX A5500 |
| NVLink Interconnect | 112.5 GB/sec bidirectional |
