NZXT H Series H5 (2023) Flow RGB Edition ATX Mid Tower Chassis White Color-CC-H51FW-R1

Quantity:
  • SKU: 16064000
  • Manufacturer: NZXT
  • MPN: CC-H51FW-R1
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$124.17
Quantity:
NZXT H Series H5 (2023) Flow RGB Edition ATX Mid Tower Chassis White Color-CC-H51FW-R1

The H5 Flow RGB features two pre-installed F140 RGB Core fans & two F120Q Quiet Airflow fans so this compact mid-tower stays cooler than cool. With optimized thermal performance and intuitive cable management, the H5 Flow is an ideal chassis for most builds.

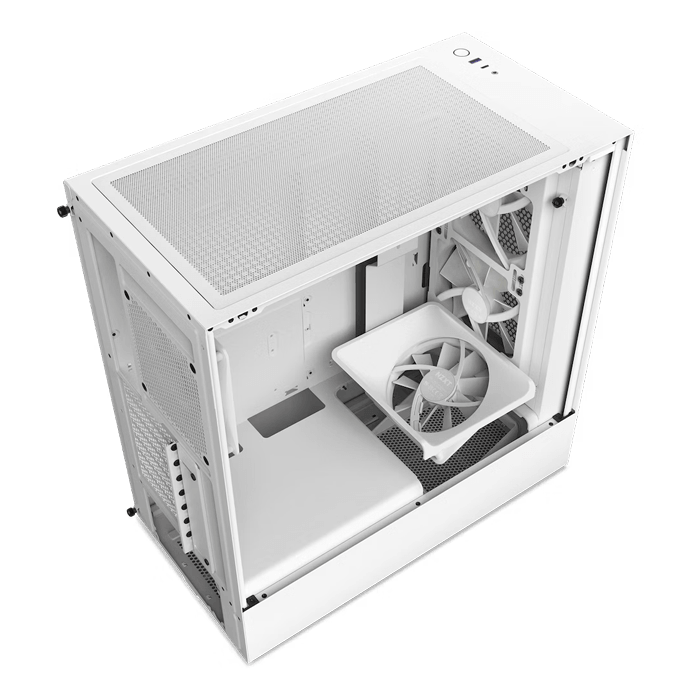

  • Dedicated fan on bottom inside panel is angled to cool GPU
  • Perforated front panel provides optimal ventilation
  • Intuitive cable management system with wide channels, hooks, & straps
  • Tool less access to front and side panels
  • Front panel supports up to 2 x 140mm fans or 280mm radiator
  • Top panel supports up to 2 x 120mm fans or 240mm radiator
  • Includes two pre-installed F140 RGB Core fans & two F120Q Quiet Airflow fans
  • Connects multiple F140 RGB Core fans to 5V ARGB header on the motherboard
  • Two color options (Matte Black, Matte White)
Key Specs
Motherboard Support: Mini-ITX, Micro-ATX, ATX
Enclosure Type: Mid-Tower
Case Material (White): SGCC Steel, Ultra-clear Tempered Glass
Case Material (Black): SGCC Steel, Dark Tinted Tempered Glass
Dimensions
Height (With Feet): 464mm
Height (Without Feet): 448mm
Width: 227mm
Depth: 446mm
Weight: 7.36 kg
Compatibility & Clearance
Max CPU Cooler Clearance: Up to 165mm
Max GPU Clearance: Up to 365mm
Front Radiator Clearance: 45mm
Cable Management: Up to 23mm
PSU Clearance: Up to 185mm
Front I/O Ports
USB 3.2 Gen 1 Type-A: 1
USB 3.2 Gen 2 Type-C: 1
Headset Audio Jack: 1
Expansion Slots
Standard: 7
Vertical : 0
Drive Bays
2.5": 1+1
3.5": 1
Fan Support
Front: 2 x 120mm / 2 x 140mm (2 x F Series RGB Core 140mm (Case Version) included)
Top: 2 x 120mm
Rear: 1 x F Series Quiet 120mm (Case Version) included
Bottom: 1 x F Series Quiet 120mm (Case Version) included
Filters: All Air Intakes
Radiator Support
Front: Up to 280mm
Top: Up to 240mm
Rear: Up to 120mm
Fan Specs
Model: F140 RGB Core Fan (Case Version)
Speed: 1200 ± 120 RPM
Airflow: 61.74 CFM
Static Pressure: 2.06mm-H2O
Noise: 29.05 dBA
Fan Connector: 3-pin
Fan Specs
Model: F120Q Airflow Fan (Case Version)
Speed: 1200 ± 120 RPM
Airflow: 62.18 CFM
Static Pressure: 1.05 mm-H2O
Noise: 25.1 dBA
Fan Connector: 3-pin
General
Warranty: 2 Years
Model Number: CC-H51FW-R1 (White) / CC-H51FB-R1 (Black)
UPC: 810074843645 (White) / 810074843638 (Black)
EAN: 5056547203560 (White) / 5056547203553 (Black)
