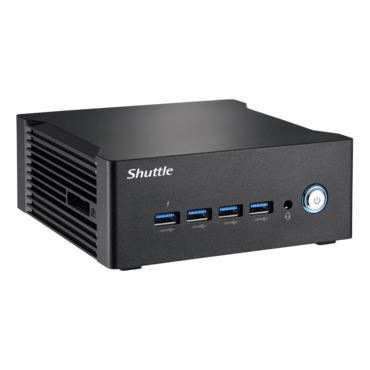

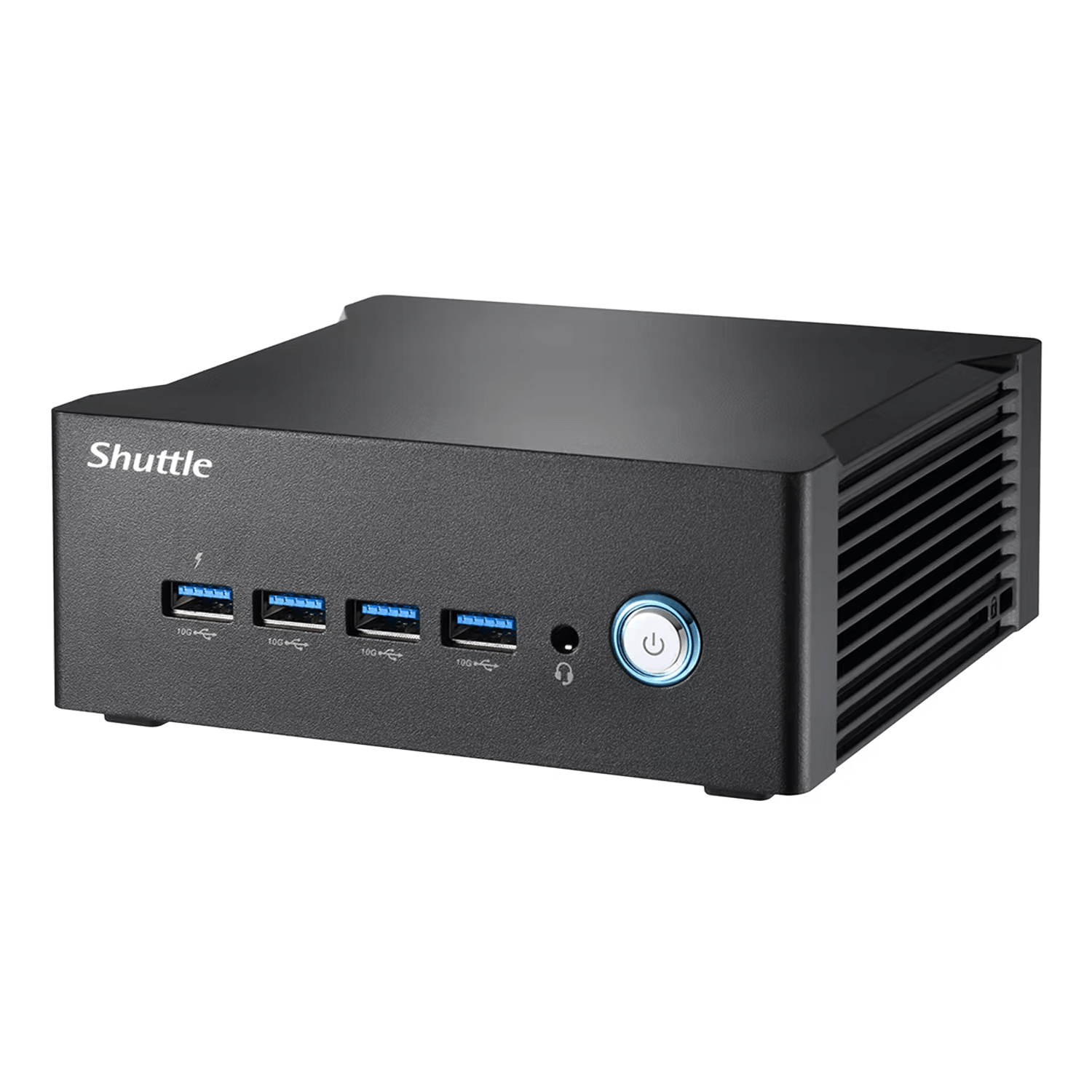

Nano NA10H7, AMD Ryzen™ 7 8845HS, 2x DDR5 SO-DIMM, 1x M.2 NVMe, AMD Radeon™ 780M Graphics, Semi-ruggedized Barebone PC
- SKU: 19814000
- Manufacturer: SHUTTLE
- MPN: NA10H7
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Nano NA10H7, AMD Ryzen™ 7 8845HS, 2x DDR5 SO-DIMM, 1x M.2 NVMe, AMD Radeon™ 780M Graphics, Semi-ruggedized Barebone PC
Affordable AI and Multitasking Powered by AMD Ryzen™ 8040 APU
Powered by the AMD Ryzen™ 8040 series APU, the Shuttle NA10H7 is built on a cutting-edge 4nm process with up to 8 cores, 16 threads, and AMD Radeon™ 780M graphics, delivering advanced performance and AI-readiness capabilities. It also features AMD Ryzen™ AI with 16 NPU TOPS and 39 system TOPS (NPU+CPU+GPU), supports up to 96GB of memory, and offers extensive I/O options. Designed for multitasking, the NA10H provides high-performance, cost-effective solutions for generative AI workloads, making it ideal for content creation, gaming, entertainment, office tasks, commerce, and AIoT applications.
Affordable AI and Multitasking Powered by AMD Ryzen™ 8040 APU
Powered by the AMD Ryzen™ 8040 series APU, the Shuttle NA10H7 is built on a cutting-edge 4nm process with up to 8 cores, 16 threads, and AMD Radeon™ 780M graphics, delivering advanced performance and AI-readiness capabilities. It also features AMD Ryzen™ AI with 16 NPU TOPS and 39 system TOPS (NPU+CPU+GPU), supports up to 96GB of memory, and offers extensive I/O options. Designed for multitasking, the NA10H provides high-performance, cost-effective solutions for generative AI workloads, making it ideal for content creation, gaming, entertainment, office tasks, commerce, and AIoT applications.
- Processor: AMD Ryzen™ R7-8845HS (TDP 45W)

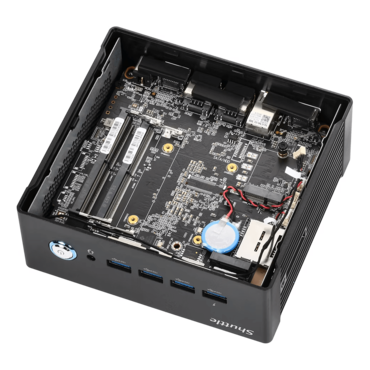

- Memory: 2 x 262-pin DDR5 SODIMM slots, 32GB per DIMM (Max 64GB), Dual Channel DDR5, up to 5600MHz
- Storage: 1x M.2 2230 E key, 1x M.2 2280 M key (w/ PCIe Gen4)
- Chassis: Compact format, 5.2" (W) × 5.6" (D) × 2.2" (H) (2.3" with rubber feet)
| FORM FACTOR | Shuttle 1.0L Form Factor |
|---|---|
| PROCESSOR | AMD Ryzen™ 7-8845HS(TDP 45W) |
| MEMORY | 2 x 262 pin DDR5 SODIMM slots, 48GB per DIMM (Max 96GB) Dual Channel DDR5 ,up to 5600MT/s |
| VIDEO OUTPUT |
AMD Radeon™ 780M (features depend on processor) 2x HDMI Port + 2x TYPE-C DisplayPort quadruple video outputs |
| AUDIO | RealTek ALC269-VC3 |
| ETHERNET | Built in dual RealTek RTL8125B support 10/100/1000/2500Mbps |

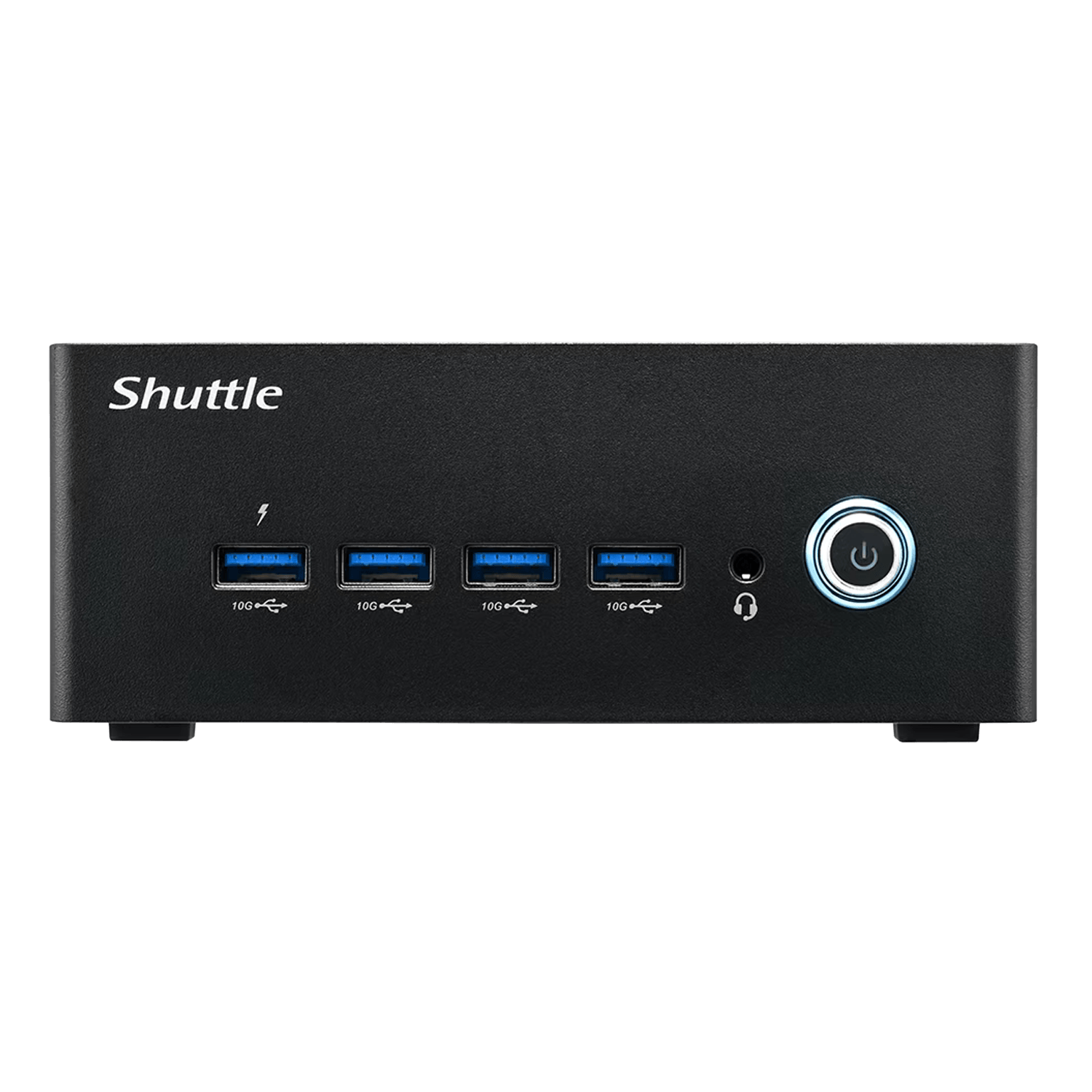

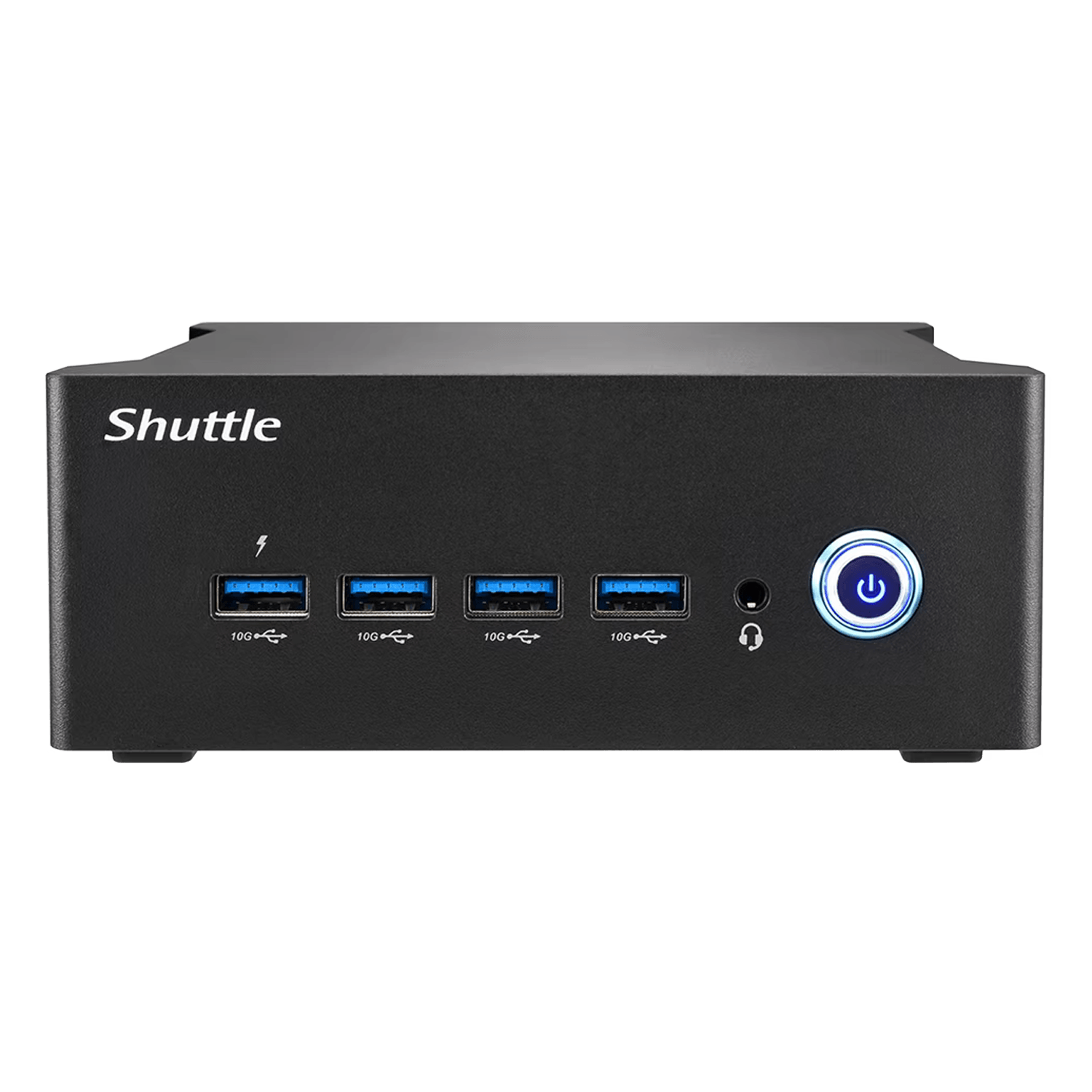

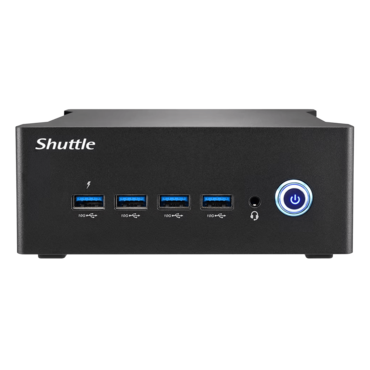

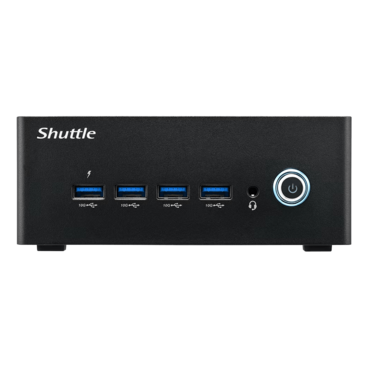

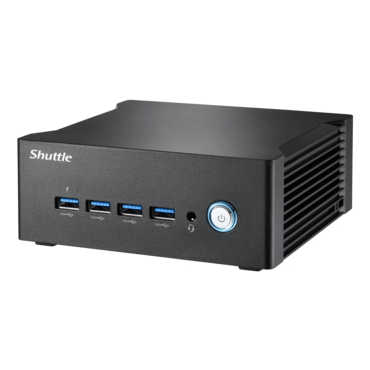

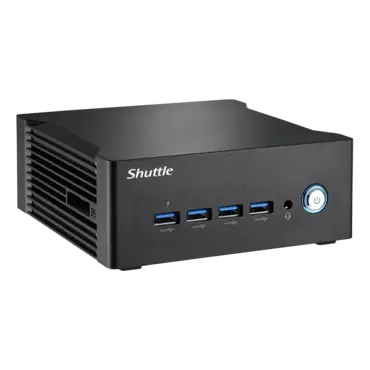

| FRONT PANEL | (1)Power button (1)Power LED (4)USB 3.2 Gen 2 (1)3.5mm Headphone+Mic in combo jack |

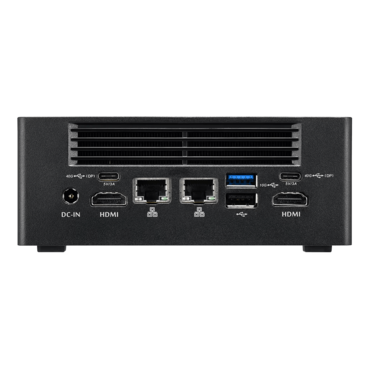

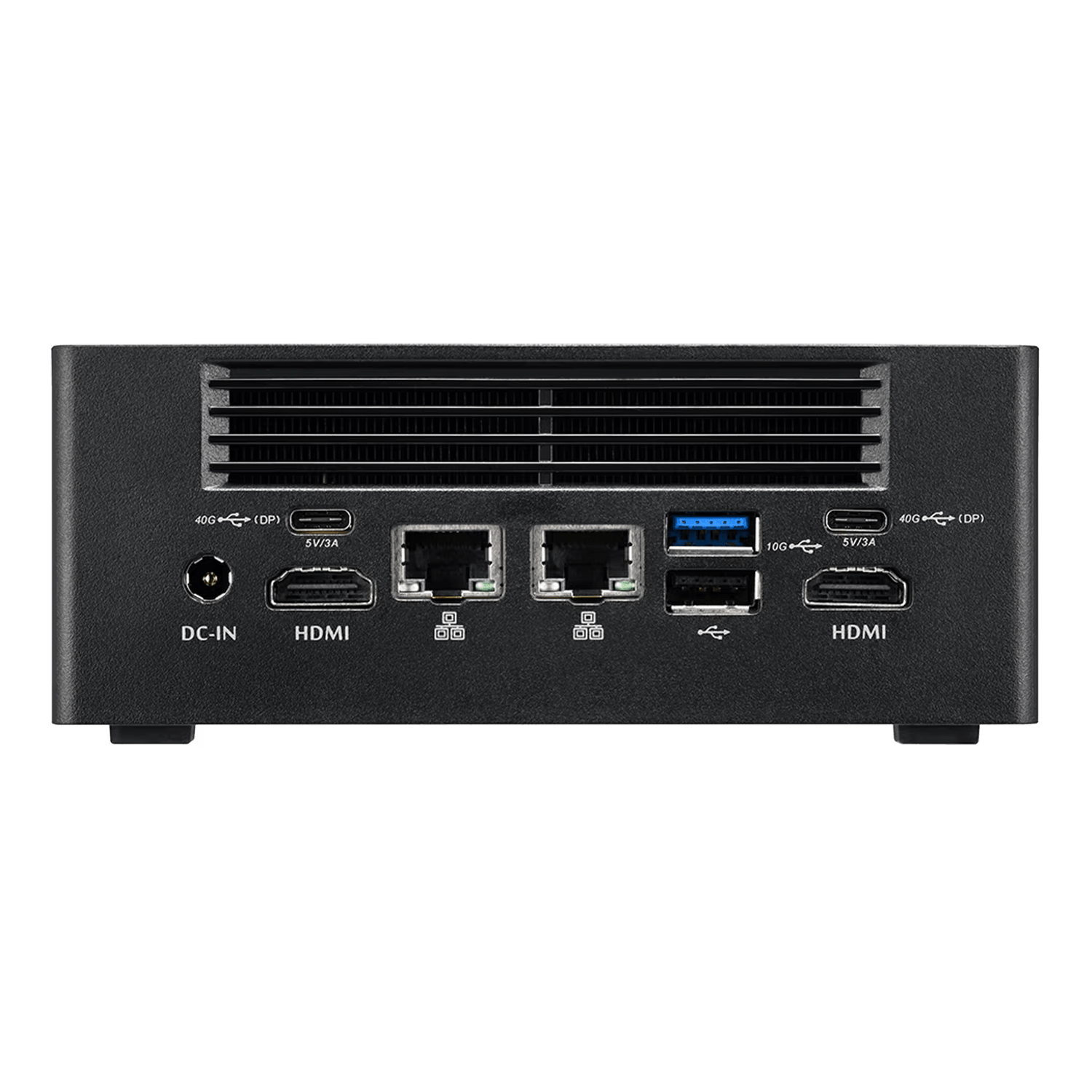

| BACK PANEL |
(2)HDMI (1)USB 2.0 (1)USB 3.2 gen2 (2)USB 4.0 TYPE-C(with DisplayPort / power delivery) (2)RJ45 (1)DC-in Jack (1)Card Reader (1)Kensington Lock |
| DIMENSIONS | 132(W) x 143(D) x 55(H) mm (57.8mm include rubber) |
| POWER | 120W Power Adapter Input:100- 240V AC 19V 6.32A |
| ACCESSORIES |
Quickguide VESA mount VESA screw pack Adapter and power cord M.2 SSD thermal KIT pack |
| EXPANSION SLOT | (1)M.2 2230 E key (1)M.2 2280 M key(w/PCIe Gen4) |
| OS SUPPORT | Windows 11, Linux |
| CERTIFICATION | Safety: CB, UL, BSMI, CEC EMC: FCC, CE, BSMI, RCM, VCCI RoHS Compliance |
| OPERATING TEMPERATURE | 0°C~40°C |
