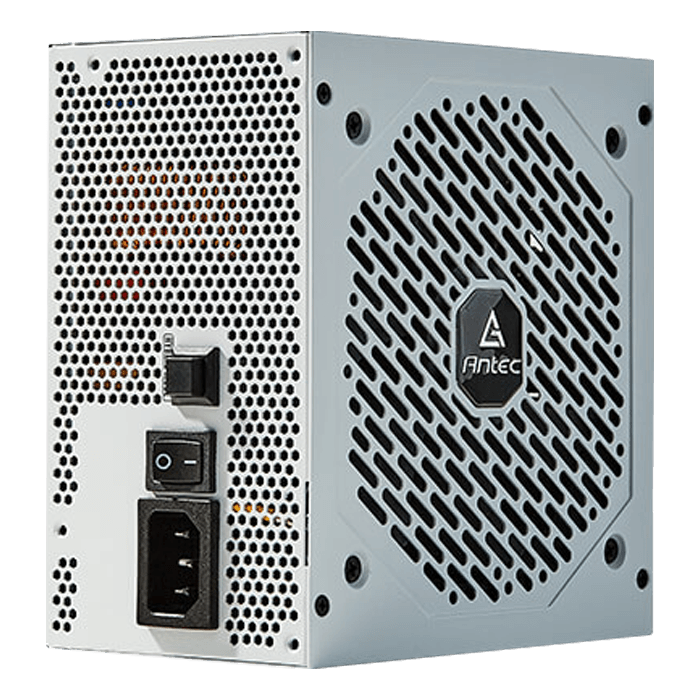

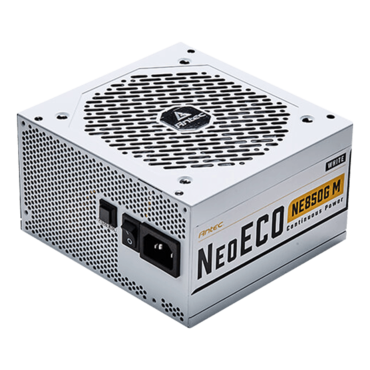

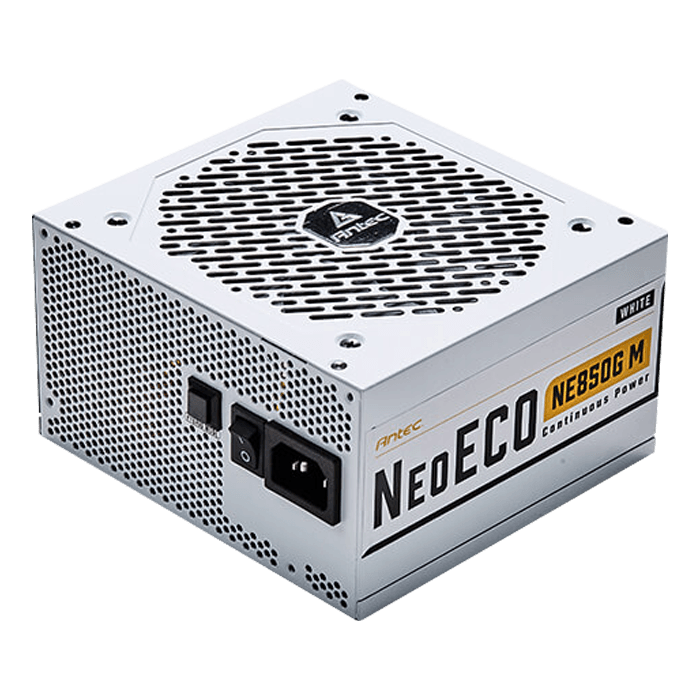

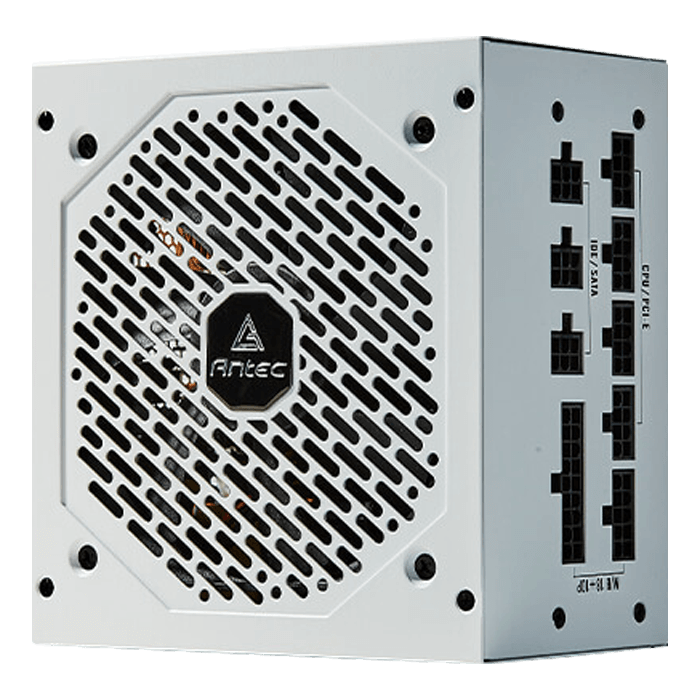

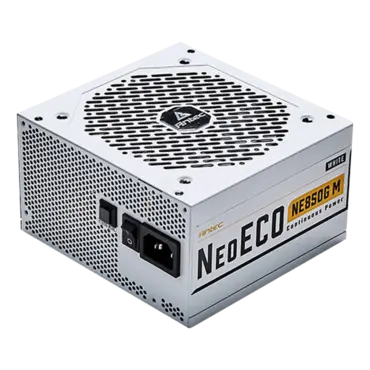

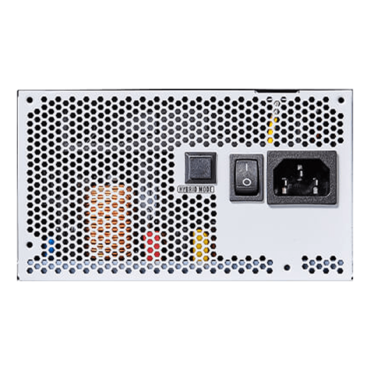

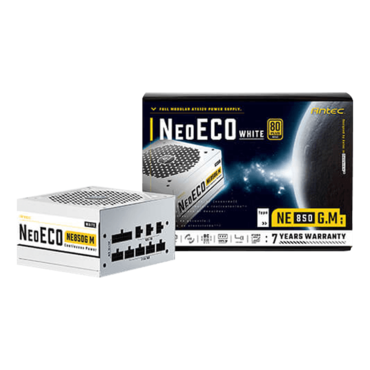

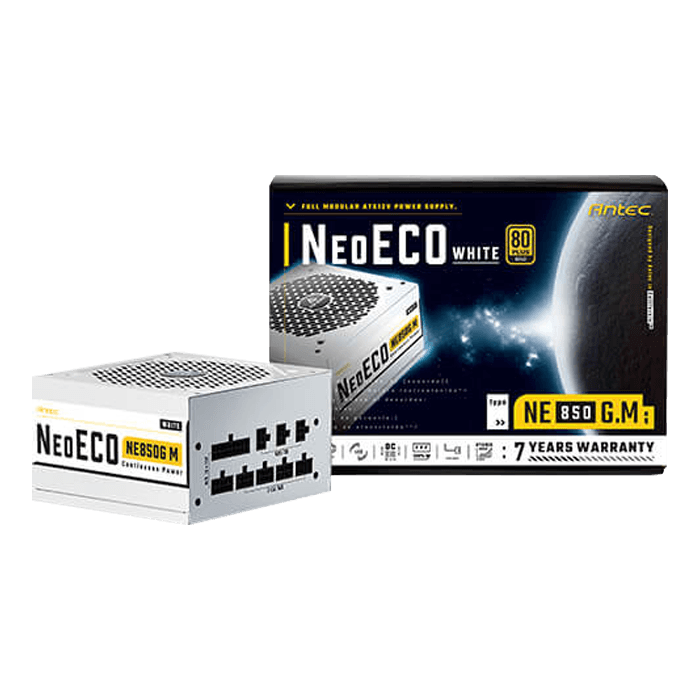

NeoECO NE850G M White, 80 PLUS Gold 850W, Fully Modular, ATX Power Supply
- SKU: 15123682
- Manufacturer: ANTEC
- MPN: NE850GM WHITE
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
The brand-new NeoECO Gold Modular series was born ready for the best DIY-PC experience seekers, and it also serves exceptional performance and outstanding stability. Featured 100% full modular design and 80 PLUS Gold certification, the NeoECO Gold Modular series keeps your PC hardware installation convenient and clean. It still provides highly efficient power to your system and reduces your electricity bills. The advanced thermal control with the Zero RPM mode enables to turn the fan off at low loads to provide absolute silence. With the 120mm silent fan, the NeoECO Gold Modular can optimize the balance between cooling and noise. High-quality Japanese heavy-duty caps allow your system has more stable performance. The CircuitShield™ design serves your industry-grade protection to make your system safe in any environment. With the 7-year warranty, the NeoECO Gold Modular series will be the ideal choice for professional modders and PC gamers.
- 850W Continuous Power™ - Guaranteed 850W of Continuous Power from Antec

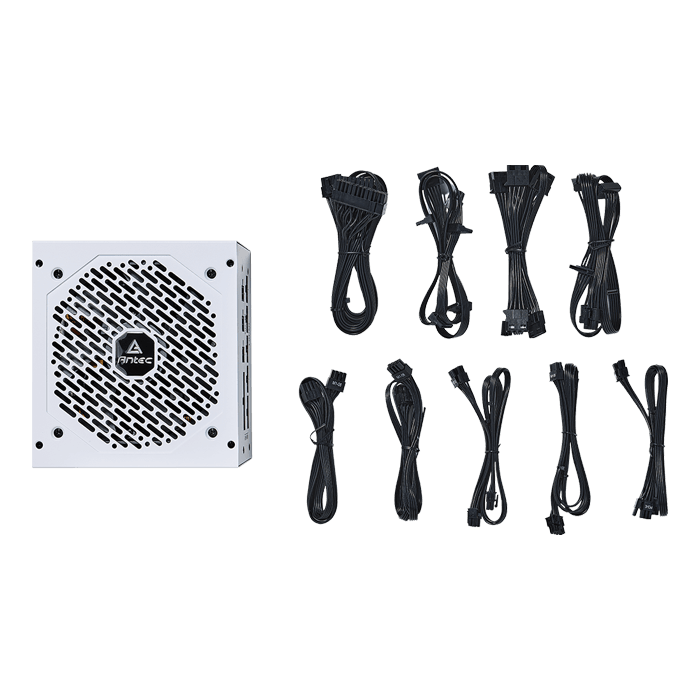

- 100% Modular - Improves airflow and reduces clutter
- 80 PLUS® Gold certified -Reduce your electricity bill
- PhaseWave™ Design - A server-class LLC design with a synchronous rectification based on a DC-DC topology
- Antec Quality 7-year warranty

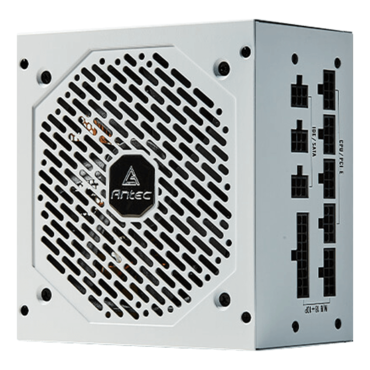

- 120mm Silent Fan-Whisper-quiet high-quality fluid bearing fan with long lifetime

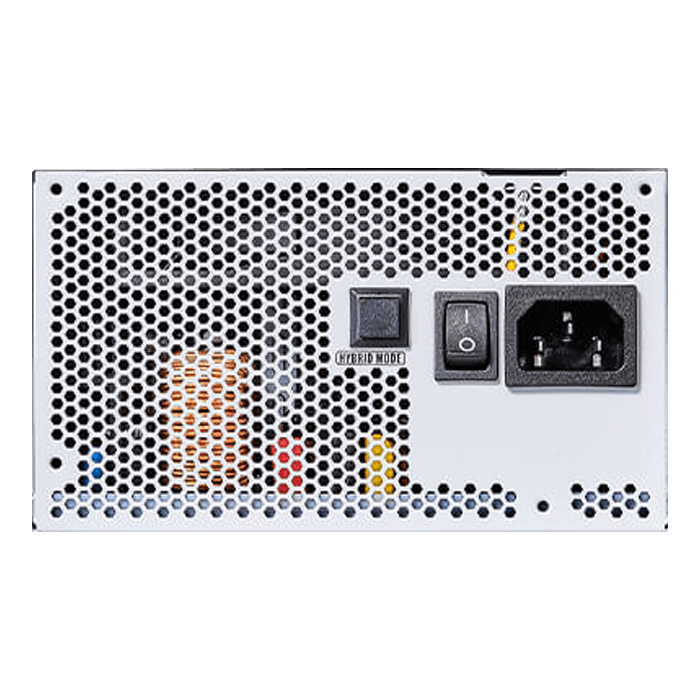

- Zero RPM Manager - An advanced low voltage fan control with fan-off mode at low loads for absolute silence
- 99%+12V - Output for maximum CPU & GPU support
- CircuitShield™-Full suite of industrial grade protections: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
- High-Quality JP capacitors achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system’s performance

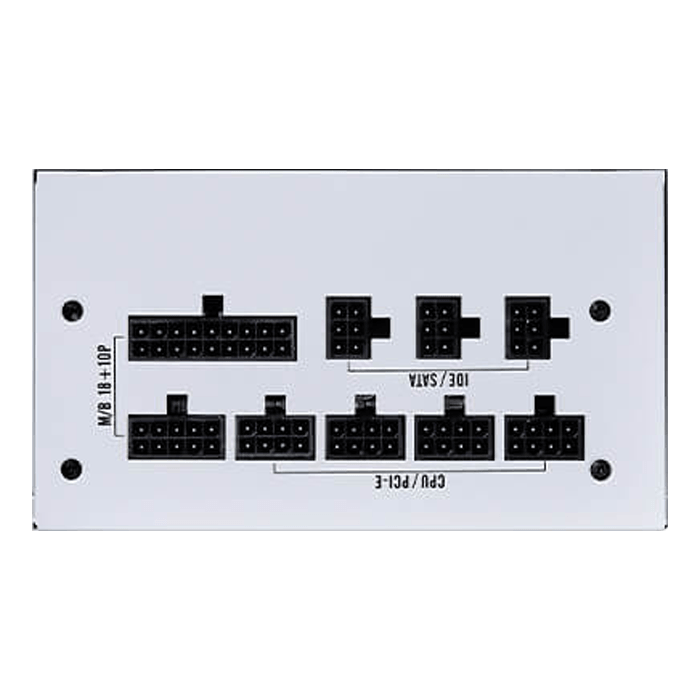

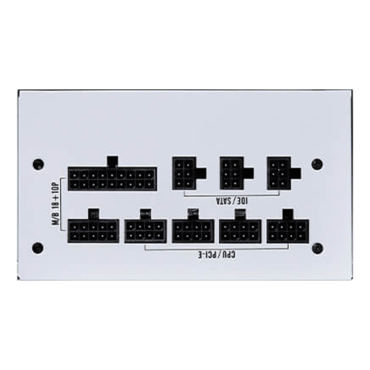

- 28(18+10) pin MBU socket - For possible future MBU connectors
- ATX 12V 2.4-Engineered according to the newest PSU guideline and compatible with the latest CPU generation
| Product Name | NE850G M White |
| Model Name | X7000A083-20 |
| Type | ATX 12V 2.4 |
| Modular | Fully |
| Dimension | 150(L) x 140(W) x 86(H) |
| Warranty | 7 years |
| Input Voltage | 100-240 VAC |
| Input Current | 10A MAX |
| Input Frequency Range | 50Hz-60Hz |
| PFC | Active PFC |
| Power Good Signal | 100-500ms |
| Efficiency | Up To 92% |
| Protection | OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO |
| Output Capacity | 850W |
| Operation Temperature | 0~40°C |
| Regulatory | cTUVus / TUV / CB / RCM / CE / FCC / BIS / BSMI / KC / UKCA / ICES |
| Fan | 120mm Silence Fan |
| Certifications | 80 Plus Gold |
| Connector | 1 x MB 24(20+4) Pin |
| 2 x 8(4+4) Pin EPS 12V | |
| 6 x 8(6+2) Pin PCI-E | |
| 10 x SATA | |
| 5 x Molex | |
| 1 x FDD | |
| Net Weight | 1.38 kgs |
| Gross Weight | 2.55 kgs |
| UPC# | 0-761345-11230-7 NE850G M White |
