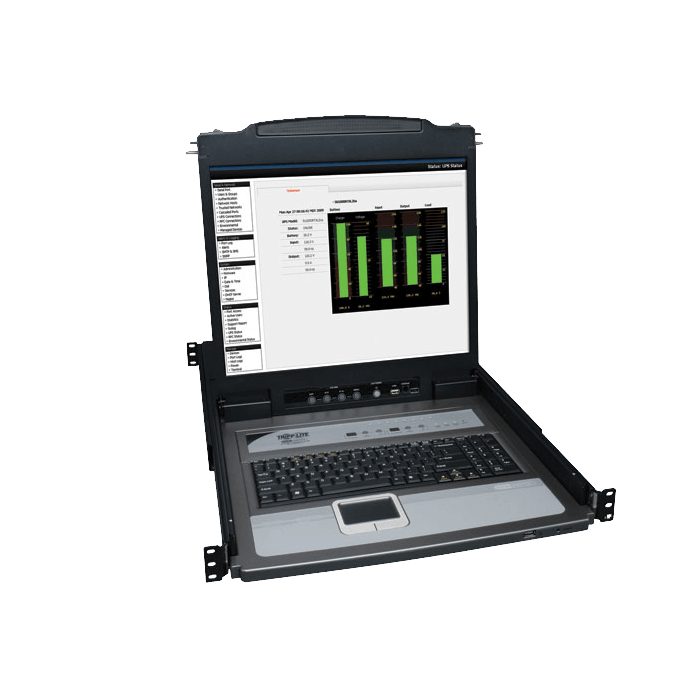

NetDirector B020-U08-19-K 19" TFT LCD Rackmount Keyboard Drawer w / 8-port KVM Switch
Tripp Lite's 8-port Console KVM Switch w/19" LCD is the optimal solution for controlling multiple computers from one keyboard, mouse and monitor. This single unit combines an 8 port KVM switch, keyboard, 19" LCD monitor and touchpad; all in a mere 1U of rack space. Stores neatly in the rack, pulls out when needed. Control up to 504 computers from this single console by daisy-chaining additional B022-U16 16 port KVM switches. Easily switch ports using the On-Console push buttons, On Screen Display (OSD) or keyboard hot key commands. Includes eight, six foot Combo cable kits, which allow connection to either PS/2 or USB only servers...no adapters needed. Also features an extra HD15 and (2) PS/2 ports on the rear of the unit, which allows for
- Occupies just 1U of space in a rack-mountable drawer
- 19” LCD screen supports video resolutions up to 1280 x 1024
- Simplifies IT tasks with easy switching between all 8 ports
- Provides 2-level password security (administrator and user)
- Combo cables (included) connect to PS/2 or USB servers
Users |
1 |
Console |
Yes |
Max CPU |
8 |
Nominal Input Voltage(s) Supported |
100V AC; 110V AC; 115V AC; 120V AC; 127V AC; 140V AC; 200V AC; 208V AC; 220V AC; 230V AC; 240V AC |
Input Frequency |
50/60Hz |
Input Current |
120V (0.8A) / 230V (0.4A) |
Unit Dimensions (hwd / in.) |
1.75 x 17 x 27 |
Unit Weight (lbs.) |
30.6 |
Included Mounting Accessories |
Yes |
Color |
Black |
LCD Monitor (in.) |
19 |
Storage Temperature Range |
-4 Degrees F to 140 degrees F (-20 to +60 C) |
Relative Humidity |
0 to 80% RH, Non-condensing |
Operating Temperature |
32 Degrees F to 120 Degrees F (0 to 50 C) |
Port Control |
Push Buttons, Hotkeys, OSD |
IP Remote Access |
No |
Ports |
8 |
Computer/Server Ports |
(x8) HD18 (Female) |
Firmware Upgrade Port |
RJ45 |
PC/Server Connections |
PS/2 |
Included Cable (Side A) - Connector 1 |
HD18 Male |
Included Cable (Side B) - Connector 2 |
PS/2 male |
Included Cable (Side B) - Connector 3 |
PS/2 Male |
Included Cable (Side B) - Connector 4 |
USB A Male |
Cat5 KVM Switch |
No |
Autoscan (Y,N) |
Y |
Certifications |
UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1 |
Approvals |
UL, cUL, CE, FCC, RoHS |
Product Warranty Period (Worldwide) |
1-year limited warranty |
