Node 304 Black, No PSU, Mini-ITX, Mini Cube Case

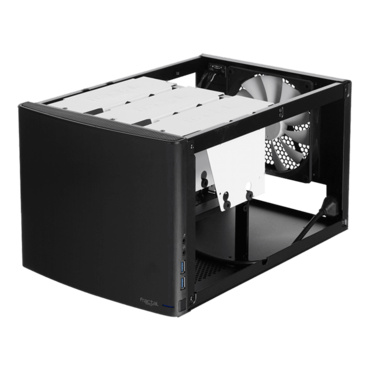

The Node 304 is the latest compact computer chassis from Fractal Design featuring a unique modular interior for outstanding configurability. The Node 304 accommodates up to six hard drives and/or extended length graphics cards. Unique new modular mounting system that accommodates up to 6 hard drives (either 3.5" HDD or 2.5" SSD)
- Compact, modular interior
- Minimalistic design with an elegant aluminum front panel
- Unique new modular mounting system that accommodates up to 6 hard drives
- Accommodates tower CPU coolers and single-fan water cooling systems
- Filtered air intakes ensure a dust-free environment for internal components
- Three Silent Series R2 hydraulic bearing fans included
- Excellent cooling for all components
- Accommodates ATX power supplies
- Fan controller for all fans included
- USB 3.0 for fast file transfers
Specifications |
- Mini ITX, Mini DTX motherboard compatibility
- 2 expansion slots
- 6 – supports either 3.5" or 2.5" HDD / SSD
- ATX PSUs, up to 160mm in length (To fit in combination with a long graphics card, PSUs with modular connectors on the back typically need to be shorter than 160 mm)
- Graphics cards, up to 310mm in length, when 2 HDD slots (1 HDD hanging bracket total) are removed (Graphics cards longer than 170 mm will conflict with PSUs longer than 160mm)
- Tower CPU coolers, up to 165 mm tall
- Case dimensions (W x H x D): 250 x 210 x 374 mm
- Case volume: 19.5 Liters
- Net weight: 4.9 kg
- Colors available: Black
|
Cooling system |
- 2 - Front mounted 92mm Silent Series R2 hydraulic bearing fans, 1300 RPM speed (compatible with 80mm fans) – included
- 1 - Rear mounted 140mm Silent Series R2 hydraulic bearing fan, 1000 RPM speed (compatible with 120mm fans) – included
- Removable air filters for front fans and PSU
- Fan filter for graphics card
- 1 - fan controller for all 3 fans included
|
Front interface |
- 2 - USB 3.0
- 1 - 3.5mm audio in (microphone)
- 1 - 3.5mm audio out (headphone)
- Power button with LED
- HDD LED
|
Package contents |
- Node 304 computer case
- User manual
- Accessory box
|
Additional information |
- EAN/GTIN-13: 7350041081111
- UPC: 817301011112
- Product code: FD-CA-NODE-304-WH
- Available for System Integrators
|
