North XL RC TG Dark, Tempered Glass, No PSU, ATX, Charcoal Black, Full Tower Case
- SKU: 18636812
- Manufacturer: Fractal Design
- MPN: FD-C-NOR1X-05
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$165.00
| Specifications | |
| Dedicated 2.5" drive mounts | 2 |
| Combined 3.5/2.5” drive mounts | 2 included |
| 5.25” drive mounts | 0 |
| Expansion slots | 7 |
| Front interface | 1x USB 3.2 Gen 2x2 Type-C (20 Gbps), 2xUSB 3.0, Audio & Mic |
| Total fan mounts (TG Version) | 7 x 120 mm or 6 x 140 mm |
| Total fan mounts (Mesh Version) | 9 x 120 mm or 8 x 140 mm |
| Total fan mounts (RC Version) | 7 x 120 mm or 5 x 140 mm |
| Front fan | 3 x 120 mm, 3 x 140 mm (3 x Aspect 140mm PWM included) |
| Top fan | 3 x 120 mm, 2 x 140 mm or 2 x 180 mm |
| Rear fan | 1 x 120/140 mm (Mesh & TG Version), 1x 120 mm (RC Version) |
| Dust filters | Front, PSU |
| Fixed cable straps | Yes |
| Cable routing grommets | Yes (Mesh & TG Version), No (RC Version) |
| Captive thumbscrews |
HDD brackets, SSD bracket, Side Panels, Fan Bracket, PSU Bracket |
| Left side panel (Mesh Version) | Mesh |

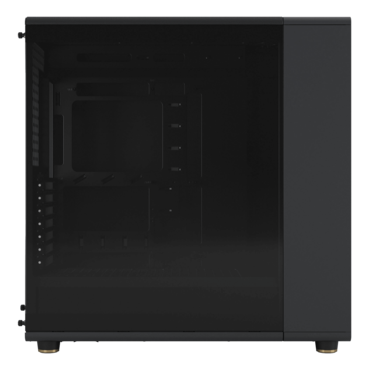

| Left side panel (TG & RC Version) | Tempered Glass |
| Right side panel | Steel |
| Compatibility | |
| Motherboard compatibility |
E-ATX / ATX / mATX / Mini-ITX (Mesh & TG Version), ATX and mATX with rear-facing connectors/ Mini-ITX (RC Version Only) |
| Power supply type | ATX |
| PSU max length | 1 HDD Tray: 290mm max, 2 HDD Trays: 175 mm |
| GPU max length | 413 mm with front fan mounted / 380 mm with a 33 mm-thick 420/360 mm front mounted radiator |
| CPU cooler max height | 155 mm with Fan Bracket (Mesh version) / 185 mm without (TG Version) / 169 mm (RC Version) |
| Front radiator | Up to 420/360 mm |
| Top radiator | Up to 280/360 mm |
| Rear radiator | 120/140 mm (Mesh & TG Version), 120 mm (RC Version) |
| Cable routing space | 29 mm (Mesh & TG Version), 45mm (RC Version) |
| Dimensions | |
| Case dimensions (LxWxH) | 503 x 240 x 509 mm |
| Case dimensions w/o feet/protrusions/screws | 490 x 240 x 490 mm |
| Net weight | 9.7kg (Mesh) / 9.5kg (TG) / 9.7kg (RC) |
| Package dimensions (LxWxH) | 604 x 355 x 608 mm |
| Gross weight | 11.9 kg (Mesh) / 11.7kg (TG) / 11.6 (RC) |
| Other | |
| Package contents (Mesh version) | North XL case, Accessory Box, Fan Bracket Accessory Box, User Manual |
| Package contents (TG version) | North XL case, Accessory Box, User Manual |
| Package contents (RC version) | North XL RC case, Accessory Box, User Manual |
| EAN |
Charcoal Black: 7340172706533, Charcoal Black TGD: 7340172706540, Chalk White: 7340172706557, Chalk White TGC: 7340172706564, RC Charcoal Black TG Dark: 7340172709466, RC Chalk White TG Clear: 7340172709473 |
| UPC |
Charcoal Black: 843276106539, Charcoal Black TGD: 843276106546, Chalk White: 843276106553, Chalk White TGC: 843276106560, RC Charcoal Black TG Dark: 843276109462 , RC Chalk White TG Clear: 843276109479 |
| JAN |
Charcoal Black: 4537694326902, Charcoal Black TGD: 4537694326919, Chalk White: 4537694326926, Chalk White TGC: 4537694326933 RC Charcoal Black TG Dark: N/A, RC Chalk White TG Clear: N/A |
| Product Code |
Charcoal Black: FD-C-NOR1X-01, Charcoal Black TGD: FD-C-NOR1X-02, Chalk White: FD-C-NOR1X-03, Chalk White TGC: FD-C-NOR1X-04, RC Charcoal Black TG Dark: FD-C-NOR1X-05, RC Chalk White TG Clear: FD-C-NOR1X-06 |
| Warranty | 2 Years |
