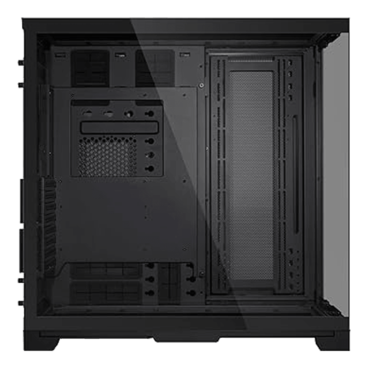

The 011 Dynamic EVO XL can house a wide range of motherboards including ATX, Micro-ATX, Mini-ITX, and E-ATX motherboards under 11" long. Two internal drive trays can house four 2.5 or 3.5" drives while three dedicated 2.5" trays are located behind the motherboard, allowing you to configure your storage drives to your liking. Eight expansion slots are available for utility and graphics cards up to 18.1" long. The adjustable I/O panel can be moved around the bottom of the 011 Dynamic EVO XL, giving you instant access to four USB-A 3.2 Gen 1 and one USB-C 3.2 Gen 1 port, giving you up to 5 Gb/s data transfer speeds as well as a single 3.5mm combo audio jack. The steel and aluminum structure supports a wide range of interior components safely while the 4mm tempered glass panel wraps around the side and the front to give you a clear view of your components, turning your system into the centerpiece of your gaming room.
- Full-tower chassis with two modes: Normal Mode/ Reverse Mode
- Front and side tempered glass panels with a removable pilar for a seamless view of components and RGB lighting
- Supports up to 3x 420mm radiators and a maximum of 11 fans
- Offers mounting space for 7 storage drives
- Dual-chamber layout with cable management compartment and three cable holders
- Features a multi-directional power button and movable IO module
- Optional accessories for vertical GPU or upright GPU mounting
PRODUCT NAME | O11D EVO XL |
CASE TYPE | Tower Chassis |
MODEL | O11DEXL-X |
COLOR | Black |
DIMENSIONS | (D) 522mm x (W) 304mm x (H) 531.9mm |
MATERIAL |
Steel 4.0mm Tempered Glass Aluminum |
MOTHERBOARD SUPPORT | E-ATX (Under 280mm)/ATX/Micro-ATX/Mini-ITX |
EXPANSION SLOT | 8 |
STORAGE |
Behind MB Tray: 3 x 2.5” SSD Hard Drive Cage: 4 x 3.5” HDD / 2.5” SSD |
GPU LENGTH CLEARANCE | 460mm (Max.) |
CPU COOLER HEIGHT CLEARANCE | 167mm (Max.) |
PSU | ATX (Under 220mm) |
FAN SUPPORT |
Top: 3 x 120mm / 3 x 140mm Side: 3 x 120mm / 3 x 140mm Bottom: 3 x 120mm / 3 x 140mm Rear: Up to 2x 120mm |
RADIATOR SUPPORT |
Top: 360 / 420 / 240 / 280mm Side: 360 / 420 / 240 / 280mm Bottom: 360 / 420 / 240 / 280mm |
I/O PORTS |
1 x Power Button 1 x Reset Button 4 x USB 3.0 1 x USB Type C 1 x Audio 1 x LED Color Button 1 x LED Mode Button |
DUST FILTERS |
1 x Bottom 1 x Top 2 x Side |
