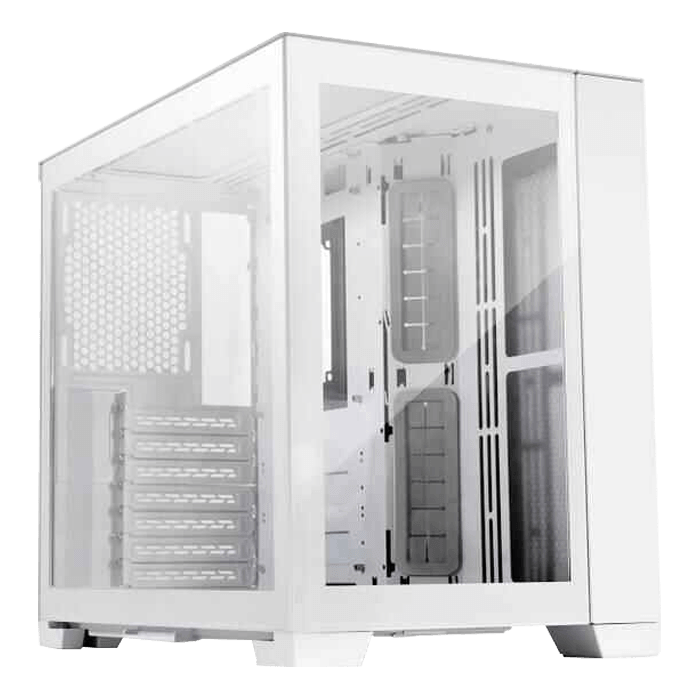

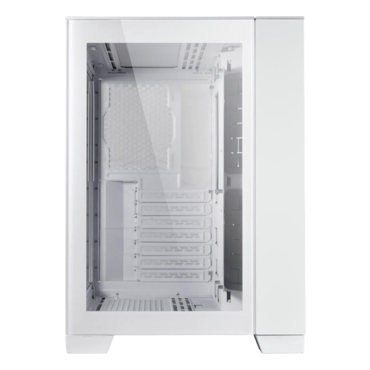

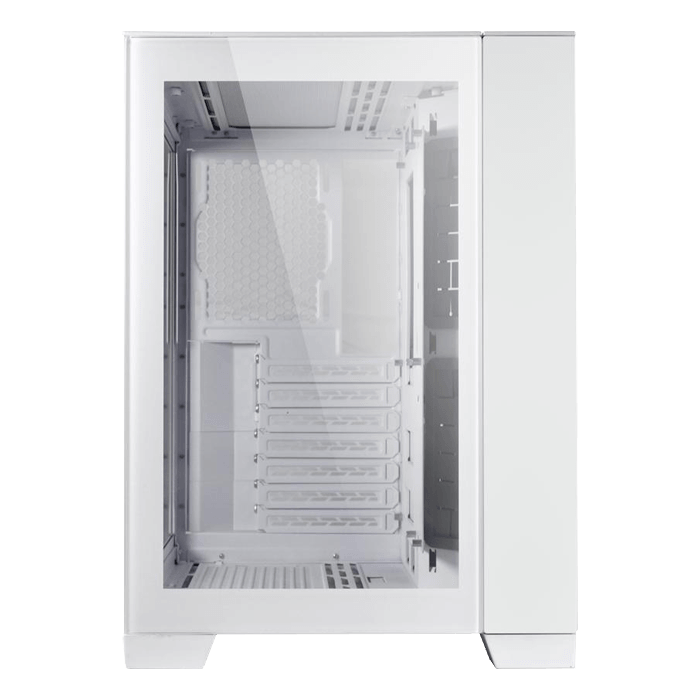

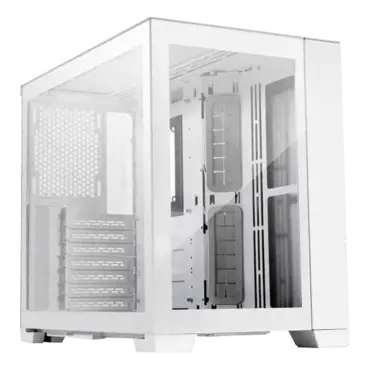

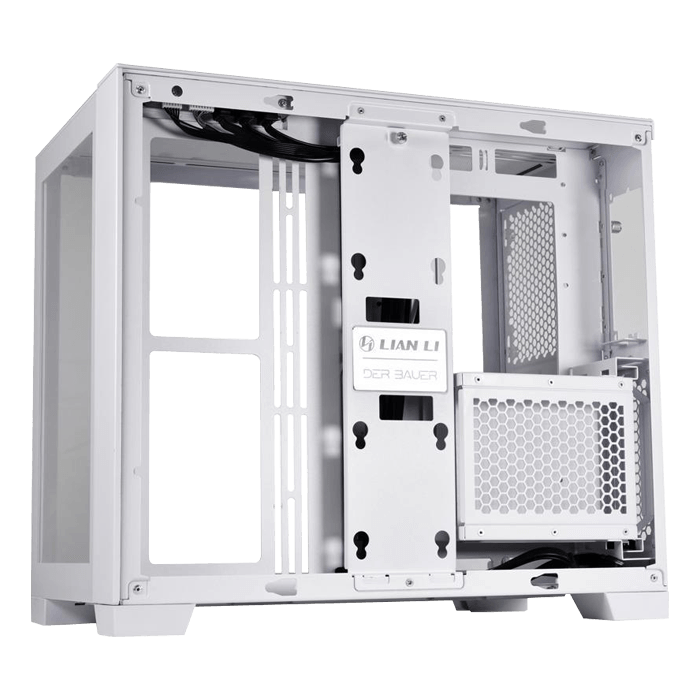

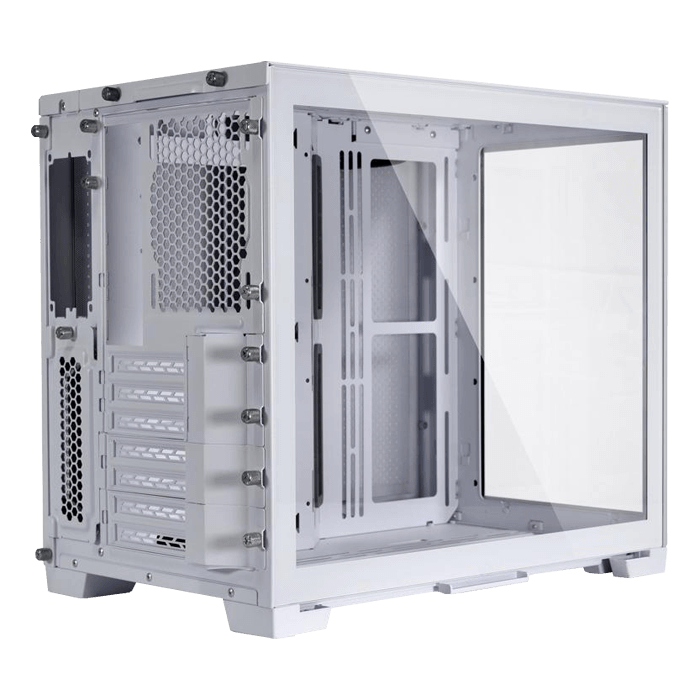

Product Name | O11 Dynamic MINI |
---|---|
MODEL | O11D Mini-S |
COLOR | Snow white |
DIMENSIONS | (D)420mm X (W)269.5mm X (H)380mm |
MOTHERBOARD | ATX/ Micro-ATX/ Mini-ITX |
PSU | SFX/ SFX-L |
MATERIAL |
0.8mm SPCC (body) 1mm SPCC (interior, back panel) 4 mm Tempered Glass 2mm Aluminum (top and left panel) |
FAN SUPPORT |
Top: 3x 120mm or 2x 140mm Side: 2x 120mm or 2x 140mm Bottom: 3x 120mm or 2x 140mm Rear: 1x 120mm |
RADIATOR SUPPORT |
Top: 360mm or 280mm or 240mm radiator Side: 240mm or 280mm radiator Bottom: 360 or 280mm or 240mm radiator |
GPU LENGTH CLEARANCE | 395mm |
CPU COOLER HEIGHT CLEARANCE | 170mm |
VGA Length | 370mm |
DRIVES | Right side 2 x 2.5″ SSD + back plate 2 x 3.5″ HDD (or SSD) |
EXPANSION SLOTS | 3 or 5 or 7 slots (depends on back panel) |
IO PORTS | 2 x USB 3.0, 1 x USB 3.1 TYPE-C, 1 x HD Audio, Power Button |
DUST FILTERS | 1 x Top, 1 x Bottom, 2 x Side |
