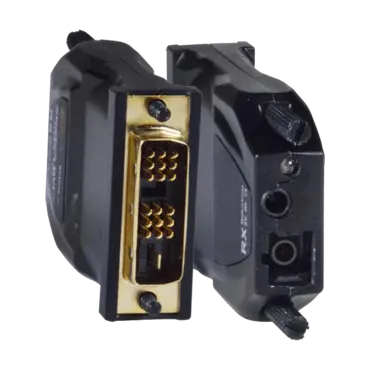

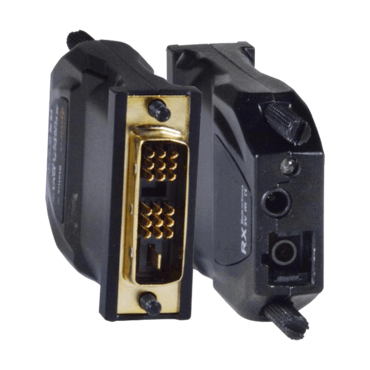

Optical DVI Receiver via Fiber Cable

  • SKU: 12659288
  • Manufacturer: NTI
  • MPN: st-1fodvi-r-sc500m
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
Optical DVI Receiver via Fiber Cable
DVI Extender Receiver 1 Fiber Optic Multimode SC Cables display 3280 feet
Optical DVI Receiver via Fiber Cable
  • Supports resolutions to 1280x1024
  • Video Input
    • One female SC fiber connector for optical DVI input.
    Video Output
    • One male DVI-D single link connector for DVI output.
    • Supports resolutions to 1280x1024.
    • 100 to 240 VAC at 50 or 60 Hz via AC adapter.
    • Operating temperature: 32 to 122°F (0 to 50°C)
    • Storage temperature: -22 to 158°F (-30 to 70°C)
    • Relative humidity: 0 to 85% non-condensing RH
    • WxDxH in: 1.54x2.20x0.59 (39x56x15 mm)
    Regulatory Approvals
    • CE, FCC, RoHS
    • Two years.
    Max Distance
    • 1,640 feet (500 meters) over 50µm multimode SC fiber optic cable.
    • Use a FIBER-S-SCSC-50-xM (simplex multimode SC 50-micron) fiber optic cable to extend the remote unit up to 1,640 ft (not included).
      • Simplex multimode SC 62.5-micron fiber optic cables are also compatible.
