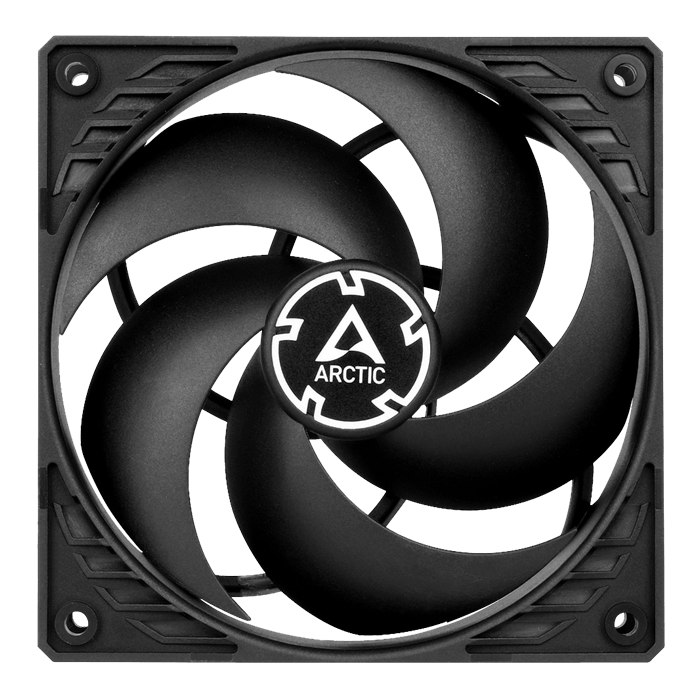

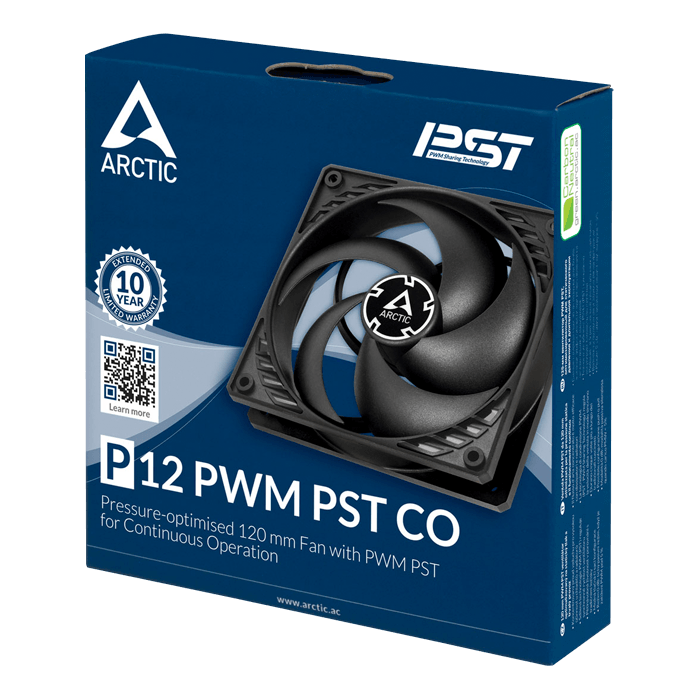

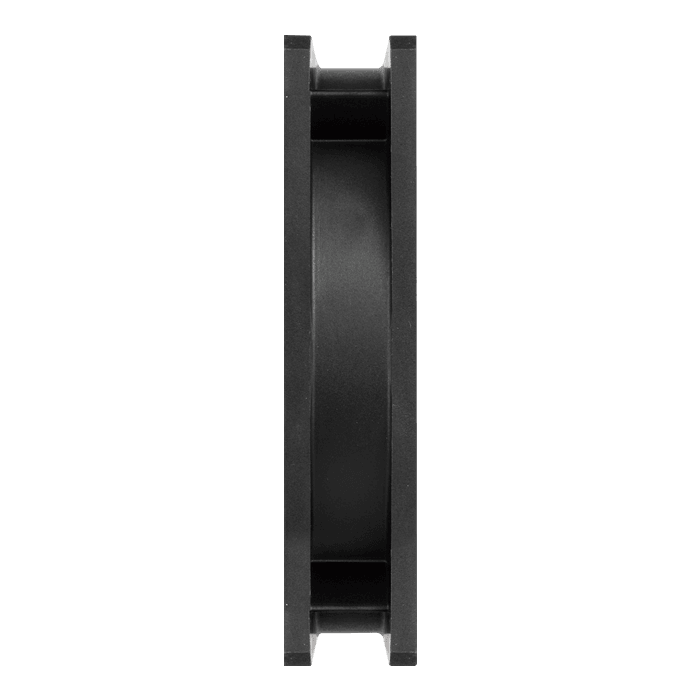

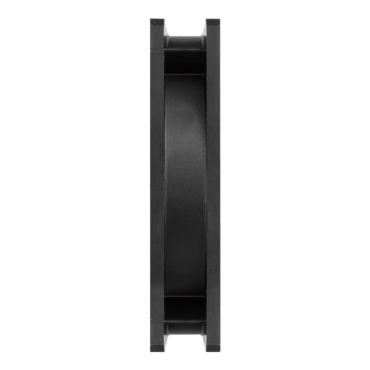

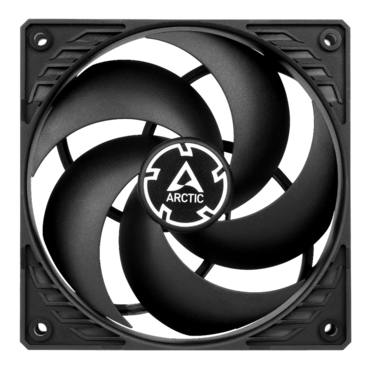

P12 PWM PST CO, 120mm, 1800RPM, 56.3 CFM, 22.5 dBA, Cooling Fan

Quantity:
  • SKU: 13802329
  • Manufacturer: ARCTIC
  • MPN: ACFAN00121A
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$8.02
Quantity:
  • OPTIMISED FOR STATIC PRESSURE: During the development of the new P12 PWM PST CO, special emphasis was placed on a focused airstream and thus a high static pressure
  • STRONG COOLING PERFORMANCE: Numerous improvements, such as an updated engine technology and a newly developed fan design, have noticeably increased the performance of P-fans. In internal performance tests leveled to 28 dB (A), the new P-fans left many competitors behind
  • MORE EFFICIENT TECHNOLOGY: The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P12 PWM PST CO to run much more efficiently than its predecessors
  • EXTENDED LIFE SPAN: A 10 °C lower motor temperature roughly doubles the life span of a fan, the new ARCTIC motor has a four times longer service life through its low coil temperature
Performance
Fan Speed: 200 - 1800 rpm
Airflow: 56.3 CFM/ 95.7 m³/h
Static Pressure: 2,10 (mm/H2O)
Noise Level: 0.3 Sone
Fan
Fan Frame: Standard
Controll Typ: PST
Connector: 4-Pin Connector + 4 Pin Socket
Fan Bearing: Dual Ball Bearing
Electric Characteristics:
Typical Voltage: 12 V DC
Starting Voltage: 3.9 V
Current: 0.08 A
Cable Lenght: 400 mm
Size & Weight
Lenght: 120 mm
Width: 120 mm
Height: 25 mm
Weight: 145 g
