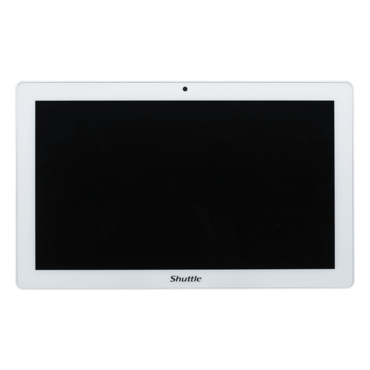

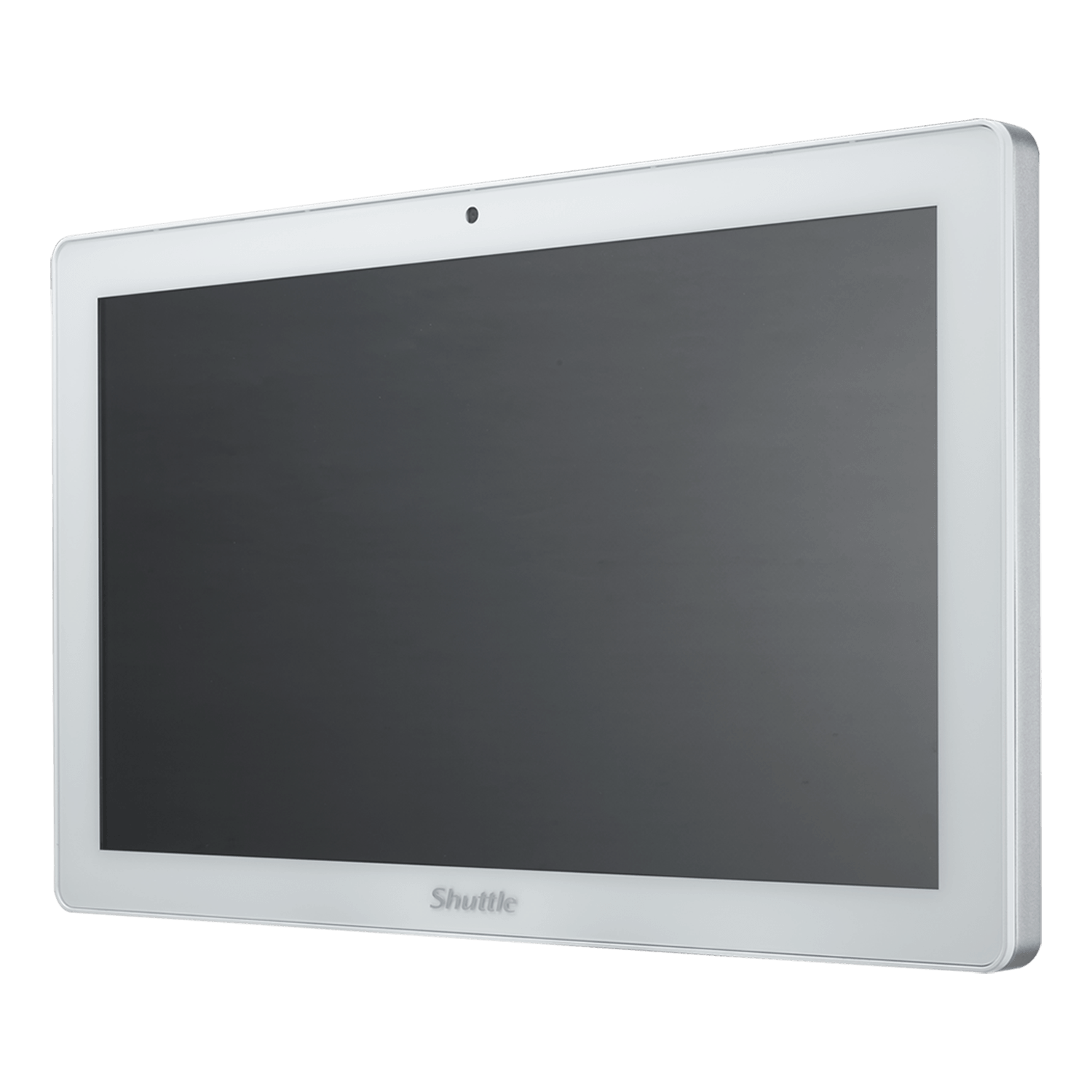

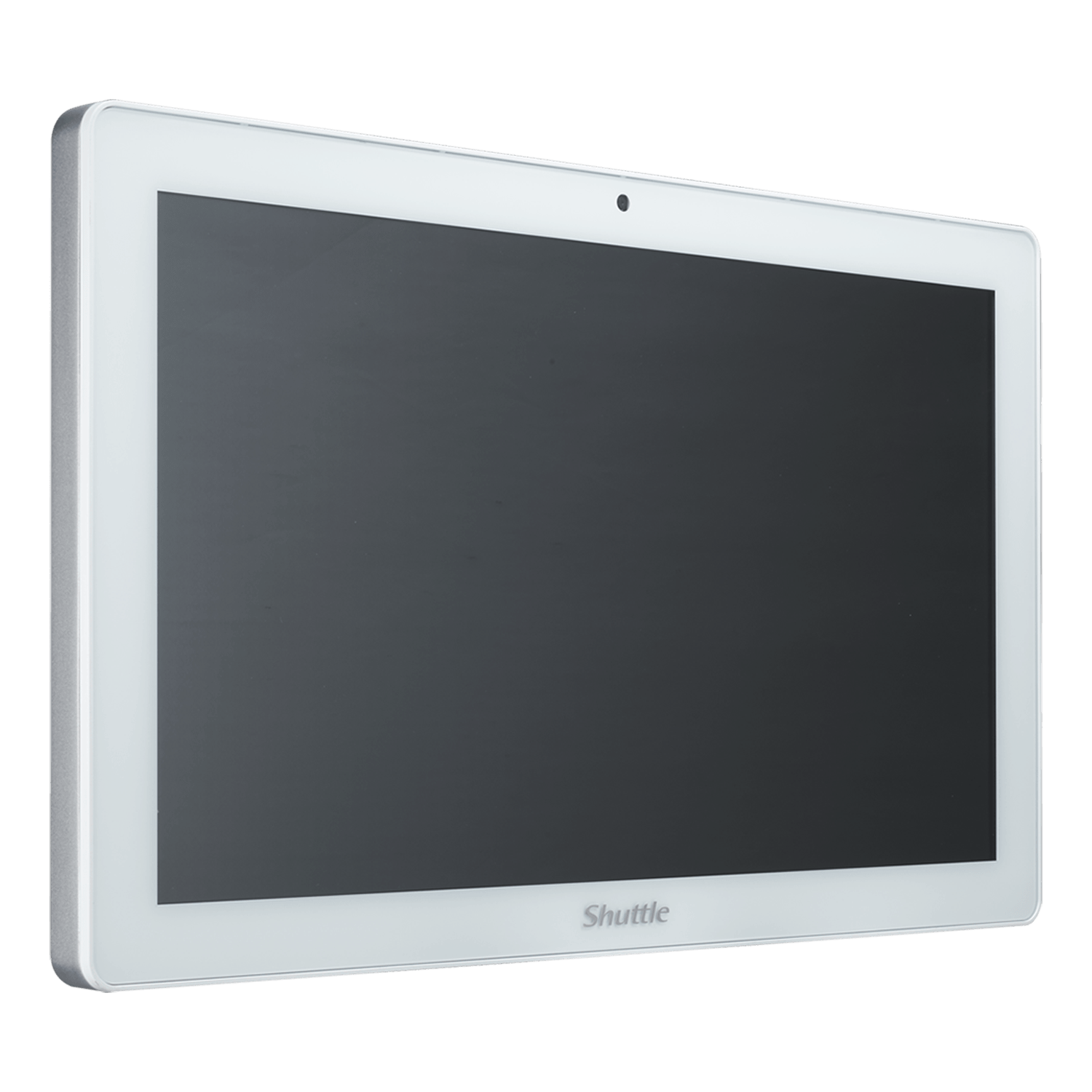

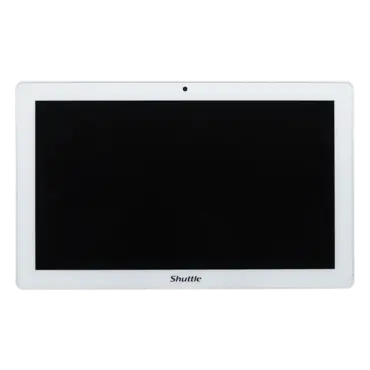

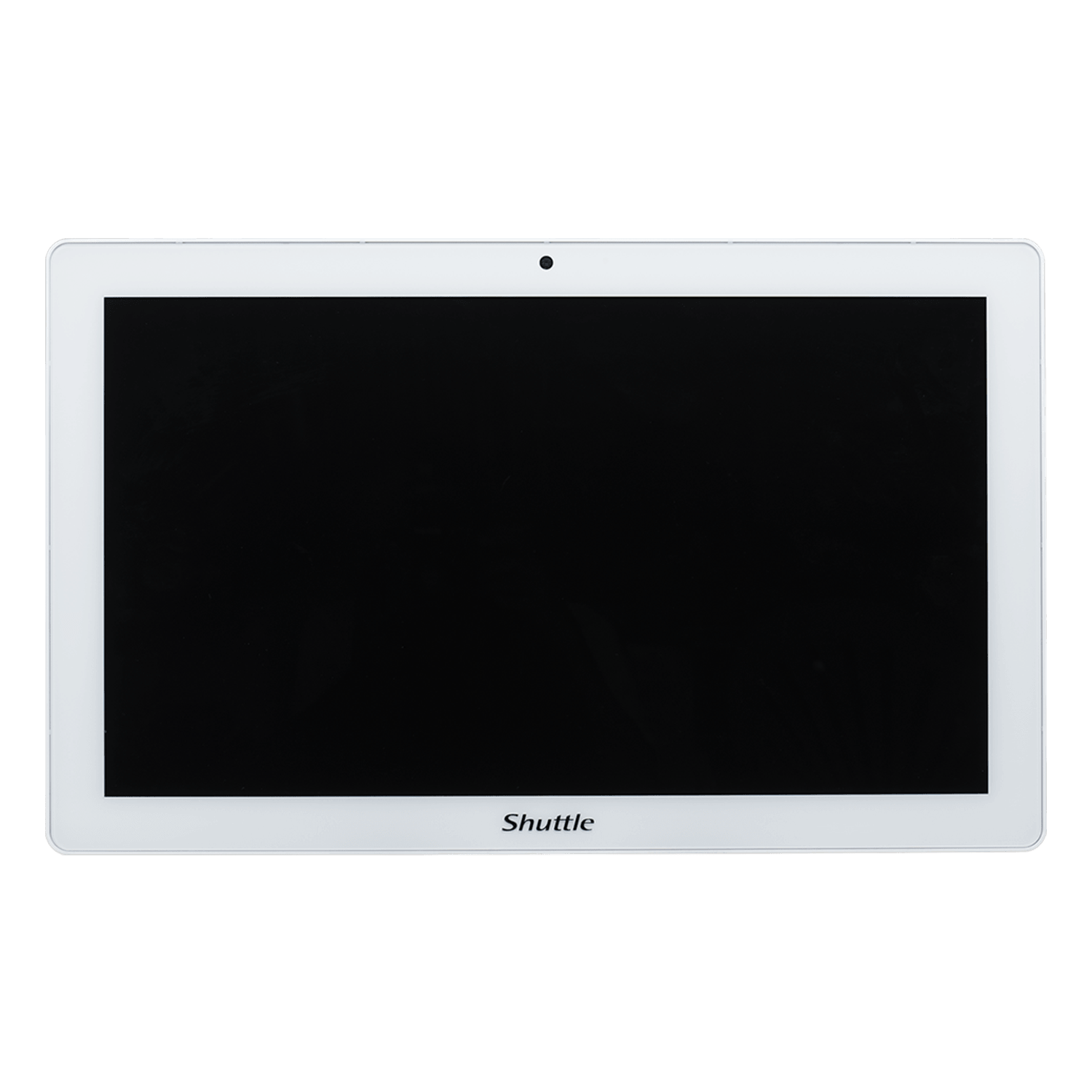

P21WL01UE5 Fanless Panel PC, TAA Compliant, 21.5" Full HD, Intel® Core™ i5-8365UE, IP65, VESA, vPro
- SKU: 19941462
- Manufacturer: SHUTTLE
- MPN: P21WL01UE5
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$1,572.05
| System | |
|---|---|
| Processor |
8th Gen. Intel® Whiskey Lake-U Processors Intel® CoreTM i5-8365UE, Quad Core, 6M Cache, 1.6GHz (4.1GHz), 15W |
| Memory | 2 x 260 pin SO-DIMM up to 64GB Dual Channel DDR4 2400MHz |
| Display and Touch Screen | |
| Display | 21.5” 1920x1080 FHD TFT LCD with 10-Point Capacitive Multi-Touch |
| Viewing Angle (H/V°) | 89 (left), 89 (right), 89 (up), 89 (down) |
| Brightness | 500nits |
| Contrast | 1000 :1 |
| Backlight Lifetime | 30,000 hrs |
| Graphics | |
| Display Interface |
Supports two independent displays 1 x HDMI 1.4b (4K / 30fps) 1 x VGA (optional board) 1 x DVI-I: 1920 x 1080@60Hz (optional board) |
| Storage | |
| Storage |
1 x M.2 2280, M key (PCIe NVMe / SATA) 1 x 2.5” SSD SATA 3.0 drive bay (Swappable, compatible 7mm) |
| Audio | |
| Audio Codec | Realtek ALC662 2-channel |
| Network | |
| Ethernet |
1x Intel® Gigabit Ethernet 1x Intel® GbE LAN or 2.5 GbE (optional) (Support Wake on Lan) |
| WLAN | 1 x M.2 2230, M key with Realtek RTL8821CE 802.11a/b/g/n/ac + Bluetooth 5.0 with 2 internal antenna (default) / external antenna (optional) |

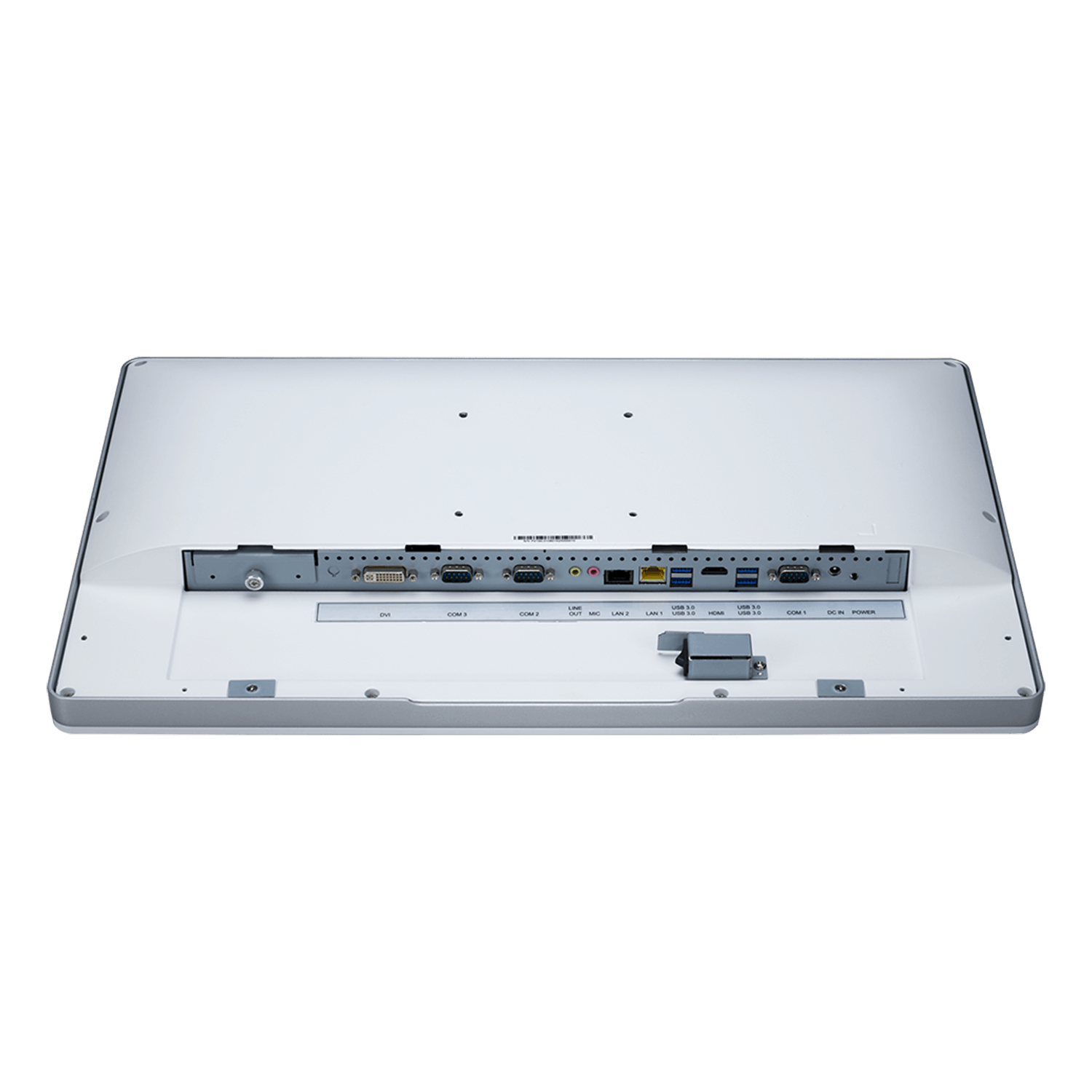

| I/O Interface | |
| LAN | 1 x RJ-45 Gigabit Ethernet 1 x RJ-45 2nd Lan GbE or 2.5GbE (optional) |
| Serial Ports |
1 x RS-232 (DB-9) 1 x RS-232 (DB-9) (optional board) 2 x RS-232/422/485 (DB-9) (RS-232 with power supply: ring in/ 5V (standard) &12V (with specific optional board)) |
| USB | 4 x USB3.2 Gen 1 (Type A) 4 x USB2.0 (optional board) |
| Audio | 1 x Line-out 1 x Mic-in |
| Power | |
| Adapter | 19V/4.74A 90W external adapter |
| Power | 9-36V DC-in (Optional wide range board) |
| Watchdog Timer | |
| Watchdog Timer | 255 Sec. |
| OS Support | |
| OS Support | Windows 10/11 64bit Linux 64bit |
| Mechanism | |
| IP Rating | IP65 Front Panel Protection |
| Mounting | VESA Mount 100 x 100 mm |
| Dimension (WxHxD) | 543 x 334 x 49.9 mm |
| Weight | 7.6kg |
| Environment | |
| Operating Temperature | 0 ~ 40°C |
| Storage Temperature | -20°C ~ 60°C |
| Relative Humidity | 10% - 90% RH (non-condensing) |
| EMC | CE, FCC, VCCI, CEC, BSMI |
| Safety | cTUVus, CB, BSMI |
| RF | US, EU, Taiwan |
