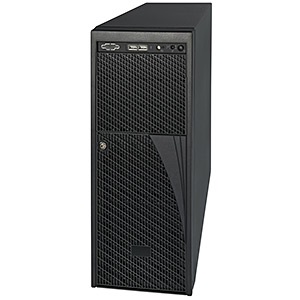

P4308IP4LHGC 4U Pedestal/Rack Workstation Platform, LGA2011 /2, Intel® C602, DDR3-1600 512GB/128GB ECC/UECC /16, PCIe x16 /4, SATA RAID 10 HS /8, VGA, GbLAN /4, 750W (1+1) Rdt PSU
The Intel® Server P4308IP4LHGC features the Intel® Server Board S2600IP, the Intel® Xeon® processor E5-2600 product family, 16 DIMMs, and four 1Gb Ethernet ports. The P4308IP4LHGC is ideal for storage, embedded, or enterprise customers that demand maximum I/O performance and capacity.
|
|
|
Intel® Server System P4200IP Family
Features:
- Eight 3.5" Hot-swap hard drives
- Redundant cooling
- Two 750W, 1200W, or 1600W Platinum efficiency common redundant power supplies
- Supports up to three full size 5.25" optical devices
- Intel® Server Board S2600IP
- Supports the Intel® Xeon® processor E5-2600 product family
- 16 memory sockets support LR/U/R-DIMMs
- Up to eight single-width PCIe* Gen3 slots or four double-width adapters for maximum I/O capacity/flexibility
- Intel® Quad Gigabit Ethernet with Intel® Virtualization Technology
- Onboard flash boot support includes eUSB SSD and SATA DOM
- Intel® Trusted Platform Module (Intel® TPM) header for Intel® Trusted Execution Technology (Intel® TXT) support
Available expansion options include:
- Intel® RAID C600 upgrade key including options for up to eight SAS/SATA ports plus two SATA 6Gb ports
- Intel® I/O Expansion Modules
- Dedicated connector for optional x8 SAS ROC module
4U Pedestal Systems with Exceptional I/O Capacity and Expandable Performance for Any Size Business
The Intel® Server System P4200IP family provides unsurpassed I/O capacity by exposing all 80 lanes of PCIe* Gen3 available in the chipset to offer eight single-width or four double-width card support in addition to a full range of SAS RAID and Intel® I/O Expansion Module options. The Intel® Server System P4200IP family features the Intel® Server Board S2600IP, the Intel® Xeon® processor E5-2600 product family, 16 DIMMs, and four 1Gb Ethernet ports. Also available as an integrated 2U Rack with 2.5” HDDs or as a 4U Pedestal system, the Intel® Server Board S2600IP family delivers powerful performance and the ultimate in flexibility.
The Intel® Server System P4200IP family makes use of several exclusive new Intel® Server Board Technology Innovations. The Intel Advanced Management Technology1 helps simplify and optimize system management for higher capacity and more secure platform management. Intel® Quiet Thermal Technology enhancements, including Advanced Thermal Sensor Array and Thermal Trip Shutdown, provide thermal and acoustic management to reduce unnecessary noise and provide cooling flexibility while maximizing system efficiency. This board also makes use of power delivery enhancements from the Intel® Efficient Power Technology to help improve power efficiency and reliability.
Target Applications
For storage, embedded, or enterprise customers that demand maximum I/O performance and capacity, the Intel® Server System P4200IP family is the flexible and powerful server building block of choice.
Specifications:
| System Order Code |
P4308IP4LHJC |
P4308IP4LHGC |
P4308IP4LHJCL |
P4308IP4LHKC |
| Essentials |
| Limited 3-year warranty |
Yes
|
Yes
|
Yes
|
Yes |
| Extended warranty available for purchase |
Yes
|
Yes
|
Yes |
Yes |
| On-site repair (select countries) |
Yes
|
Yes
|
Yes |
Yes |
| Chassis form factor |
4U Pedestal
|
4U Pedestal
|
4U Pedestal |
4U Pedestal |
| Chassis dimensions |
6.81” x 17.24”x 26.9”
|
6.81” x 17.24”x 26.9”
|
6.81” x 17.24”x 26.9” |
6.81” x 17.24”x 26.9” |
| Board form factor |
Custom 14.2" x 15"
|
Custom 14.2" x 15"
|
Custom 14.2" x 15" |
Custom 14.2" x 15" |
| Rack rails included |
No
|
No
|
No |
No |
| Socket |
Socket R
|
Socket R
|
Socket R |
Socket R |
| Max CPU configuration |
2
|
2
|
2 |
2 |
| Rack-friendly board |
Yes
|
Yes
|
Yes |
Yes |
| Power supply |
1200W Common Redundant Power Supply (Platinum Efficiency)
|
750W Common Redundant Power Supply (Platinum Efficiency)
|
1200W Common Redundant Power Supply (Platinum Efficiency) |
1600W Common Redundant Power Supply (Platinum Efficiency) |
| Power supply type |
AC
|
AC
|
AC |
AC |
| # of power supply |
2
|
2
|
2 |
2 |
|
Redundant fans
|
Yes
|
Supported
|
Supported |
Supported |
|
Redundant power
|
Yes
|
Supported
|
Supported |
Supported |
| Heat sink included |
Yes
|
Yes
|
Yes |
Yes |
| Included items |
Integrated 2S Server System in a 4U Pedestal chassis including (1)Intel® Server Board S2600IP4 , (8) 3.5" Hot-Swap Drive Carriers, (2) 1200W Common Redundant Power Supply (Platinum Efficiency), Redundant Cooling, (2) Tower Passive Heat Sink, (1) RKSATA8 RAID Upgrade Key, and (1) air duct. |
Integrated 2S 4U Pedestal system including (1) Intel® Server Board S2600IP4 , (8) 3.5" Hot-Swap Drive Carriers, (2) 750W Common Redundant Power Supply (Platinum Efficiency), Redundant Cooling, (2) Tower Passive Heat Sink, (1) RKSATA8 RAID Upgrade Key and (1) air duct.. |
ntegrated 2S Server System in a 4U Pedestal chassis including (1)Intel® Server Board S2600IP4L , (8) 3.5" Hot-Swap Drive Carriers, (2) 1200W Common Redundant Power Supply (Platinum Efficiency), Redundant Cooling, (2) Tower Passive Heat Sink, (1) RKSATA8 RAID Upgrade Key, (1) air duct. |
Integrated 2S workstation 4U Pedestal system including (1)Intel® Server Board S2600IP4 , (8) 3.5" Hot-Swap Drive Carriers, (2) 1600W Common Redundant Power Supply (Platinum Efficiency), Redundant Cooling, (2) Tower Passive Heat Sink, (1) ROC Module RMS25CB080, and (1) air duct. |
| # of 3.5" hard drives |
8
|
8
|
8 |
8 |
| 3.5" hard drive support |
Supports 8 hot-swap 3.5" drives
|
Supports 8 hot-swap 3.5" drives
|
Supports 8 hot-swap 3.5" drives |
Supports 8 hot-swap 3.5" Hard Drives |
| Intel® Server Management Software |
Yes
|
Yes
|
Yes |
Yes |
| Memory Specifications |
| Memory types |
DDR3 ECC UDIMM 1333, RDIMM 1600, LRDIMM 1333
|
DDR3 ECC UDIMM 1333, RDIMM 1600, LRDIMM 1333
|
DDR3 ECC UDIMM 1333, RDIMM 1600, LRDIMM 1333 |
DDR3 ECC UDIMM 1333, RDIMM 1600, LRDIMM 1333 |
| # of DIMMs |
16
|
16
|
16 |
16 |
| Max Memory Size (dependent on memory type) |
512 GB |
512 GB |
512 GB |
512 GB |
| Graphics Specifications |
| Integrated graphics |
Yes
|
Yes
|
Yes
|
Yes |
| Expansion Options |
|
PCIe x16 Gen 3
|
4
|
4 |
4 |
4 |
|
PCIe x4 Gen 2.x
|
1
|
1
|
1 |
1 |
|
Intel® I/O Expansion Module PCIe x8 Gen 3
|
1
|
1
|
1 |
1 |
|
Intel® Internal I/O Expansion Module PCIe x8 Gen 3
|
1
|
1
|
|
1 |
| I/O Specifications |
|
# of USB ports
|
5
|
5
|
5 |
5 |
|
# of SATA ports
|
10
|
10
|
10 |
10 |
|
RAID configuration
|
up to SW Raid 5 ((LSI + RSTE)
|
up to SW Raid 5 ((LSI + RSTE)
|
up to SW Raid 5 ((LSI RSTE) |
up to SW Raid 5 ((LSI + RSTE) |
|
# of serial ports
|
2
|
2
|
2 |
2 |
|
Integrated LAN
|
4x 1GbE
|
4x 1GbE
|
4x 1GbE |
4x 1GbE |
|
# of LAN ports
|
4
|
4
|
4 |
4 |
|
Optical drive support
|
Yes
|
Yes
|
Yes |
Yes |
|
Integrated SAS ports
|
8
|
8
|
8 |
8 |
|
Embedded USB (eUSB) solid-state drive option
|
Yes
|
Yes
|
Yes |
Yes |
| Advanced Technologies |
|
Intel® Remote Management Module Support
|
True
|
True
|
True |
True |
|
Integrated BMC with IPMI
|
IPMI 2.0
|
IPMI 2.0
|
IPMI 2.0
|
IPMI 2.0 |
| Intel® TPM Version |
2
|
2
|
2 |
2 |
|
Intel® Intelligent Power Node Manager
|
Yes
|
Yes
|
Yes |
Yes |
| Intel® On-Demand Redundant Power |
Yes
|
Yes
|
Yes |
Yes |
| Intel® Server Board Technology Innovations |
|
Intel® Advanced Management Technology
|
All capabilities1
|
All capabilities1
|
All capabilities1 |
All capabilities1 |
|
Intel® Efficient Power Technology
|
Power delivery2
|
Power delivery2
|
Power delivery2 |
Power delivery2 |
|
Intel® Quiet Thermal Technology
|
All capabilities
|
All capabilities
|
All capabilities
|
All capabilities
|
|
