PDU41003, 16 Outlets, 12-ft cord, Black, Power Distribution Unit
Quantity:
- SKU: 11633806
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: PDU41003
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$759.95
PDU41003, 16 Outlets, 12-ft cord, Black, Power Distribution Unit

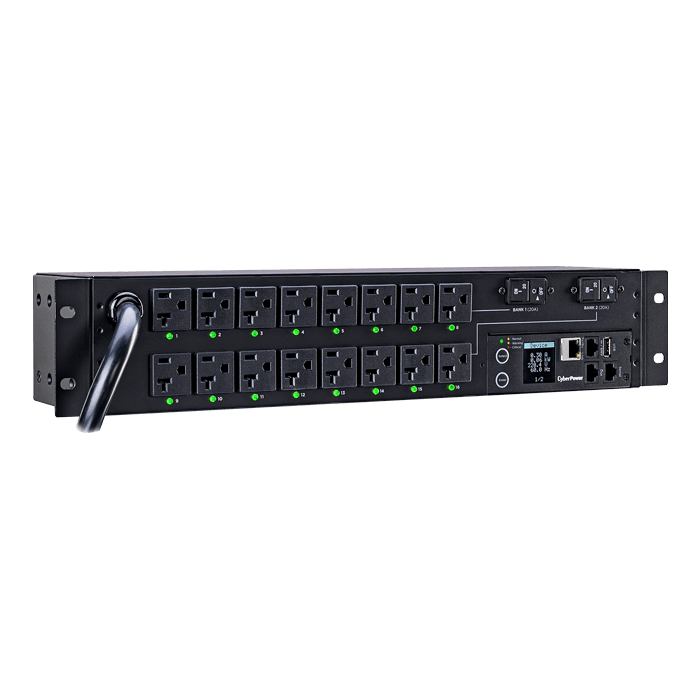

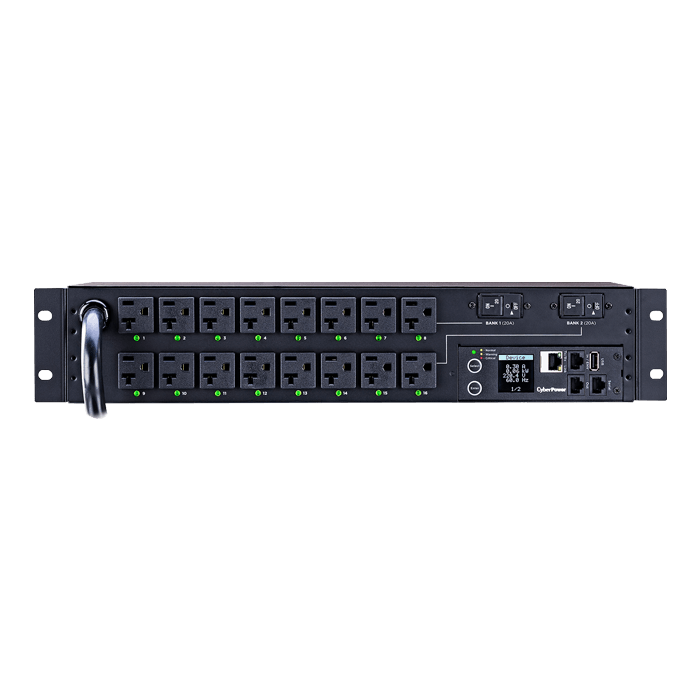

The CyberPower PDU41003, a 2U rackmount, monitored power distribution unit (PDU) provides 100-120Vac, 30A output via sixteen (16) NEMA 5-20R receptacles from a single NEMA L5-30P input power plug. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally from the Power Control Display.
The PDU41003 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.
-
Power Distribution
Delivers AC power to servers, equipment, and connected devices via a power distribution unit. -
Switch-Free Design
Safeguards against accidental power shutdown. -
Switchable Outlets
Provides local and remote control for individual and multiple outlets. Local control: turn on/turn off outlets and disable unused outlets. Remote control: restart outlets and devices, turn on/turn off, schedule power on/off sequencing, and disable unused outlets. -
CyberPower Management Console
Built into Switched PDUs, a CyberPower Management Console is a hardware interface. Users can remotely switch individual PDU outlets or circuits on and off, either immediately or on a schedule, in order to power cycle connected equipment. It monitors the incoming power and power draw from the PDU, sends notifications based on the power status, and logs events. -
Remote and Local Monitoring
The user is able to track PDU vitals both offsite and onsite. It also provides control to turn on/off individual outlets or circuits. -
Automatic Event Notifications
Provide immediate updates about power events via email, SMS text, or SNMP traps. -
Upgradeable Firmware
Downloadable improvements (firmware updates) to programs that run the PDU. -
Power Control Display
Provides up-to-date status information about the PDU and power situation and allows for local set-up and configuration. -
Network-Grade Plugs and Outlets
Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices. -
Long Input Power Cord
Reaches distant power sources, allowing the PDU to be placed where it’s needed. -
Cord Retention Tray
Secures power cords, keeping them organized and accessible. Helps cords stay plugged in. -
Configurable Mounting Brackets
Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount). -
Durable Metal Housing
Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product. -
Three-Year Limited Warranty
Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
| Input | |
| Cord Length | 12 ft (3.7 m) |
| Derated Input Current | 24 A |
| Input Frequency Range | 50 Hz – 60 Hz |
| Input Plug Type | NEMA L5-30P |
| Maximum Input Current | 30A |
| Phase | Single Phase |
| Plug Style | Straight |
| Output | |
| Controllable Outlets | 16 |
| Meter Readout | Power Control Display |
| Nominal Output Voltage | 100 – 120 VAC |
| Outlet Type | 16 – NEMA 5-20R |
| Outlets – # of Banks | 2 |
| Outlets – Front | 16 |
| Outlets – Rear | 0 |
| Outlets – Total | 16 |
| Overload Protection | 20A x 2 |
| Overload Protection (Each Bank) | 20A |
| USB Charge Port | No |
| Management & Communications | |
| Hardware Connection Port |
RJ45 Serial |
| LED Indicators |
Tx/Rx LINK Normal/Warning/Critical Status |
| SNMP / HTTP Remote Monitoring | IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD |
| Physical | |
| Adjustable Mounting Brackets | 1 set |
| Color | Black |
| Cord Retention Tray/Cord Organizers | Yes |
| External Site Ground Pin | Yes |
| Form Factors Supported |
Horizontal or Vertical Wallmount Racks Horizontal or Vertical Mount in a Variety of Other Surface Types |
| Material of Construction | Metal |
| Rack Height | 2U |
| Style |
Horizontal Rackmount Wallmount |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 43.31 x 8.89 x 11.2 (cm) |
| Physical Dimensions – (WxHxD) (in) | 17.05 x 3.5 x 4.41 (in) |
| Physical Dimensions – (WxHxD) (mm) | 433 x 89 x 112 (mm) |
| Physical Weight (kg) | 3.31 |
| Physical Weight (lb) | 7.3 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 9.3 |
| Shipping – Weight (lb) | 20.5 |
| Shipping Dimensions – (WxHxD) (cm) | 25.1 x 15.06 x 50.17 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 9.88 x 5.93 x 19.75 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 250.95 x 150.62 x 501.65 (mm) |
| Environmental | |
| Operating Elevation | 0 – 11483 ft (0 – 3500 m) |
| Operating Relative Humidity | 0 – 95 % (non-condensing) |
| Operating Temperature | 32 – 140 °F (0 – 60 °C) |
| Storage Elevation | 0 – 49213 ft (0 – 14999 m) |
| Storage Temperature | 5 – 149 °F (-15 – 65 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | UL62368 |
| Warranty | |
| Extended Warranty Option | WEXT5YR-PDU1B |
| Product Warranty | 3 Year Limited Warranty |
