PDU41004, 8 Outlets, 12-ft cord, Black, Power Distribution Unit
Quantity:
- SKU: 12438050
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: PDU41004
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$455.98
PDU41004, 8 Outlets, 12-ft cord, Black, Power Distribution Unit

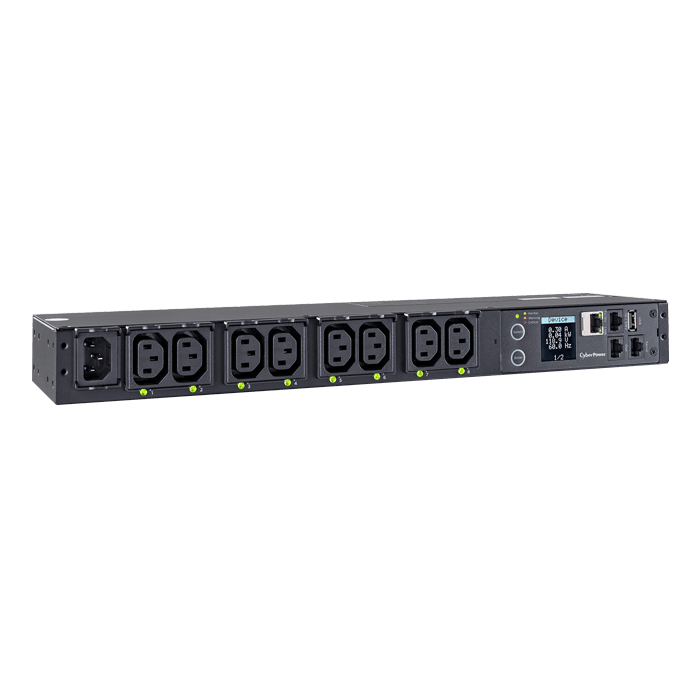

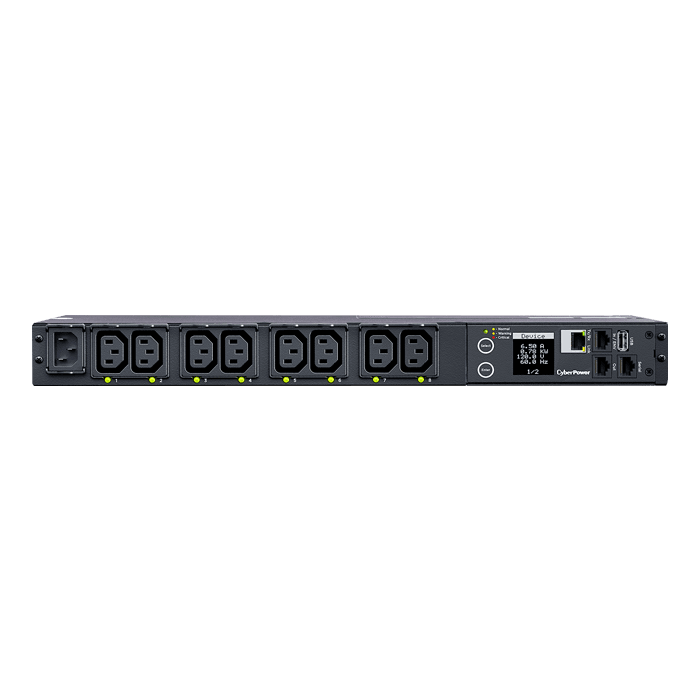

The CyberPower PDU41004, a 1U rackmount switched power distribution unit (PDU), provides 100-240V 15A output via 8 IEC-320 C13 receptacles from a single IEC-320 C14 input power plug. The switched outlet receptacles can be managed over the network by using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally from the Power Control display. The PDU41004 offers outlets that can be turned on, turned off, or recycled on demand. Outlets can be programmed to address a number of needs including remote rebooting of locked equipment, load shedding, power sequencing, and locking out unauthorized loads.
With a three-year limited warranty, you can trust CyberPower’s commitment to high quality.
-
Power Distribution
Delivers AC power to servers, equipment, and connected devices via a power distribution unit. -
Switch-Free Design
Safeguards against accidental power shutdown. -
Switchable Outlets
Provides local and remote control for individual and multiple outlets. Local control can turn on/turn off outlets and disable unused outlets. Remote control can restart outlets, restart devices, turn on/turn off outlets, schedule power on/off sequencing, and disable unused outlets. -
CyberPower Management Console
Built into Switched PDUs, a CyberPower Management Console is a hardware interface. Users can remotely switch individual PDU outlets or circuits on and off, immediately or on a schedule, to power cycle connected equipment. The CyberPower Management Console monitors the incoming power and power draw from the PDU, sends notifications based on the power status, and logs events. -
Remote and Local Monitoring
The user can track PDU vitals both offsite and onsite. Remote and local monitoring provides control to turn on/off individual outlets or circuits. -
Automatic Event Notifications
Provides the user with immediate updates about power events via email, SMS text, or SNMP traps. -
Upgradeable Firmware
Downloadable improvements (firmware updates) to programs that run the PDU. -
Power Control Display
Provides up-to-date status information about the PDU, the power situation, and allows for the local set-up and configuration. -
Network-Grade Plugs and Outlets
Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices. -
Long Input Power Cord
Reaches distant power sources, allowing the PDU to be placed where it’s needed. -
Cord Retention Tray
Secures power cords, keeping them organized and accessible. Helps cords stay plugged in. -
Configurable Mounting Brackets
Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount). -
Durable Metal Housing
Protects internal components and resists damage from impact or abrasions within challenging industrial environments. The durable metal housing also extends the life of the product. -
Three-Year Limited Warranty
Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details. -
What’s in the box
PDU, 4 Mounting Brackets (2 short and 2 long), 12 (Flat Head M4x8) Bracket Mounting Screws, 6 (M5x12) Rack Mounting Screws/Washers, Cord Retention Tray, 12 Cable Ties, 6 (M3x6) Cord Retention Tray Mounting Screws, RJ45/DB9 Serial Port Connection Cable, 10ft Power Cord IEC-320 C13/C14, User Manual, Registration and Software download Cards
| Input | |
| Cord Length | 10 ft (3.0 m) |
| Derated Input Current | 12 A |
| Input Frequency Range | 50 Hz – 60 Hz |
| Input Plug Type | IEC-320 C14 |
| Maximum Input Current | 15A |
| Nominal Input Voltage | 100 – 240 VAC |
| Phase | Single Phase |
| Plug Style | Straight (Socket) |
| Output | |
| Controllable Outlets | 8 |
| Meter Readout | Power Control Display |
| Nominal Output Voltage | 100 – 240 VAC |
| Outlet Type | 8 – IEC-320 C13 |
| Outlets – # of Banks | 1 |
| Outlets – Front | 8 |
| Outlets – Rear | 0 |
| Outlets – Total | 8 |
| Overload Protection | None |
| USB Charge Port | No |
| Management & Communications | |
| Environmental Sensor | Optional, via RJ45 |
| Hardware Connection Port |
RJ45 Universal (RJ45) |
| LCD | Multifunction LCD |
| LED Indicators |
Tx/Rx LINK Normal/Warning/Critical Status |
| Modular Expandability (Cascading) | Yes, via RJ45 |
| Outlet switching | Yes |
| SNMP / HTTP Remote Monitoring | IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD |
| Upgradeable firmware | Yes |
| Physical | |
| Adjustable Mounting Brackets | 2 sets (L-Short, L-Long) |
| Color | Black |
| Cord Retention Tray/Cord Organizers | Yes |
| External Site Ground Pin | Yes |
| Form Factors Supported |
Horizontal or Vertical Rackmount Wallmount |
| Material of Construction | Metal |
| Rack Height | 1U |
| Dimensions | |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 9.47 |
| Shipping – Weight (lb) | 20.88 |
| Shipping Dimensions – (WxHxD) (cm) | 25.4 x 6.96 x 49.23 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 10.0 x 2.74 x 19.38 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 254.0 x 69.6 x 492.25 (mm) |
| Environmental | |
| Operating Elevation | 0 – 11483 ft (0 – 3500 m) |
| Operating Relative Humidity | 0 – 95 % (non-condensing) |
| Operating Temperature | 32 – 140 °F (0 – 60 °C) |
| Storage Elevation | 0 – 49213 ft (0 – 14999 m) |
| Storage Temperature | 5 – 149 °F (-15 – 65 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | UL62368 |
| Warranty | |
| Extended Warranty Option | WEXT5YR-PDU1B |
| Product Warranty | 3 Year Limited Warranty |
