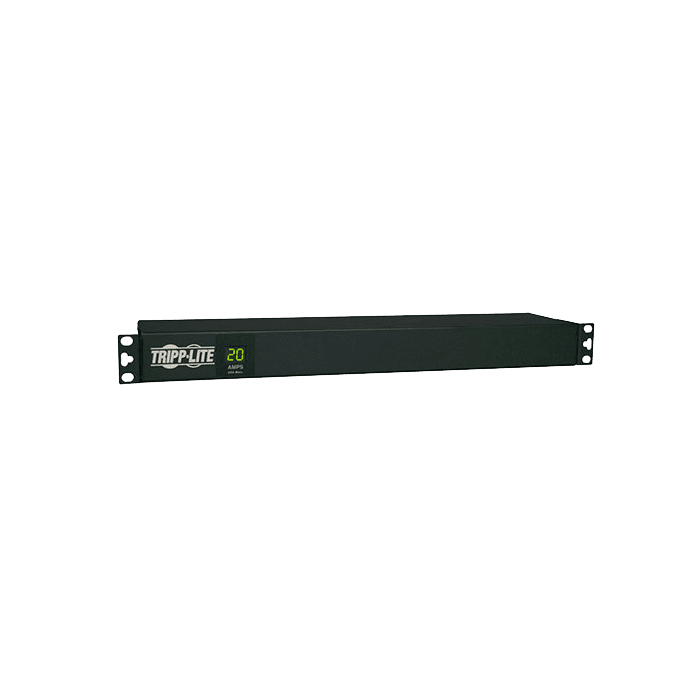

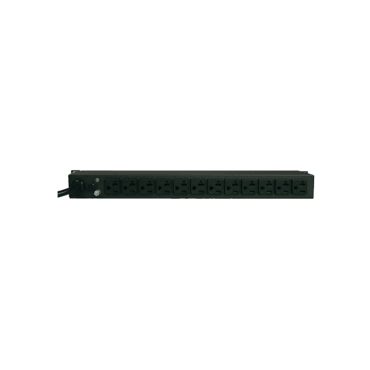

PDUMH20-6, 1U Rack, 12 Outlets, 6-ft cord, 120V/20A, Black, Single-Phase Metered PDU

SKU: 9511474

Manufacturer: TRIPP LITE

MPN: PDUMH20-6

Availability: Available


Price: $142.62
or as low as $5/month
Quantity:

Tripp Lite Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital meter. Enables visual current monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

  • 20A single phase 120V Metered Power Distribution Unit / PDU(Agency de-rated to 16A continuous)

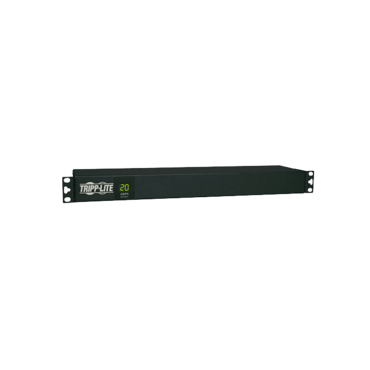

  • Built-in 2 digit visual meter continuously reports PDU load level in amps
  • Attached NEMA L5-20P 20A 120V input plug with 6 ft. / 1.8m line cord
  • Includes 5-20P 20A 120V plug adapter
  • 1U horizontal rackmount format installs in one rack space

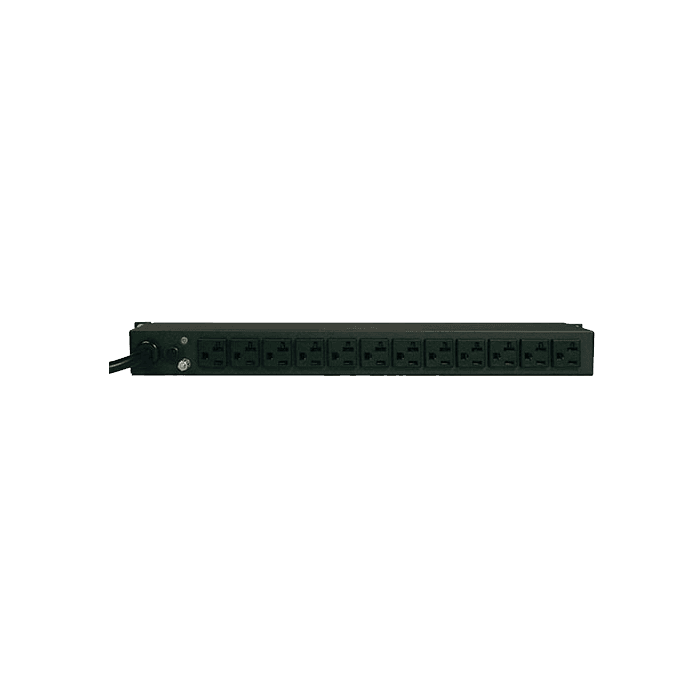

  • 12 NEMA 5-15/20R outlets
  • Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
  • Mounting ears are reversible for front or rear facing rackmount installation
  • Optional PDUSIDEBRKT enables 0U vertical rackmount in compatible racks
  • Back panel grounding lug

Package Includes

  • PDUMH20 Metered rackmount PDU
  • L5-20R to 5-20P plug adapter
  • Owner's manual with warranty information
OVERVIEW
PDU Type Metered
OUTPUT
Output Capacity Details 2.03kW (127V), 1.92kW (120V), 1.6kW (100V) / 20A total capacity (Agency de-rated to 16A); 16A max per outlet
Frequency Compatibility 50 / 60 Hz
Output Receptacles (12) 5-15/20R
Output Nominal Voltage 100; 120; 127
Overload Protection 20A circuit breaker
INPUT
PDU Input Voltage 100; 120; 127
Recommended Electrical Service 20A 120V
Maximum Input Amps 20
Maximum Input Amps Details Agency de-rated to 16A continuous
PDU Plug Type NEMA 5-20P; NEMA L5-20P
Input Cord Length (ft.) 6
Input Phase Single-Phase
USER INTERFACE, ALERTS & CONTROLS
Front Panel LCD Display Digital display reports total PDU output current in amps
Switches n/a
PHYSICAL
Minimum Required Rack Depth (inches) 8.8
Shipping Dimensions (hwd / in.) 2.25 x 20.5 x 10
Shipping Weight (lbs.) 5.9
Unit Dimensions (hwd / in.) 1.75 x 17.5 x 3.75
Unit Weight (lbs.) 4.6
Material of Construction Metal
Form Factors Supported 1U rackmount, 0U vertical rackmount, wall-mount, and under-counter installation
PDU Form Factor Horizontal (1U, 2U, etc)
Outlets Measurement (Center to Center) 30.20mm
ENVIRONMENTAL
Storage Temperature Range 5 to 122F (-15 to 50C)
Relative Humidity 5 to 95% non-condensing
Operating Elevation (ft.) 0-10,000
SPECIAL FEATURES
TVSS Grounding Back panel grounding lug
CERTIFICATIONS
Certifications Tested to UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada), RoHS Compliant
WARRANTY
Product Warranty Period (Worldwide) 2-year limited warranty
