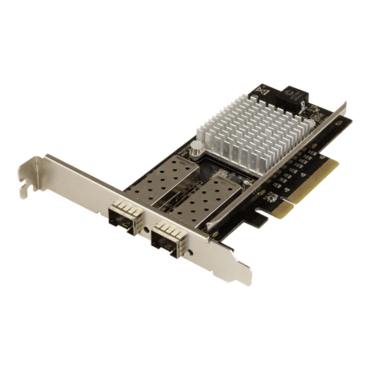

PEX20000SFPI, 10Gbps, 2xSFP+, PCIe Network Adapter

Quantity:
  • SKU: 9764447
  • Manufacturer: STARTECH.COM
  • MPN: PEX20000SFPI
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$401.52
Quantity:
PEX20000SFPI, 10Gbps, 2xSFP+, PCIe Network Adapter

Get fast, high-bandwidth connectivity with this cost-effective fiber network card. It adds two open SFP+ slots to your server or high-powered workstation, giving you an easy way to connect your server or workstation to a 10 Gigabit fiber network using the SFP+ modules of your choice.

Transfer files at faster speeds

Large file transfers, multimedia content and increased numbers of network users create constant pressures for more bandwidth in your network infrastructure. This fiber NIC lets you harness the speed and stability of a 10 Gigabit network. The NIC supports data transfers at up to 10Gbps per port, or up to 20Gbps per port in full-duplex mode.

Add scalable network connections to your server or workstation

The fiber NIC is compatible with most 10GbE SFP+ transceivers, giving you flexible configuration options to connect your computer directly to a fiber network at greater distances.

The card features two open SFP+ slots with support for interchangeable SFP+ modules, including the StarTech.com 10GBase-SR SFP+ Fiber Transceiver Module (SKU: SFP10GSRST). This gives you the option to use the modules that best suit your network needs based on distance and connector type. StarTech.com SFP+ Cables provide a dependable solution for linking telecom and data communications equipment, such as routers and switches.

Enhance your network capabilities

The 10 Gigabit network card features the Intel® 82599 chipset, designed to deliver the power, performance and enhanced capabilities you need for reliable network connections to your server or computer. The Intel chip offers many advanced features including Intel® Virtualization Technology for connectivity, PXE network boot support and up to 15K jumbo frame support.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

  • Mac Address Pass-Through Utility: To improve network security.

  • Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.

  • Add two 10GbE SPF+ slots to server or workstation for fast, high bandwidth connectivity
  • Intel 82599 chipset with Intel® Virtualization Technology for connectivity
  • Up to 20Gbps (full duplex) bandwidth per port
  • PXE network boot support
  • Compliant with IEEE 802.3ae (10GBASE-LR/SR only) and IEEE 802.3aq (10GBASE-LRM)
  • Compliant with PCI Express Rev 2.0 specification, using PCIe x8 (or higher) slot
  • Supports IEEE 802.1Q VLAN tagging
  • Support for 802.3ad Link Aggregation
  • Up to 15K jumbo frame support
  • Dual profile (LP bracket included)
  • CONNECTIVITY TOOLS: Provided with this device, the application improves performance and security, featuring MAC Address Changer & Wi-Fi Auto Switch utilities
Warranty Information Warranty 2 Years
Connector(s) Connector Type(s) 1 - PCI Express x8
Internal Ports 2 - SFP+ Slot
Environmental Operating Temperature 5°C to 50°C (41°F to 122°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Humidity 20% ~ 80% RH
Hardware Ports 2
Interface Fiber (10 Gigabit Ethernet)
Bus Type PCI Express
Card Type Standard Profile (LP bracket incl.)
Industry Standards IEEE 802.3ae (10GBASE-LR/SR only), IEEE 802.3aq (10GBASE-LRM)
PCI Express Rev 2.0, using PCIe x8 (or higher) slot
Chipset ID Intel - 82599
Packaging Information Package Height 3,0 cm [1,2 in]
Package Length 17,0 cm [6,7 in]
Shipping (Package) Weight 178,0 g [6,3 oz]
Package Width 14,3 cm [5,6 in]
Performance Maximum Data Transfer Rate 20000 Mbps (20 Gbps) - Full-Duplex
Compatible Networks 10 Gbps
Full Duplex Support Yes
Jumbo Frame Support 9K max.
Promiscuous Mode Yes
Supported Protocols IEEE 802.3ad (Link Aggregation)
IEEE 802.3x (2005 Flow Control Support)
IEEE 802.1Q (VLAN tagging)
Physical Characteristics Color Black
Material Steel
Product Length 13,5 cm [5,3 in]
Product Width 1,8 cm [0,7 in]
Product Height 12,0 cm [4,7 in]
Weight of Product 102,0 g [3,6 oz]
Software OS Compatibility Windows® 7, 8, 8.1, 10, 11
Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019
(Windows Drivers are supported in 64-bit only)
Linux 2.6.24 to 4.11.x LTS Versions only
What's in the Box Included in Package 1 - PCIe 10GBase Fiber Card
1 - Low-profile bracket
1 - Quick install guide
