PEX300WN2X2, Internal, 2.4GHz, 300 Mbps, PCI Express 2.0 x1, Wireless Adapter

Quantity:
  • SKU: 7378620
  • Manufacturer: STARTECH.COM
  • MPN: PEX300WN2X2
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$30.00
Quantity:

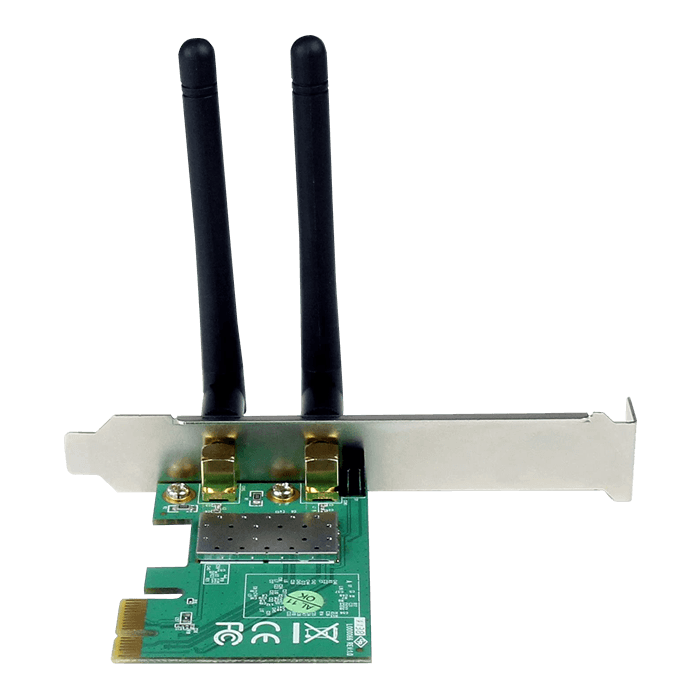

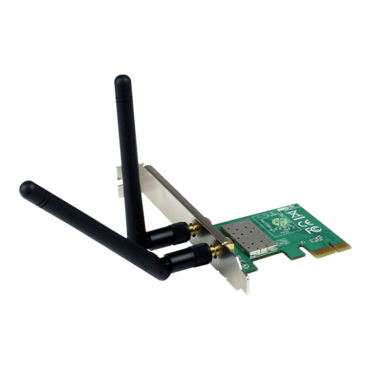

PEX300WN2X2, Internal, 2.4GHz, 300 Mbps, PCI Express 2.0 x1, Wireless Adapter

The PEX300WN2X2 PCI Express Wireless N Card (PCIe x1) adds high speed wireless network connectivity to almost any PCI Express-enabled desktop/workstation PC. Using a 2T2R (2 Transmitter/2 Receiver) design over the 2.4GHz frequency, this PCIe wireless card provides up to 300Mbps of data bandwidth over an 802.11n network, while improving signal reception and range.

  • 2 Transmitter/2 Receiver (2x2:2) antenna configuration
  • Compliant with IEEE 802.11n standard, with support for up to 300Mbps of wireless data bandwidth
  • Backward compatible with IEEE 802.11b/g standards for up to 11/54Mbps connections respectively with Wireless-B and Wireless-G networks
Warranty Information
Warranty 2 Years
Hardware
Antenna Configuration 2x2:2 (TxR:S)
Bus Type PCI Express
Card Type Standard Profile (LP bracket incl.)
Chipset ID Ralink RT5392
Industry Standards IEEE 802.11b, IEEE 802.11g, IEEE802.11n
Interface Wireless Ethernet
Performance
Bandwidth 20/40 MHz
Frequency Range 2.4 GHz ~ 2.484 GHz
Full Duplex Support Yes
Maximum Data Transfer Rate 802.11n: 300 Mbps
Modulation OFDM/DSSS/DBPSK/DQPSK/CCK
Security Features:
TKIP/AES
WEP Data Encryption
WPA Data Encryption
Supported Protocols CSMA/CA
