PEX867WAC22, AC1200, Dual-Band, Wi-Fi 5, PCIe Wireless Adapter

Quantity:
  • SKU: 8779756
  • Manufacturer: STARTECH.COM
  • MPN: PEX867WAC22
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$90.55
Quantity:
PEX867WAC22, AC1200, Dual-Band, Wi-Fi 5, PCIe Wireless Adapter

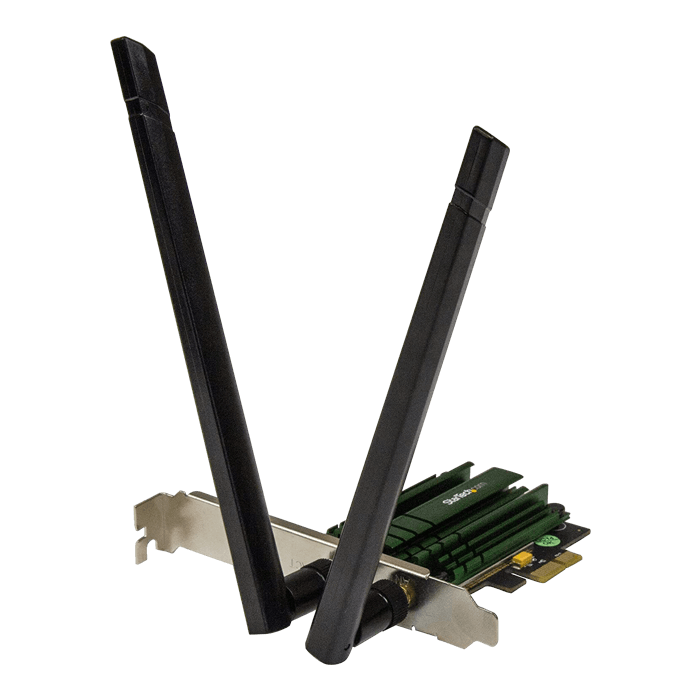

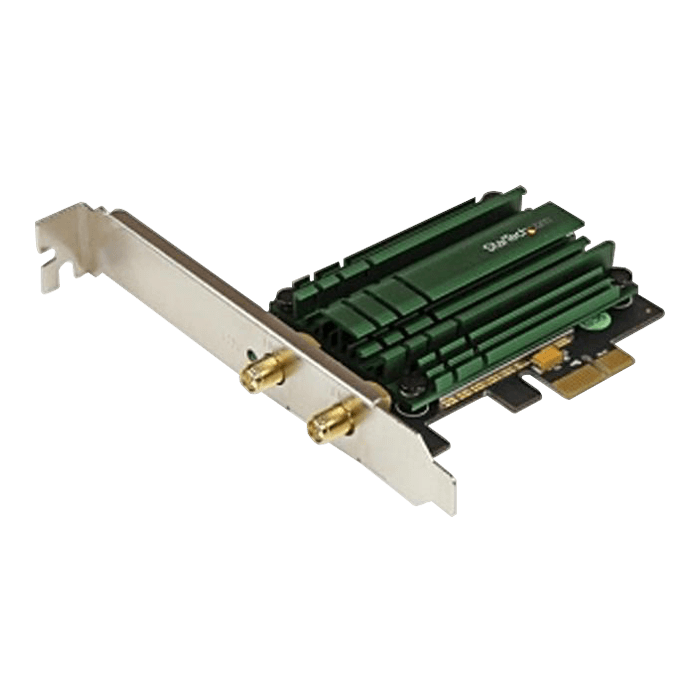

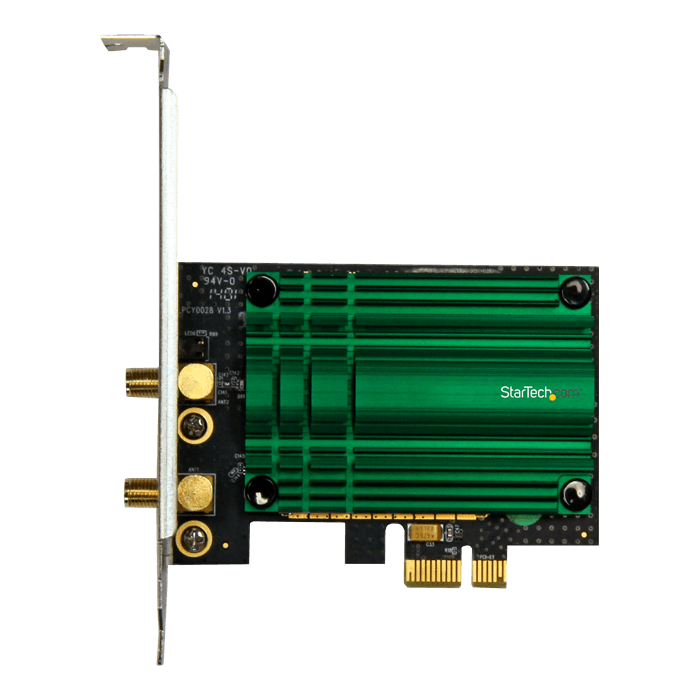

This versatile PCIe wireless card features a 2T2R (2 transmitter, 2 receiver) detachable antenna design, with an included magnetic antenna stand that can easily be mounted to the top or side of your PC case. Plus, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers. To integrate with all of your networking devices, the adapter is also backward compatible with 802.11a/b/g/n networks.

  • Wireless AC1200 compatible (867 Mbps + 300 Mbps)
  • Compliant with 802.11 a/b/g/n/ac standards
  • Dual band 2.4 / 5 GHz support (802.11ac is 5 GHz only)
  • PCI Express host interface
  • 2 Transmitter/2 Receiver (2x2:2) antenna configuration

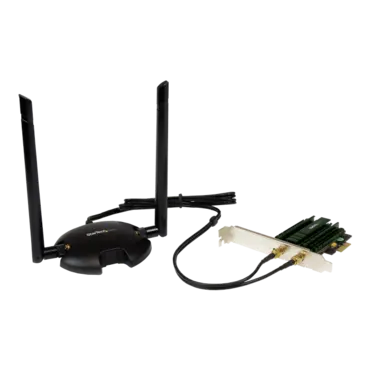

  • Included magnetic antenna stand for side-mounting on your PC case
  • Supports WEP (64-128-bit), WPA and WPA2 wireless security
  • Supports WMM Quality of Service
  • Supports Soft AP mode
  • Configured with standard profile bracket, low profile/half-height bracket included
Warranty 2 Years
Connector Type(s) 1 - PCI Express x1
1 - Wireless AC (IEEE 802.11ac)
External Ports 2 - RP-SMA (Coax, Reverse Polarity SubMiniature A)
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature 0°C to 70°C (32°F to 158°F)
Humidity 10~90% RH
Interface Wireless Ethernet
Bus Type PCI Express
Card Type Standard Profile (LP bracket incl.)
Antenna Configuration 2x2:2 (TxR:S)
Industry Standards IEEE 802.11ac Draft 2.0, IEEE 802.11n, IEEE 802.11g, IEEE 802.11a, IEEE 802.11b
Chipset ID Realtek - RTL8812AE
LED Indicators 1 - Link / Act
Package Height 2.3 in [59 mm]
Package Length 8.3 in [21 cm]
Package Width 6.1 in [15.6 cm]
Package Quantity 1
Shipping (Package) Weight 13.7 oz [388 g]
Maximum Data Transfer Rate 867 Mbps (5 GHz)
300 Mbps (2.4 GHz)
Full Duplex Support Yes
Frequency Range 2.400 ~ 2.484GHz
5.180 ~ 5.850GHz
Security Features WEP Data Encryption
WPA and WPA2-PSK Data Encryption
TKIP/AES
WPA and WPA2 Enterprise Data Encryption
Color Green
Material Steel
Product Length 3.4 in [87 mm]
Product Width 0.7 in [18 mm]
Product Height 4.7 in [12 cm]
Weight of Product 2.9 oz [82 g]
OS Compatibility Windows® XP, 7, 8, 8.1, 10, 11
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
System and Cable Requirements Available PCI Express x1 (or higher) slot
Included in Package 1 - PCI Express Wireless AC Card
2 - 5 dBi Dual Band Antennas
1 - Antenna Stand
1 - Low Profile Bracket
1 - Driver CD
1 - Instruction Manual
