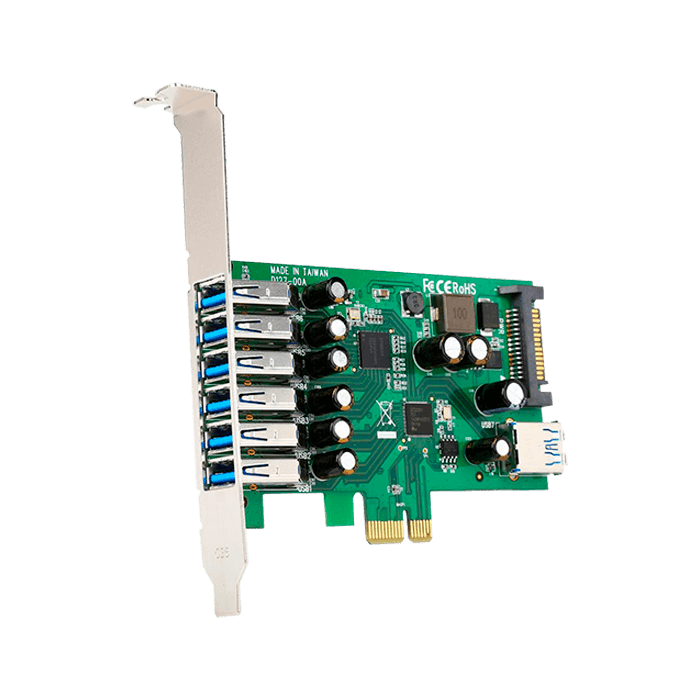

PEXUSB3S7 7 Ports USB 3.0 PCI Express Card

SKU: 9483229

Manufacturer: STARTECH.COM

MPN: PEXUSB3S7

Availability: Available


Price: $60.58
or as low as $2/month
Quantity:
  • Extend your system capabilities by adding 7 USB 3.0 ports – 6 external and 1 internal – to any PCIe compatible computer

  • Unique dual-profile design fits standard and low-profile computers

  • Get up and running quickly with native OS support in Windows 8.1, 8, and Linux kernel 2.6.31 or later

  • Enjoy fast file transfers with USB 3.0 5Gbps and UASP support

  • Backward compatible with USB 2.0 and 1.x devices

  • SATA power connector with up to 900mA per port for high-power USB devices

  • PCIe x1 interface compliant with PCI Express 2.0 specifications

Warranty Information
Warranty 2 Years
Hardware
Bus Type PCI Express
Card Type Standard Profile (LP bracket incl.)
Chipset ID Renesas / NEC - µPD720201 & µPD720210
Industry Standards USB 3.0 Specification Rev. 1.0
PCI Express Base Specification Rev. 2.0
Intel xHCI Specification Rev. 1.0
Interface USB 3.0
Port Style Integrated on Card
Ports 7
Performance
Maximum Cable Length 9.8 ft [3 m]
Maximum Data Transfer Rate 5 Gbps
MTBF 1,920,042 Hours
Type and Rate USB 3.0 - 5 Gbit/s
UASP Support Yes
Connector(s)
Connector Type(s) 1 - PCI Express x1 Male
External Ports 6 - USB Type-A (9 pin) USB 3.0 Female
Internal Ports 1 - SATA Power (15 pin) Plug
1 - USB Type-A (9 pin) USB 3.0 Female
Software
OS Compatibility Windows® XP, Vista, 7, 8, 8.1, 10
Windows Server® 2008 R2, 2012, 2012 R2, 2016
Linux 2.6.31 to 4.4.x LTS Versions only
Special Notes / Requirements
Note The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps.
System and Cable Requirements PCI Express enabled computer or server with an available PCI Express x1 slot or higher (x4, x8, x16)
SATA power connector (recommended, but optional)
Environmental
Humidity 20~80% RH
Operating Temperature 5°C to 50°C (41°F to 122°F)
Storage Temperature -25°C to 70°C (-13°F to 158°F)
Physical Characteristics
Product Height 4.7 in [120 mm]
Product Length 4.1 in [105 mm]
Product Weight 2.5 oz [72 g]
Product Width 0.6 in [15 mm]
Packaging Information
Shipping (Package) Weight 5.3 oz [150 g]
What's in the Box
Included in Package 1 - 7 Port PCI Express USB 3.0 Card
1 - Low-Profile Bracket
1 - Driver CD
1 - Instruction Manual
