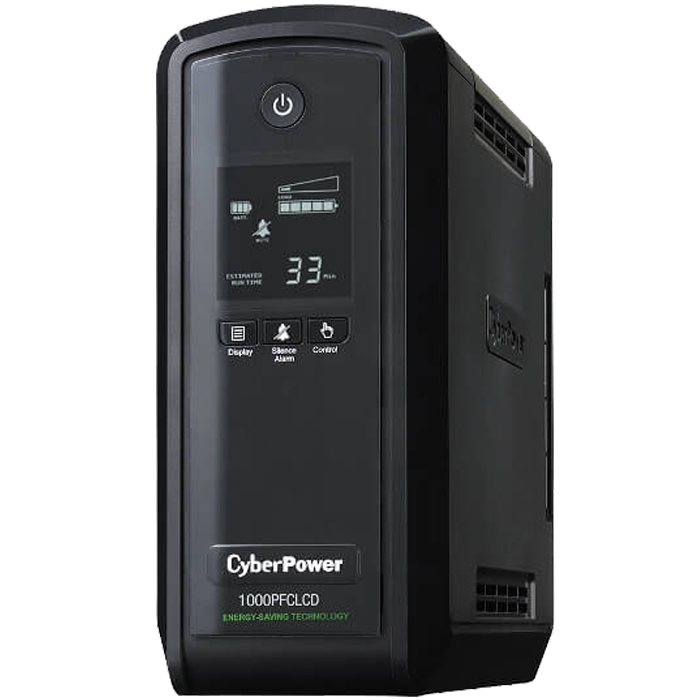

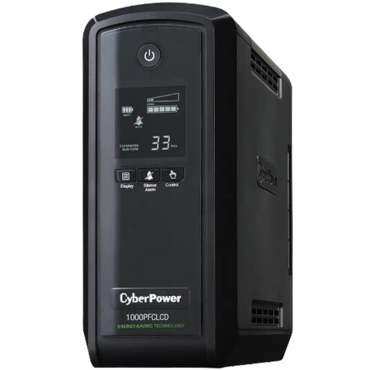

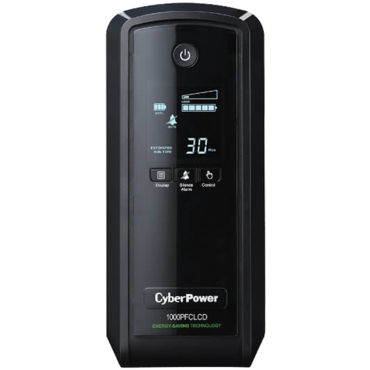

The CyberPower CP1000PFCLCD PFC Sinewave™ UPS System with pure sine wave output and multifunction LCD safeguards mid- to high-end computer systems, servers and networking hardware that use conventional and Active Power Factor Correction (PFC) power supplies. Its automatic voltage regulation (AVR) technology delivers clean and consistent AC power, protecting connected equipment and preventing costly business interruptions. This UPS system is ENERGY STAR® qualified with patented GreenPower UPS™ Bypass circuitry to save on energy costs by reducing energy consumption and heat buildup.
CyberPower’s PFC Sinewave UPS Systems with pure sine wave output solves the critical compatibility issues of non-sine wave UPS products working with computing systems using Active PFC power supplies (ENERGY STAR 5.0). With PC manufacturers adopting high-efficiency Active PFC power supplies—your equipment may be at risk. CyberPower’s innovative PFC Sinewave UPS is an affordable solution that ensures equipment utilizing Active PFC power supplies do not unexpectedly shutdown or experience harmful stress when switching from AC power to UPS battery power.
General | |
---|---|
UPS Topology | Line Interactive |
Energy Saving | GreenPower UPS™ Bypass Technology |
ENERGY STAR® Qualified | Yes |
Active PFC Compatible | Yes |
Input | |
Voltage | 90Vac - 139Vac |
Adjustable Voltage Range | 78Vac - 142Vac |
Automatic Voltage Regulation (line mode) | 12% |
Frequency | 57Hz - 63Hz |
Plug Type | NEMA 5-15P |
Plug Style | Right Angle, 45° Offset Right |
Cord Length | 5' |
Output | |
VA | 1,000 |
Watts | 600 |
On Battery Voltage | 120Vac ± 5% |
On Battery Frequency | 60Hz ± 1% |
On Battery Waveform | Sine Wave |

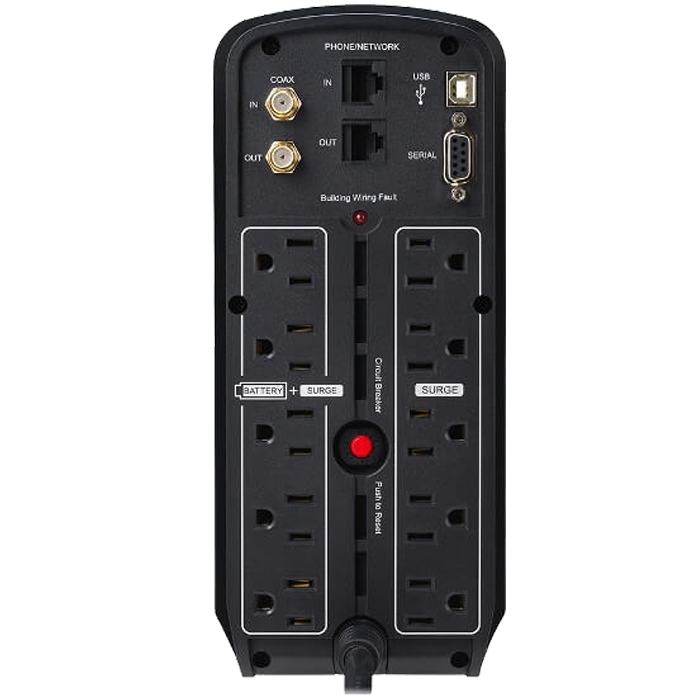

Outlets - Total | 10 |
Outlet Type | NEMA 5-15R |
Outlets - Battery & Surge Protected | 5 |
Outlets - Surge-Only Protected | 5 |
USB Charge | No |
Overload Protection | Internal circuitry limiting / circuit breaker |
Transfer Time | 4ms |
Battery | |
Runtime at Half Load (min) | 9 |
Runtime at Full Load (min) | 3 |
Battery Type | Sealed Lead-Acid |
Battery Size | 12V/9AH |
Hot-Swappable | No |
Replacement Battery | RB1290 |
Battery Quantity | 1 |
User Replaceable | Yes |
Typical Recharge Time | 8 Hours |
Surge Protection & Filtering | |
Surge Suppression | 1,030 Joules |
Phone RJ11 / Ethernet RJ45 | 1-In, 1-Out (Combo) |
Coax Protection RG6 | 1-In, 1-Out |
Management & Communications | |
Multifunction LCD Panel | Displays: Current/Load Level, Runtime, Battery Level, AVR In Use, Battery In Use, Input Voltage, Output Voltage, Output Frequency, Overload, Wiring Fault, Silent Mode |
HID Compliant USB Port | Yes |
Serial Port | Yes |
EPO Port | No |
Management Cable | USB Cable |
LED Indicators | Power On, Wiring Fault |
Audible Alarms | On Battery, Low Battery, Overload, Fault |
Software | PowerPanel® Personal Edition |
Physical | |
Form Factor | Mini-Tower |
Dimensions (WxHxD) (in.) | 3.9 x 9.1 x 10.4 |
Weight (lbs.) | 15.9 |
Environmental | |
Operating Temperature | 32°F to 104°F / 0°C to 40°C |
Operating Relative Humidity | 0% - 90% non-condensing |
Certifications | |
Safety | UL1778, cUL 107.3, FCC DOC Class B |
Environmental | RoHS Compliant |
Warranty | |
Product Warranty | 3 Years Limited |
Connected Equipment Guarantee | Lifetime |
CEG Amount | $350,000 |
