PFC Sinewave CP1500PFCLCD, 1500 VA/1000 W, Sine Wave, Tower UPS
The CyberPower CP1500PFCLCD PFC Sinewave UPS System with pure sine wave output and multifunction LCD safeguards mid- to high-end computer systems, servers and networking hardware that use conventional and Active Power Factor Correction (PFC) power supplies. Its Automatic Voltage Regulation (AVR) technology delivers clean and consistent AC power, protecting connected equipment and preventing costly business interruptions. This UPS system is ENERGY STAR® qualified with patented GreenPower UPS™ Bypass circuitry to save on energy costs by reducing energy consumption and heat buildup.

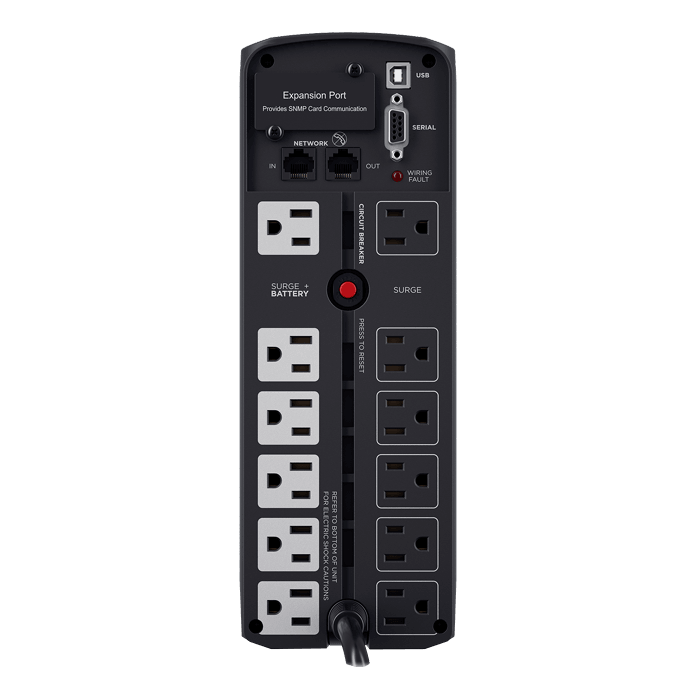

Total Outlets | 12 x NEMA 5-15R (2 Transformer-Sized) |
Protected Outlets |
6 x NEMA 5-15R (Battery and Surge) 6 x NEMA 5-15R (Surge Only) |
Plug Type | NEMA 5-15P Offset Right-Angle |
USB Charging Ports |
1 x USB-A (3.1 A) 1 x USB-C (3.1 A) |
SmartSlot Interface | No |
Coax Protection | No |
Data Line Protection | RJ45 |
Communications |
Serial via DE-9/DB-9 USB via Type-B |
Emergency Power Off (EPO) Support | No |
Topology | Line Interactive |
Transfer Time | 4 ms |
Power | |
Surge Energy Rating | 1445 Joules |
Maximum Wattage | 1000 W |
Nominal Input Voltage | 120 VAC |
Input Voltage Range | 88 to 144 VAC |
Input Frequency | 60 Hz ± 3 Hz |
Nominal Output Voltage | 120 VAC |
Output Frequency | 60 Hz ± 1% |
Load Capacity | 1500 VA |
Waveform | Sine Wave |
Battery | |
Battery Capacity | 108 VAh |
Chemistry | Lead-Acid |
Full-Load Runtime | 2.5 Minutes |
Half-Load Runtime | 10 Minutes |
Recharge Time | 8 Hours |
User Replaceable | Yes |
Replacement Battery | RB1290X2 |
Hot-Swap Support | Yes |
External Battery Connection | No |
Environmental | |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Operating Humidity | 0 to 95% |
Operating Altitude | 0 to 10,000' / 0.00 to 3048 m |
Certifications |
RoHS *as per Manufacturer |
Physical | |
Cable Length | 5' / 1.52 m |
Rackmount Size | No |
Dimensions (W x H x D) | 3.9 x 11 x 14" / 9.91 x 27.94 x 35.56 cm |
Weight | 24.9 lb / 11.29 kg |
Packaging Info | |
Package Weight | 26.2 lb |
Box Dimensions (LxWxH) | 17.5 x 15.2 x 7.3" |
