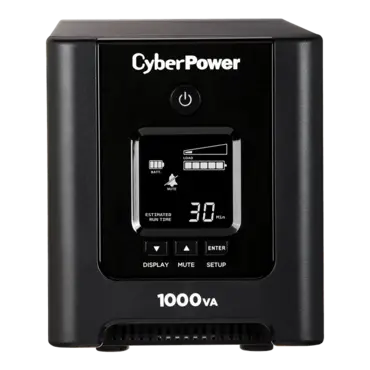

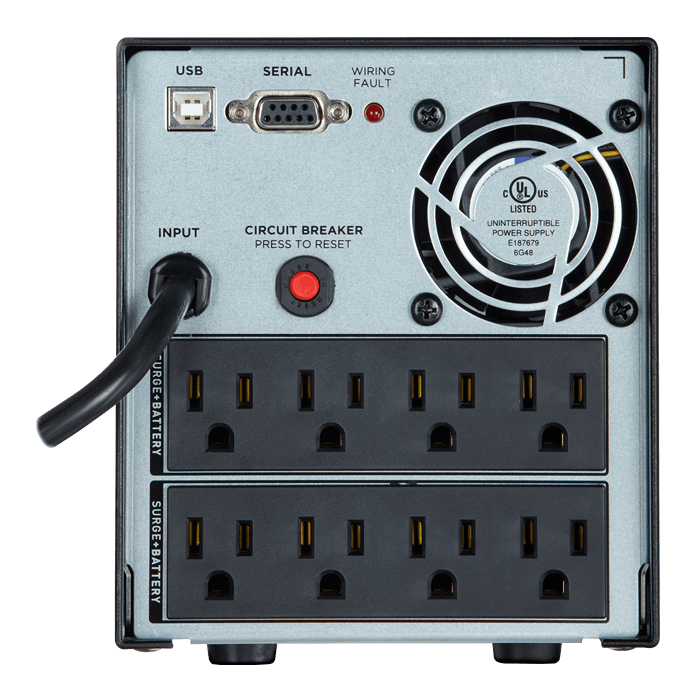

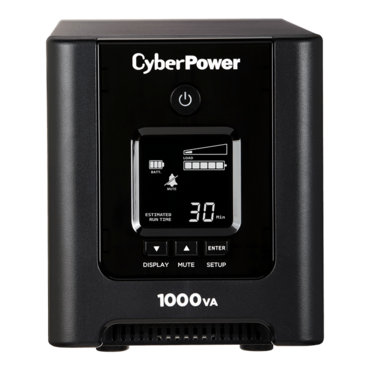

PFC Sinewave OR1000PFCLCD, LCD, 1000 VA/700 W, Sine Wave, Tower UPS

Quantity:
  • SKU: 9633447
  • Manufacturer: CYBERPOWER SYSTEMS
  • MPN: OR1000PFCLCD
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$328.95
Quantity:
  • Capacity: 1000 VA / 700 W
  • Topology: Line-Interactive
  • Waveform: Sine Wave
  • Output: 120 VAC ± 5%
  • Plug type & cord: NEMA 5-15P, 6 ft. cord
  • Outlet types: 8 x NEMA 5-15R
  • Communication: USB, Serial
  • Management software: PowerPanel Business Edition
  • Warranty: 3 year
General
UPS Topology Line Interactive
Energy Saving GreenPower UPS™ Bypass
Input
Voltage 120 VAC
Input Voltage Range 78 VAC – 142 VAC
Frequency 50/60 Hz +/- 3 Hz
Plug Type NEMA 5-15P
Plug Style Straight
Cord Length 6 ft
Output
VA 1000
Watts 700
On Battery Voltage 120 VAC ± 5%
On Battery Frequency 50/60 Hz ± 1%
On Battery Waveform Sine Wave
Output Power Factor 0.7
Automatic Voltage Regulation (AVR) Boost +18% / Buck -18%
Outlet Type NEMA 5-15R
Outlets – Total 8
Outlets – Battery & Surge Protected 8
Overload Protection Internal Circuitry Limiting

Circuit Breaker

Typical Transfer Time 4 ms
Battery
Runtime at Half Load 16 minutes
Runtime at Full Load 6 minutes
Battery Type Sealed Lead-Acid
Battery Size 12V/8.5Ah
User Replaceable Yes
Hot-Swappable Yes
Replacement Battery TBD
Battery Quantity 2
Typical Recharge Time 8 hours
Surge Protection & Filtering
Surge Suppression 1,030 Joules
EMI/RFI Filteration Yes
Management & Communications
Multifunction LCD Panel Yes
LED Indicators Power On
HID Compliant USB Port Yes
Serial Port Yes
Cable Included USB cable
Management Cable USB Cable, Serial Cable
Audible Alarms On Battery

Low Battery

Overload

Fault

Software PowerPanel® Business Edition
Physical
Form Factor Mini-Tower
Dimensions – W×H×D (in.) 5.4 × 6.4 × 13.8
Weight (lbs) 24.7
Shipping weight (lbs) 27.1
Shipping Dimensions – W×H×D (in.) 10.4 x 11.2 x 18.8
Environmental
Operating Temperature 32°F – 104°F (0°C – 40°C)
Operating Humidity 0% – 90% (non-condensing)
Storage Temperature 5°F – 113°F (-15°C – 45 °C)
Maximum Storage Elevation 9,843 ft (3,000 m)
Maximum Operating Elevation 50,000 ft (15,000 m)
Certifications
Safety UL1778 4th

cUL 107.3-05

FCC DOC Class B

Environmental RoHS Compliant
Warranty
Product Warranty 3 Years Limited
Connected Equipment Guarantee Lifetime
