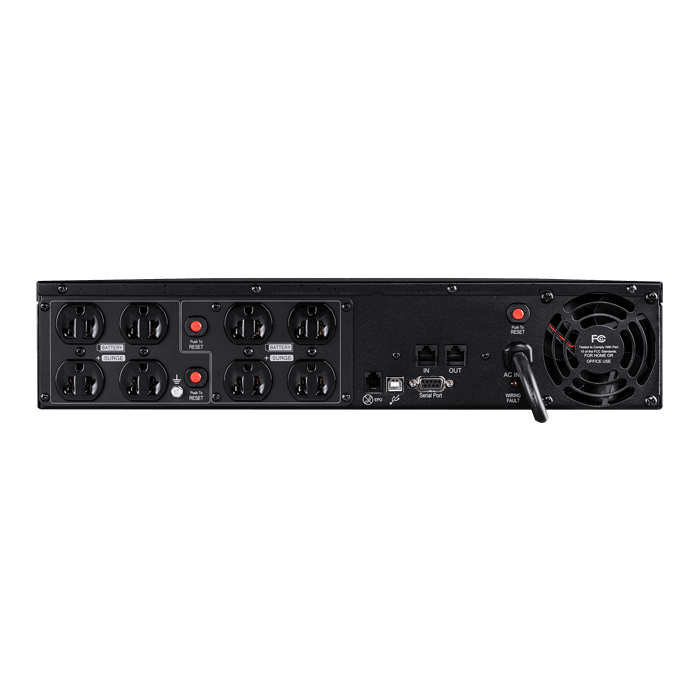

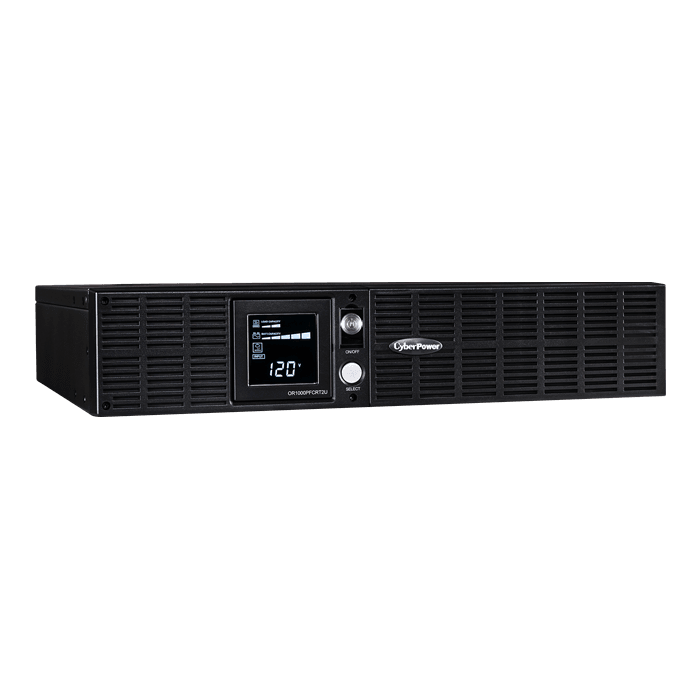

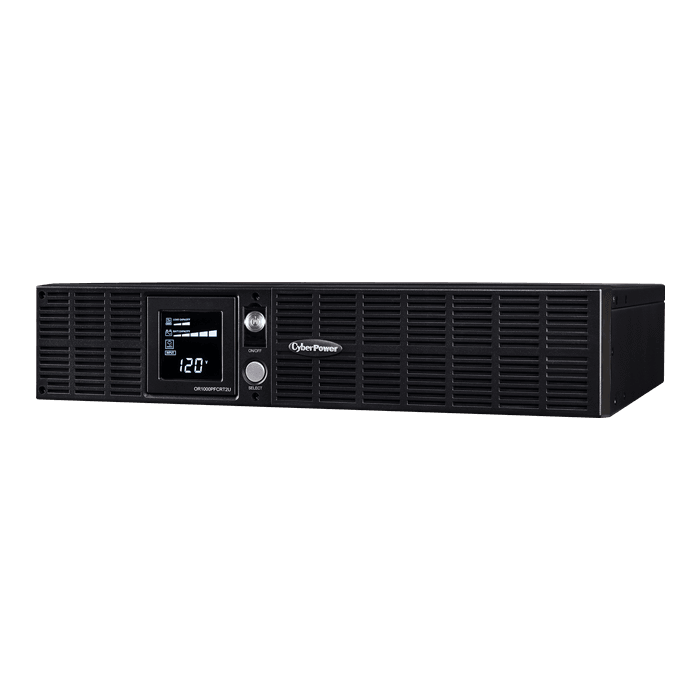

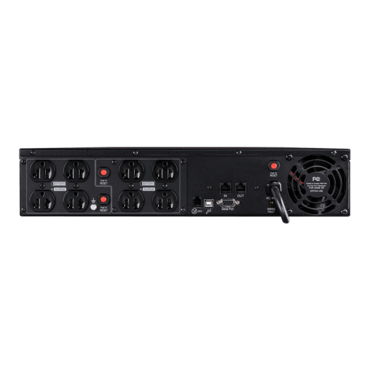

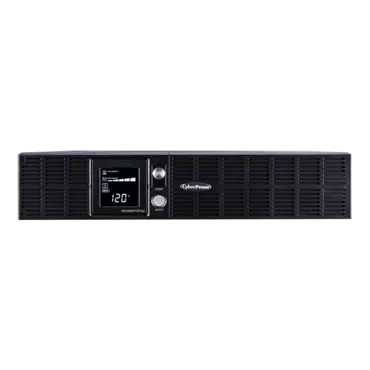

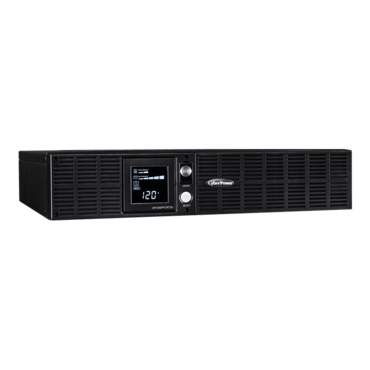

PFC Sinewave OR1000PFCRT2U, LCD, 1000 VA/700 W, Sine Wave, 2U Rackmount/Tower UPS
8 outlet SINE WAVE AVR LCD RACK/TOWER, 1000VA/700W UPS PFC
8 outlet SINE WAVE AVR LCD RACK/TOWER, 1000VA/700W UPS PFC
- Capacity: 1000 VA / 700 W
- Topology: Line Interactive
- Waveform: Sine Wave
- Plug type & cord: NEMA 5-15P, 10 ft. cord
- Outlet types: 8 × NEMA 5-15R
- Communication: USB, Serial, EPO
- Data line protection: Telephone, Ethernet
- Management software: PowerPanel® Business Edition
- Warranty: 3 year
General | |
UPS Topology | Line Interactive |
Energy Saving | GreenPower UPS™ Bypass |
Input | |
Voltage | 120 VAC |
Input Voltage Range | 88 – 139 VAC |
Adjustable Voltage Range | 86 – 142 VAC |
Frequency Range | 60 Hz ± 3 Hz |
Plug Type | NEMA 5-15P |
Plug Style | Right Angle, 45° Offset Right |
Cord Length | 10 ft |
Output | |
VA | 1,000 VA |
Watts | 700 W |
On Battery Voltage | 120 VAC ± 5% |
On Battery Frequency | 60 Hz ± 1% |
On Battery Waveform | Sine Wave |
Output Power Factor | 0.7 |
Automatic Voltage Regulation (AVR) | Yes, +14% |
Outlet Type | NEMA 5-15R |
Outlets – Total | 8 |
Outlets – Battery & Surge Protected | 8 |
Overload Protection | Internal Circuitry Limiting |
Transfer Time | 4 ms |
Battery | |
Runtime at Half Load | 17.9 minutes |
Runtime at Full Load | 6.6 minutes |
Battery Type | Sealed Lead-Acid |
Battery Size | 12V/9Ah |
Battery Quantity | 2 |
Battery Voltage | 24V |
Hot-Swappable | Yes |
User Replaceable | Yes |
Typical Recharge Time | 10 hours |
Replacement Battery Cartridge | RB1290X2C |
Replacement Battery Cartridge Quantity | 1 |
Surge Protection & Filtering | |
Surge Suppression | 1,470 J |
Phone RJ11 / Ethernet RJ45 | 1-In, 1-Out (10/100) |
EMI/RFI Filtration | Yes |
Management & Communications | |
Multifunction LCD Panel | Yes |
HID Compliant USB Port | Yes |
Serial Port | Yes |
Emergency Power Off (EPO) Port | Yes |
Cables Included | USB Cable |
LED Indicators |
Power On
Wiring Fault |
Audible Alarms |
On Battery
Low Battery Overload |
Software | PowerPanel® Business Edition |
Remote Management Card | None |
Physical | |
Form Factor | Rack/Tower |
Rack Size | 2U |
Dimensions – W×H×D (in) | 17.01 × 3.5 × 15.32 inches |
Weight (lbs) | 37.4 lbs |
Environmental | |
Operating Temperature | 32 – 104 °F (0 – 40 °C) |
Operating Humidity | 0 – 90% (non-condensing) |
Maximum Operating Elevation | 0 – 10000 feet (0 – 3000 meters) |
Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
Storage Humidity | 0 – 95% (non-condensing) |
Maximum Storage Elevation | 0 – 50000 feet (0 – 15000 meters) |
Audible Noise @ 1.5m | 48.5 dBA |
On Line Thermal Dissipation | 70.3 BTU/hr |
On Battery Thermal Dissipation | 447.6 BTU/hr |
Certifications | |
Safety |
UL 5th
cUL FCC Class A |
Environmental | RoHS Compliant |
Warranty | |
Product Warranty | 3 Years Limited |
Connected Equipment Guarantee | Lifetime |
